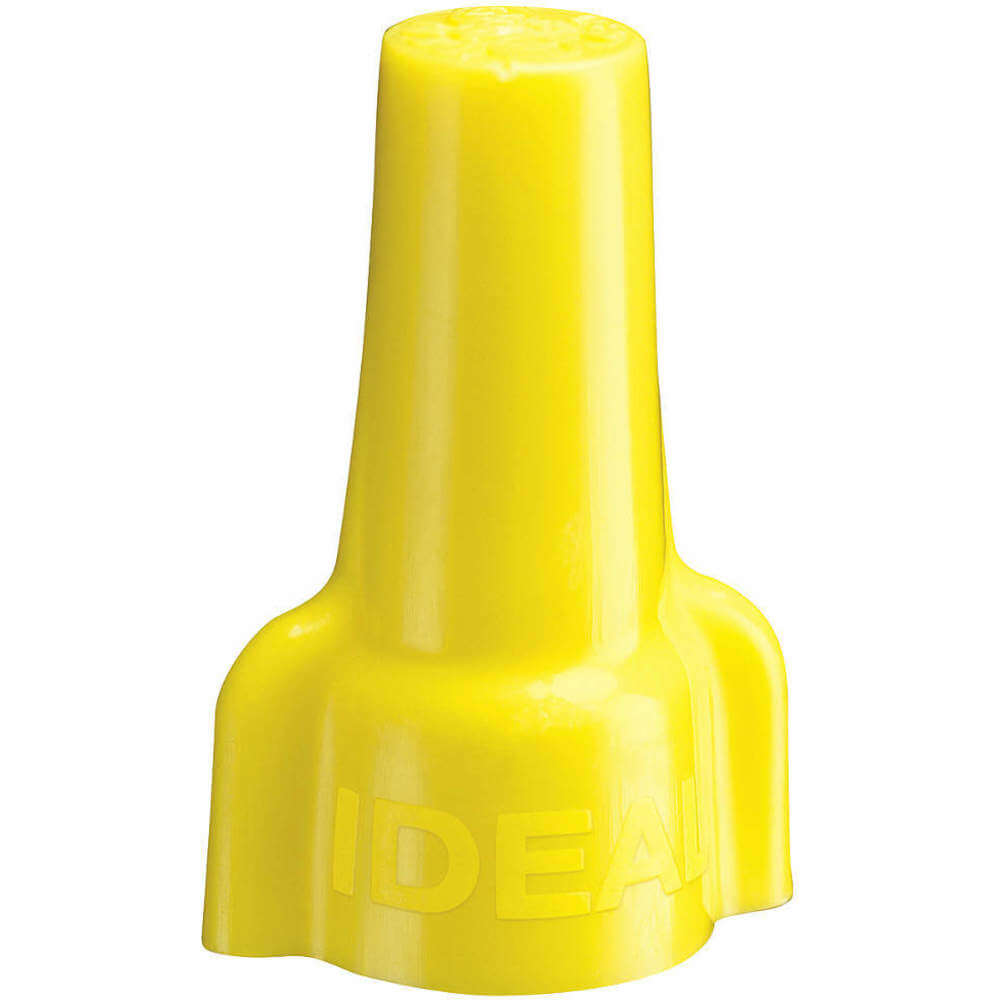

IDEAL 30-451 Wire Connector Nut 451 Yellow
Item: AF2WLEModel: 30-451Cross Ref: 6YH58
7 In Stock
Ships within 2 days via
10.00% off
€31.30 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Twist On Wire Connector |
| Color | Yellow |
| Connector Type | 451 |
| Contact Material | Steel |
| Flammability Rating | V-2 |
| For Conductor Material | Copper |
| Height | 1.06" |
| Insulation Material | Thermoplastic Polyester |
| Max. Conductors | 4 |
| Max. Voltage | 600V |
| Max. Wire Combination | Min. 2 #18 - Max. 3 #12 |
| Maximum Operating Temperature | 221°F |
| Maximum Single Wire Size | 10 AWG |
| Maximum Wire Combination | (3) 12 AWG |
| Min. Wire Combination | (2) 18 AWG |
| Minimum Single Wire Size | 18 AWG |
| Minimum Wire Combination | (2) 18 AWG |
| Outside Diameter | 0.48" |
| Overall Height | 1.03" |
| Overall Width | 0.69" |
| Rohs Compliant | Yes |
| Special Features | Copolymer Shell Expands For Smooth, Progressive Tightening Providing Dependable Connections, High-Leverage, Contoured Wing Design Provides Superior Torque On Every Twist, Removable For Repeat Usage, Wide Range, Live-Action Spring Handles Small Combinations And Expands To Accommodate Large Combinations |
| Strip Length | 3/8" |
| Type | Twist-On |
| Width | 0.69" |
| Wire Connector Style | Wing |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 7.87 |
| HS code | 8546900000 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Wire Combination | Type | For Conductor Material | Maximum Single Wire Size | Minimum Single Wire Size | Wire Connector Style | Overall Height | Overall Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
30-244J | Min. 2 #18 - Max. 4 #10 | Contoured Wing | Copper | 8 AWG | 22 AWG | Wing | 1 1/4" | 0.94" | 250 | €94.57 | |
 |
30-454 | Min. 3 #12 - Max. 1 #6 & 2 #8 | Twist-On | Copper | 6 AWG | 14 AWG | Wing | 1.45" | 1 1/5" | 25 | €28.97 | |
 |
30-073J | Min. 1 #18 & 1 #20 - Max. 2 #14 | Twist-On | - | - | - | - | - | - | 300 | €63.35 | |
 |
30-074J | Min. 2 #18 - Max. 4 #14 & 1 #18 | Twist-On | Copper | 12 AWG | 18 AWG | Standard | 0.95" | 0.55" | 175 | €39.83 | |
 |
30-076J | Min. 2 #14 & Max. 4 #12 | Twist-On | Copper | 6 AWG | 18 AWG | Standard | 1.06" | 0.59" | 150 | €56.29 | |
 |
30-241J | Min. 3 #22 - Max. 3 #10 | Twist-On | - | - | - | - | - | - | 150 | €55.43 | |
 |
30-451J | Min. 2 #18 - Max. 3 #12 | Twist-On | Copper | 10 AWG | 18 AWG | Wing | 1.03" | 0.69" | 225 | €65.65 |
