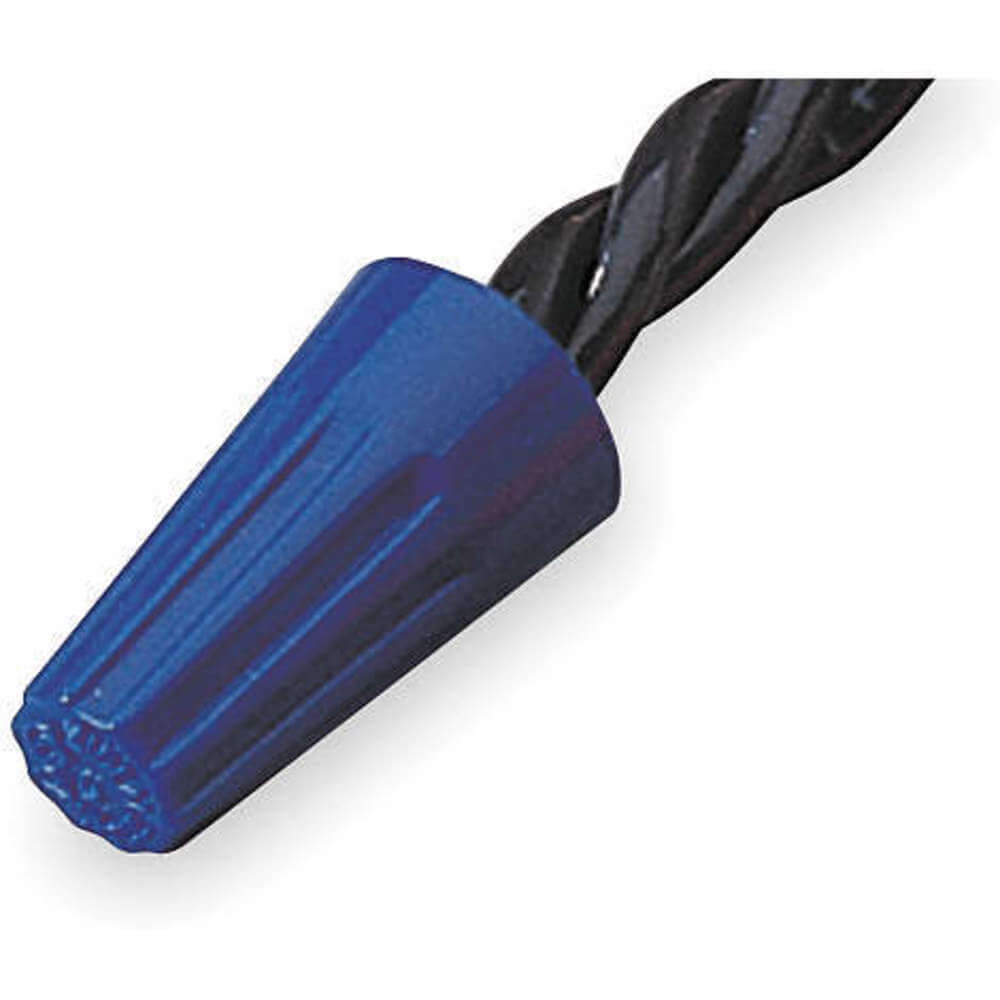

IDEAL 30-072 Wire Connector 72b Blue
Item: AF2WKTModel: 30-072Cross Ref: 6YH35
7 In Stock
Ships within 2 days via
10.00% off
€18.85 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Twist On Wire Connector |
| Color | Blue |
| Connector Type | 72B |
| Contact Material | Steel |
| Flammability Rating | V-2 |
| For Conductor Material | Copper |
| Insulation Material | Thermoplastic |
| Max. Conductors | 5 |
| Max. Voltage | 300V AC |
| Max. Wire Combination | Min. 2 #22 - Max. 3 #16 |
| Maximum Operating Temperature | 221°F |
| Maximum Single Wire Size | 14 AWG |
| Maximum Voltage | 300V |
| Maximum Wire Combination | (3) 16 AWG |
| Min. Wire Combination | (2) 22 AWG |
| Minimum Single Wire Size | 22 AWG |
| Minimum Wire Combination | (2) 22 AWG |
| Overall Height | 0.7" |
| Overall Width | 0.39" |
| Special Features | Fixed, Square-Wire Spring For A Grip That Will Last, Positive Grip Shell That Is Perfect To Twist-On With Fingers |
| Standards | Ce, Csa Certified, Ul Listed |
| Type | Twist-On |
| Width | 0.39" |
| Wire Connector Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 6.6 |
| HS code | 8546900000 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Wire Combination | Type | For Conductor Material | Maximum Single Wire Size | Minimum Single Wire Size | Wire Connector Style | Overall Height | Overall Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
30-244J | Min. 2 #18 - Max. 4 #10 | Contoured Wing | Copper | 8 AWG | 22 AWG | Wing | 1 1/4" | 0.94" | 250 | €94.57 | |
 |
30-454 | Min. 3 #12 - Max. 1 #6 & 2 #8 | Twist-On | Copper | 6 AWG | 14 AWG | Wing | 1.45" | 1 1/5" | 25 | €28.97 | |
 |
30-073J | Min. 1 #18 & 1 #20 - Max. 2 #14 | Twist-On | - | - | - | - | - | - | 300 | €63.35 | |
 |
30-074J | Min. 2 #18 - Max. 4 #14 & 1 #18 | Twist-On | Copper | 12 AWG | 18 AWG | Standard | 0.95" | 0.55" | 175 | €39.83 | |
 |
30-076J | Min. 2 #14 & Max. 4 #12 | Twist-On | Copper | 6 AWG | 18 AWG | Standard | 1.06" | 0.59" | 150 | €56.29 | |
 |
30-241J | Min. 3 #22 - Max. 3 #10 | Twist-On | - | - | - | - | - | - | 150 | €55.43 | |
 |
30-451J | Min. 2 #18 - Max. 3 #12 | Twist-On | Copper | 10 AWG | 18 AWG | Wing | 1.03" | 0.69" | 225 | €65.65 |
