IDEAL Wire Connector
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U| Style | Model | Max. Wire Combination | Type | For Conductor Material | Maximum Single Wire Size | Minimum Single Wire Size | Wire Connector Style | Overall Height | Overall Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 30-073J | Min. 1 #18 & 1 #20 - Max. 2 #14 | Twist-On | - | - | - | - | - | - | 300 | €63.35 | |
| B | 30-073 | Min. 1 #18 & 1 #20 - Max. 2 #14 | Twist-On | Copper | 14 AWG | 22 AWG | Standard | 0.86" | 11/25" | 100 | €25.21 | |

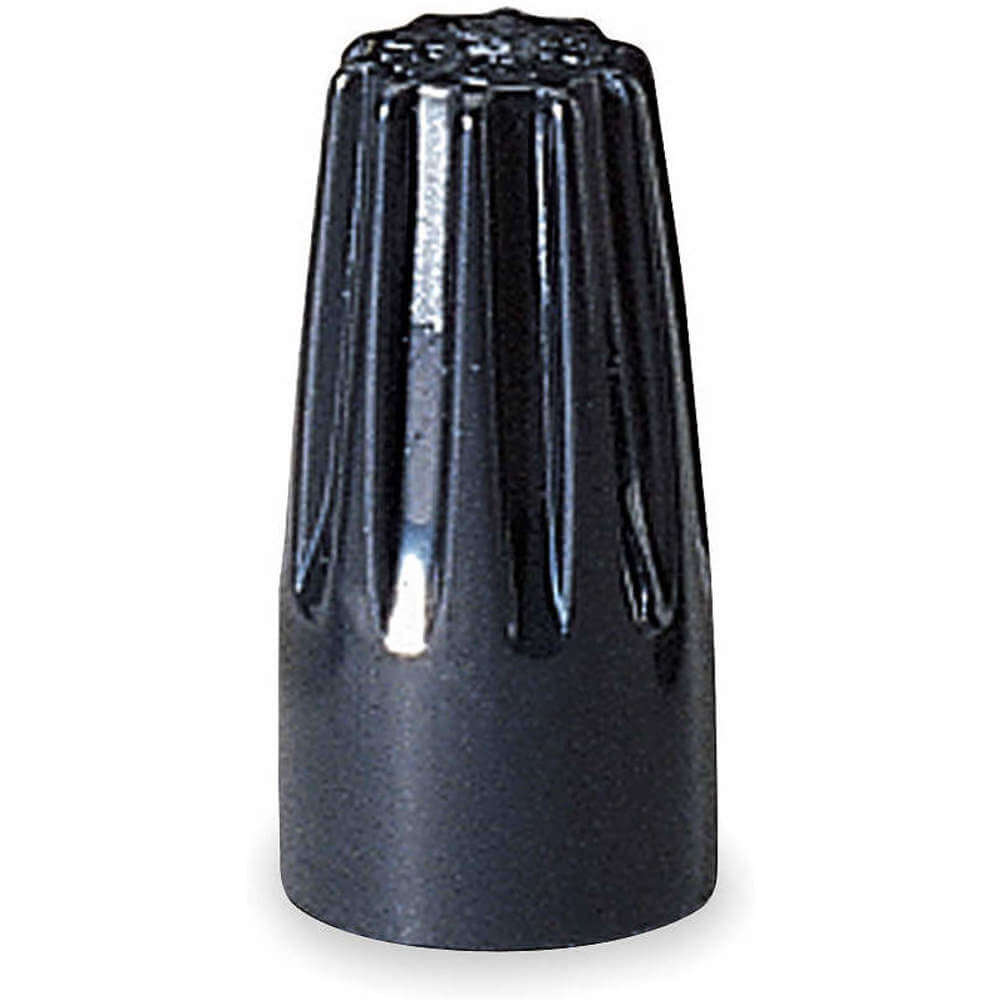

| C | 30-3629 | Min. 1 #18 & 1 #20 - Max. 2 #14 | High Temp. | Copper | 14 AWG | 22 AWG | Standard | 0.86" | 11/25" | 100 | €24.56 | |

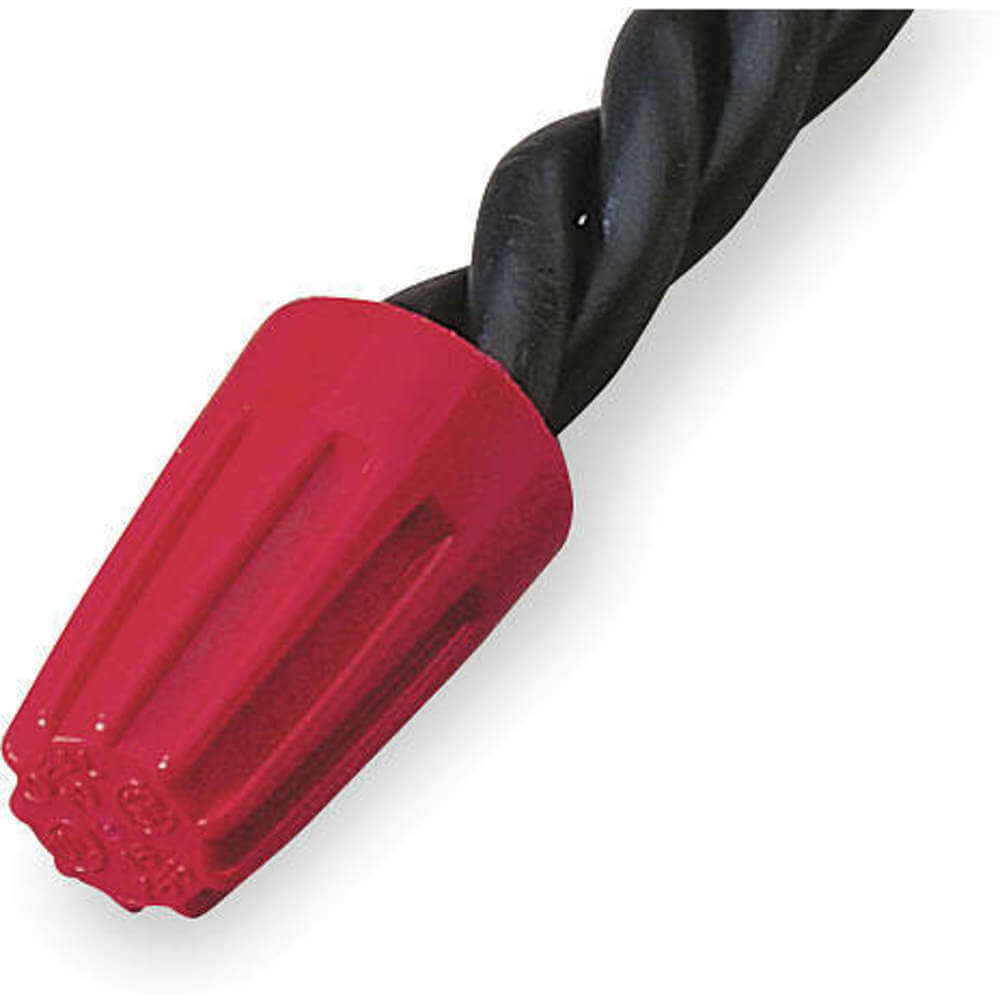

| D | 30-076 | Min. 2 #14 & Max. 4 #12 | Twist-On | Copper | 6 AWG | 18 AWG | Standard | 1.06" | 0.59" | 100 | €40.86 | |
| E | 30-076J | Min. 2 #14 & Max. 4 #12 | Twist-On | Copper | 6 AWG | 18 AWG | Standard | 1.06" | 0.59" | 150 | €56.29 | |

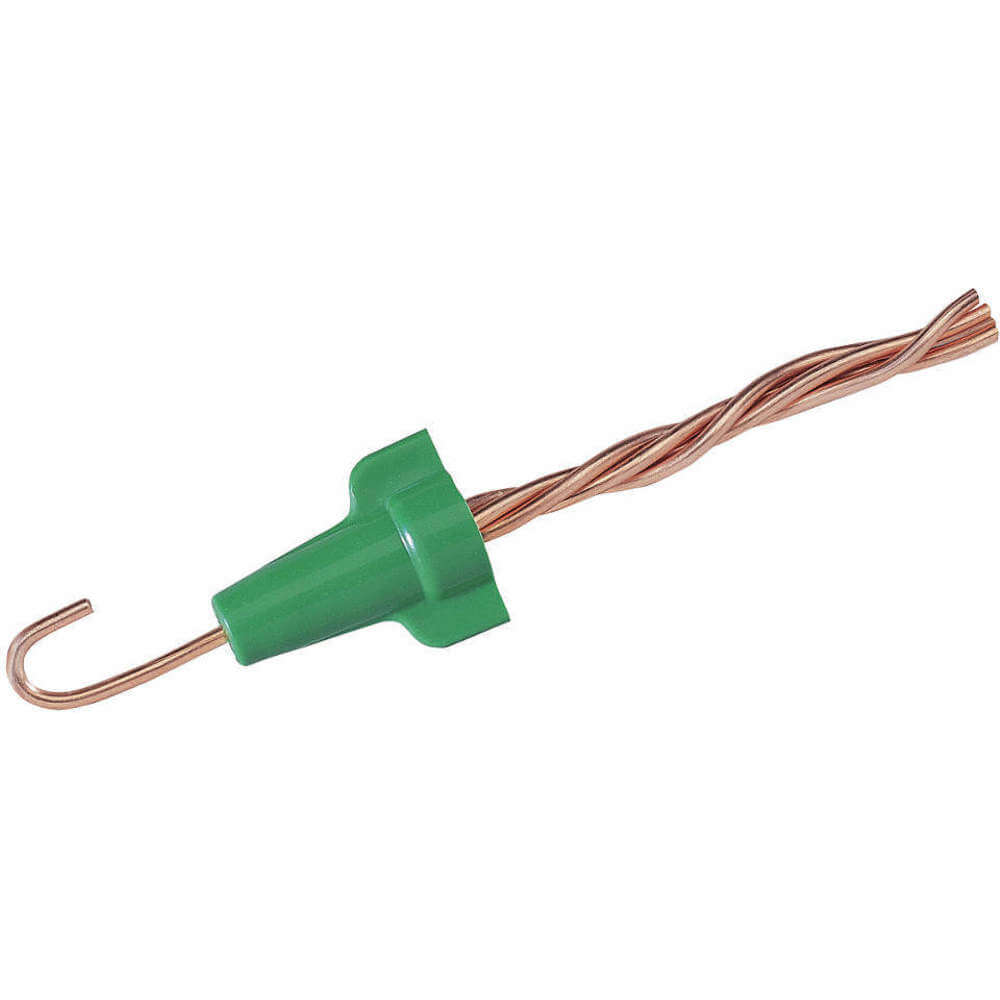

| F | 30-092 | Min. 2 #14 - Max. 3 #12 & 1 #14 | Greenie Grounding Connector | Copper | 10 AWG | 14 AWG | Wing | 1 4/25" | 0.91" | 100 | €55.48 | |
| G | 30-451 | Min. 2 #18 - Max. 3 #12 | Twist-On | Copper | 10 AWG | 18 AWG | Wing | 1.03" | 0.69" | 100 | €34.78 | |
| H | 30-451J | Min. 2 #18 - Max. 3 #12 | Twist-On | Copper | 10 AWG | 18 AWG | Wing | 1.03" | 0.69" | 225 | €65.65 | |
| I | 30-244J | Min. 2 #18 - Max. 4 #10 | Contoured Wing | Copper | 8 AWG | 22 AWG | Wing | 1 1/4" | 0.94" | 250 | €94.57 | |
| J | 30-165 | Min. 2 #18 - Max. 4 #10 | Twister Aluminum To Copper | Aluminum, Copper | 10 AWG | 18 AWG | Wing | 1.69" | 0.81" | 25 | €209.51 | |
| K | 30-452 | Min. 2 #18 - Max. 4 #10 | Twist-On | Copper | 8 AWG | 18 AWG | Wing | 1.21" | 23/25" | 100 | €47.89 | |
| L | 30-452J | Min. 2 #18 - Max. 4 #10 | Twist-On | Copper | 8 AWG | 18 AWG | Wing | 1.21" | 23/25" | 300 | €113.36 | |
| M | 30-074J | Min. 2 #18 - Max. 4 #14 & 1 #18 | Twist-On | Copper | 12 AWG | 18 AWG | Standard | 0.95" | 0.55" | 175 | €39.83 | |
| N | 30-074 | Min. 2 #18 - Max. 4 #14 & 1 #18 | Twist-On | Copper | 12 AWG | 18 AWG | Standard | 0.95" | 0.55" | 100 | €30.17 | |

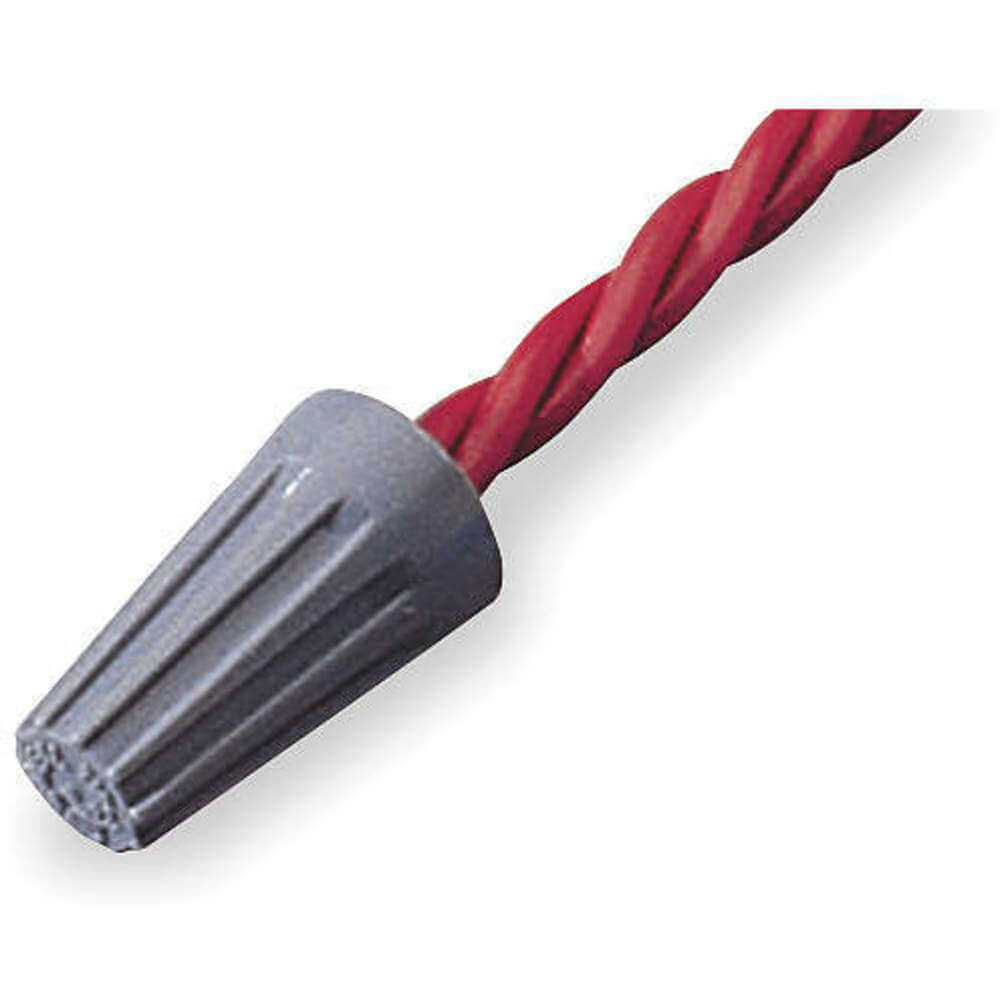

| O | 30-071 | Min. 2 #22 (Standard) - Max. 2 #16 | Twist-On | - | - | - | - | - | - | 100 | €21.05 | |

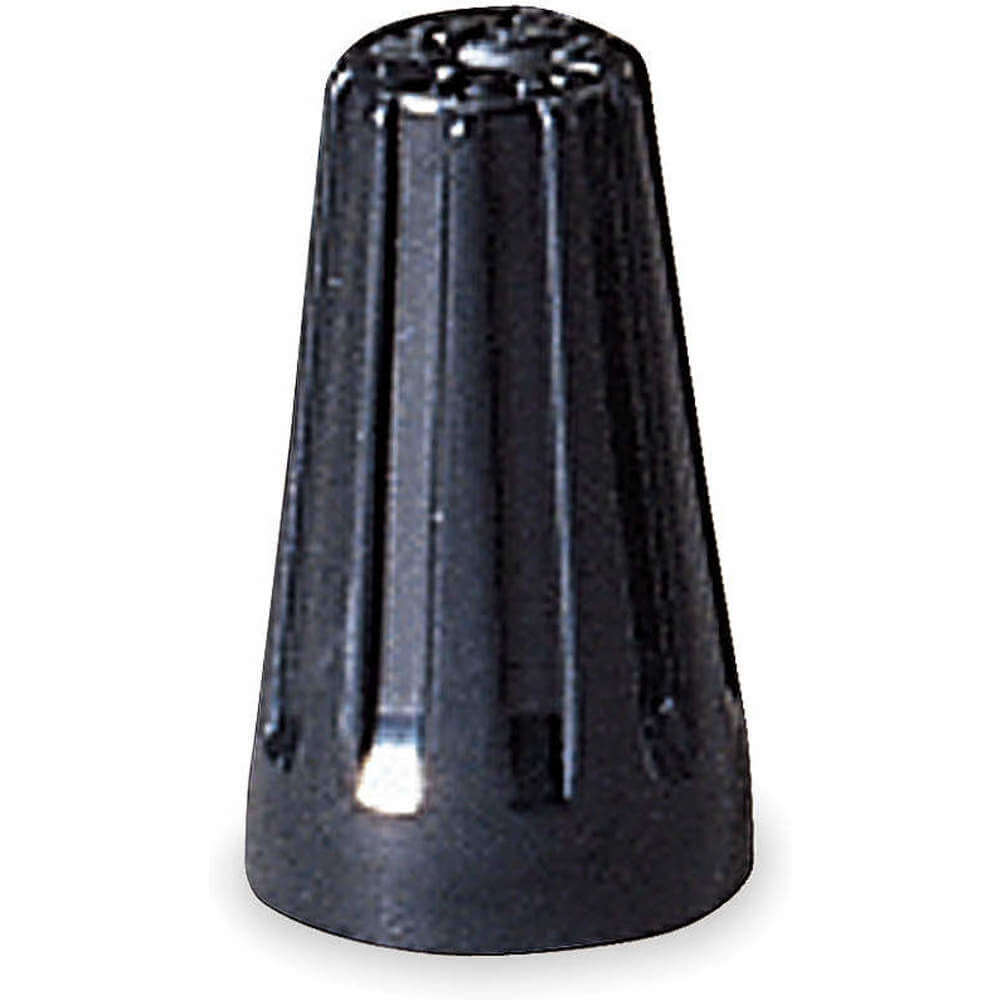

| P | 30-3627 | Min. 2 #22 (Stranded) - Max. 2 #16 | High Temp. | Copper | 16 AWG | 22 AWG | Standard | 0.58" | 0.33" | 100 | €21.22 | |

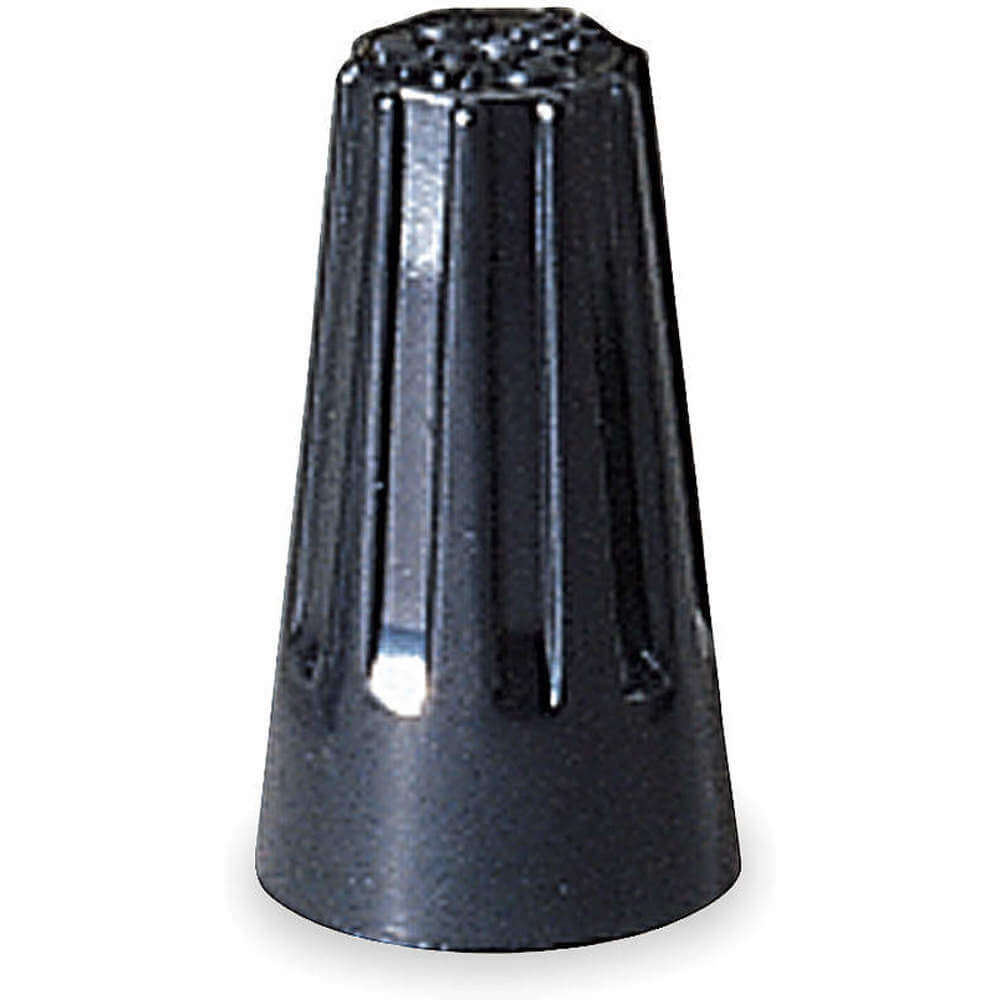

| Q | 30-3628 | Min. 2 #22 - Max. 3 #16 | High Temp. | Copper | 14 AWG | 22 AWG | Standard | 0.7" | 0.39" | 100 | €20.89 | |
| R | 30-072 | Min. 2 #22 - Max. 3 #16 | Twist-On | Copper | 14 AWG | 22 AWG | Standard | 0.7" | 0.39" | 100 | €20.95 | |
| S | 30-454 | Min. 3 #12 - Max. 1 #6 & 2 #8 | Twist-On | Copper | 6 AWG | 14 AWG | Wing | 1.45" | 1 1/5" | 25 | €28.97 | |
| T | 30-342 | Min. 3 #14 - Max. 2 #8 & 2 #12 | Twist-On | Copper | 6 AWG | 18 AWG | Wing | 1.3" | 1" | 50 | €43.07 | |
| U | 30-241J | Min. 3 #22 - Max. 3 #10 | Twist-On | - | - | - | - | - | - | 150 | €55.43 |
