Gates Tapered And Qd Bushings

GATES -

3030 Type Taper Lock Bushings

A

Style	Model	Bore Dia.	Keyway Size	Bolt Circle Dia.	Overall Length	Type	Taper	Price
A	3030 1.11/16	1 11/16"	0.39" x 0.2"	4"	3"	Finished Bore	8°	€98.57
A	3030 2.1/16	2 1/16"	0.51" x 0.24"	4"	3"	Finished Bore	8°	€98.57
A	3030.15/16	15/16"	6 mm x 3 mm	4"	3"	Finished Bore	8°	€93.96

GATES -

2525 Type Taper Lock Bushings

A

Style	Model	Bore Dia.	Keyway Size	Bolt Circle Dia.	Overall Length	Type	Taper	Price
A	2525 1.1/2	1 1/2"	0.39" x 0.2"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33
A	2525 1.1/4	1 1/4"	0.24" x 0.12"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33
A	2525 1.1/8	1 1/8"	0.24" x 0.12"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33
A	2525 1.3/4	1 3/4"	0.39" x 0.2"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33
A	2525 1.3/8	1 3/8"	0.31" x 0.16"	3 1/4"	2 1/2"	Finished Bore	8°	€66.44
A	2525 1.3/16	1 3/16"	0.24" x 0.12"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33
A	2525 1.7/8	1 7/8"	0.51" x 0.24"	3 1/4"	2 1/2"	Finished Bore	8°	€66.44
A	2525 1.7/16	1 7/16"	0.39" x 0.2"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33
A	2525 1.11/16	1 11/16"	0.39" x 0.2"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33
A	2525 1.13/16	1 13/16"	0.51" x 0.24"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33
A	2525 1.	1"	0.24" x 0.12"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33
A	2525 2.1/4	2 1/4"	0.51" x 0.24"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33
A	2525 2.3/8	2 3/8"	0.63" x 0.31"	3 1/4"	2 1/2"	Finished Bore	8°	€66.44
A	2525 2.7/16	2 7/16"	0.63" x 0.31"	3 1/4"	2 1/2"	Finished Bore	8°	€66.44
A	2525.3/4	3/4"	0.2" x 0.08"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33
A	2525.7/8	7/8"	0.2" x 0.08"	3 1/4"	2 1/2"	Finished Bore	8°	€63.33

GATES -

1310 Type Taper Lock Bushings

A

Style	Model	Bore Dia.	Bolt Circle Dia.	Overall Length	Type	Taper	Keyway Size	Price
A	1310 .13/16	-	-	-	-	-	-	€18.96
A	1310 1.5/16	1 5/16"	1 7/8"	1"	Finished Bore	8°	7.9 mm x 4 mm	€25.06

GATES -

Taper Lock Bushings

A

B

Style	Model	Overall Length	Bolt Circle Dia.	Bore Dia.	Keyway Size	Taper	Flange Type	Type	Price
A	1008 .11/16	0.875"	-	-	-	8°	Flangeless	-	-	RFQ
A	1108 .13/16	0.875"	1.453"	0.812"	-	8°	Flangeless	-	€44.65
A	1008 .9/16	0.875"	-	-	-	8°	Flangeless	-	-	RFQ
B	2012 2.1/8	1 1/4"	2 5/8"	2 1/8"	0.51" x 0.2"	8°	-	Finished Bore	€33.59	RFQ
A	1210 1.3/16	1"	-	-	-	8°	Flangeless	-	-	RFQ
B	1210 25MM	1"	1 3/4"	25 mm	0.31" x 0.13"	8°	-	Finished Bore	€23.68
A	1610 .9/16	1"	-	-	-	8°	Flangeless	-	-	RFQ
A	1615.11/16	1.5"	-	-	-	8°	Flangeless	-	-	RFQ
A	1615.5/8	1.5"	-	-	-	8°	Flangeless	-	-	RFQ
A	1615 1.9/16	1.5"	-	-	-	8°	Flangeless	-	-	RFQ
A	1615.9/16	1.5"	-	-	-	8°	Flangeless	-	-	RFQ
A	1615.1/2	1.5"	-	-	-	8°	Flangeless	-	-	RFQ
A	1615 1.1/16	1.5"	2 1/8"	1.062"	-	8°	Flangeless	-	-	RFQ
A	1615 1.5/16	1.5"	-	-	-	8°	Flangeless	-	-	RFQ
A	1615 1.11/16	1.5"	-	-	-	8°	Flangeless	-	-	RFQ
A	2012 .11/16	1.25"	-	-	-	8°	Flangeless	-	-	RFQ
A	2012 .9/16	1.25"	-	-	-	8°	Flangeless	-	-	RFQ
A	2517 2.5/16	1.75"	-	-	-	8°	Flangeless	-	€82.36
A	2517 1.9/16	1.75"	-	-	-	8°	Flangeless	-	-	RFQ
A	2517 1.1/16	1.75"	-	-	-	8°	Flangeless	-	€82.36
A	3020 1.	2"	4"	-	-	8°	Flangeless	-	-	RFQ
A	3020 1.1/8	2"	-	-	-	8°	Flangeless	-	-	RFQ
A	3020 3.	2"	4"	3"	-	8°	Flangeless	-	-	RFQ
A	3020 1.5/16	2"	-	-	-	8°	Flangeless	-	-	RFQ
A	3020 1.1/4	2"	4"	1 1/4"	-	8°	Flangeless	-	-	RFQ

GATES -

P Type Quick Disconnect Bushings

A

Style	Model	Bore Dia.	Keyway Size	Bolt Circle Dia.	Overall Length	Flange Thickness	Type	Price
A	P 3.15/16	3 15/16"	0.98" x 0.51"	10"	9 3/8"	1 3/4"	Finished Bore	€1,465.48
A	P 5.	5"	1.26" x 0.63"	10"	9 3/8"	1 3/4"	Finished Bore	€1,732.14
A	P 6.1/2	6 1/2"	1 1/2" x 3/4"	10"	9 3/8"	1 3/4"	Finished Bore	€1,465.48

GATES -

N Type Quick Disconnect Bushings

A

Style	Model	Bore Dia.	Keyway Size	Bolt Circle Dia.	Overall Length	Flange Thickness	Type	Price
A	N 5.1/4	5 1/4"	1.26" x 0.63"	8 1/2"	8 1/8"	1 1/2"	Finished Bore	€976.97
A	N 5.1/8	5 1/8"	1.26" x 0.63"	8 1/2"	8 1/8"	1 1/2"	Finished Bore	€976.97
A	N 5.3/4	5 3/4"	1 1/2" x 3/4"	8 1/2"	8 1/8"	1 1/2"	Finished Bore	€976.97

GATES -

QD Idler Bushings

A

Style	Model	Bore Dia.	Bolt Circle Dia.	Flange Thickness	Price
A	40-IDLR-BUSH(E)	1"	5"	7/8"	€824.33
A	30-IDLR-BUSH(SF)	1"	3 7/8"	5/8"	€285.57
A	20-IDLR-BUSH(SK)	3/4"	3 5/16"	9/16"	€248.34

GATES -

SD Type Quick Disconnect Bushings

A

Style	Model	Bore Dia.	Bolt Circle Dia.	Overall Length	Flange Thickness	Type	Keyway Size	Price
A	SD 25MM	25 mm	2 11/16"	1 13/16"	0.43"	Finished Bore	0.31" x 0.13"	€45.57
A	SD 30MM	30 mm	2 11/16"	1 13/16"	0.43"	Finished Bore	0.31" x 0.13"	€45.57

GATES -

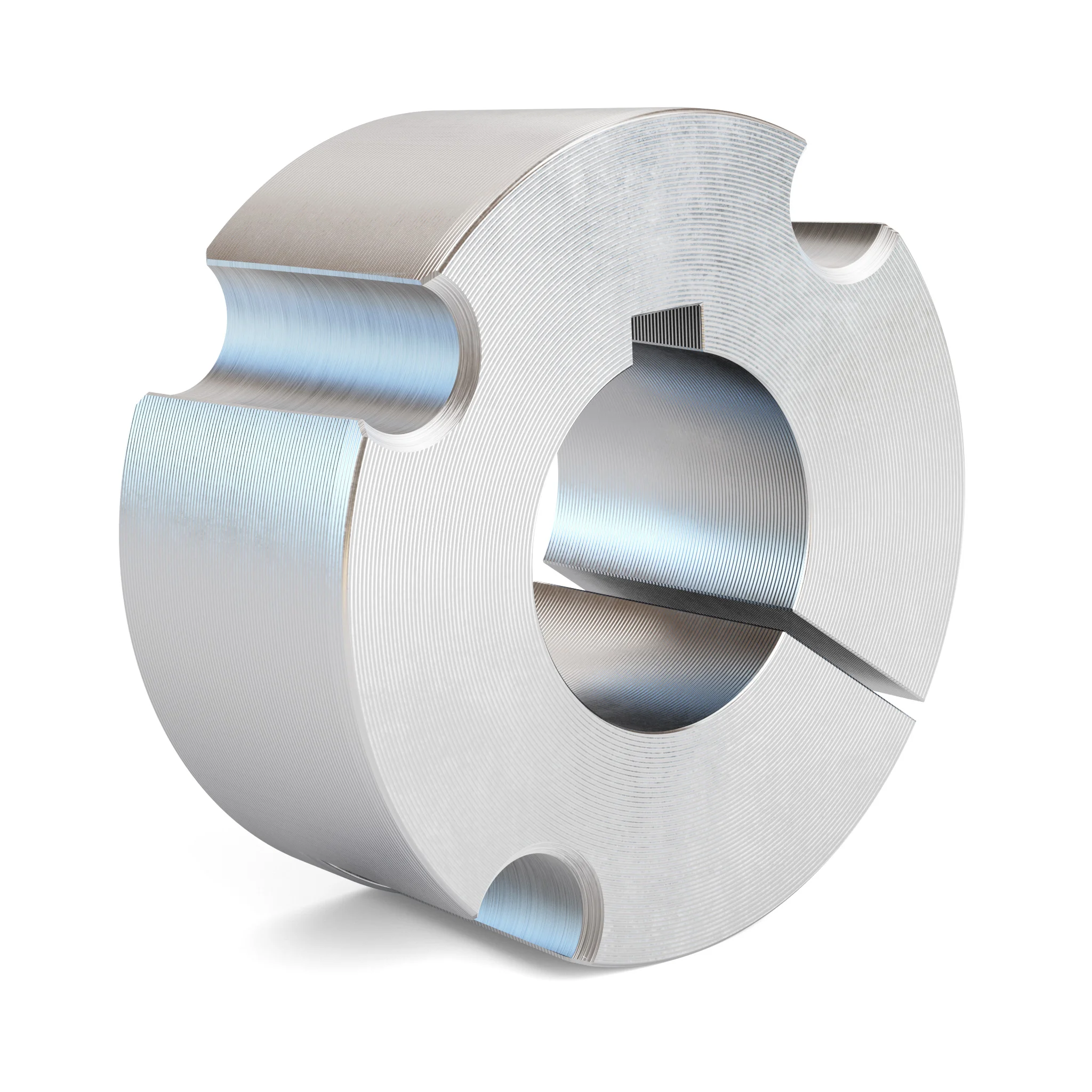

TL Idler Bushings

A

Style	Model	Bore Dia.	Overall Length	Price
A	2517-IDLR-BUSH	3/4"	3 13/16"	€380.54
A	2012-IDLR-BUSH	3/4"	3 5/16"	€312.84
A	1610-IDLR-BUSH	5/8"	2 25/32"	€259.24

GATES -

Quick Disconnect Bushings

A

Style	Model	Bore Dia.	Bolt Circle Dia.	Overall Length	Flange Thickness	Keyway Size	Type	Price
A	F 1.9/16	1 9/16"	5 5/8"	3 3/4"	1"	0.39" x 0.2"	Finished Bore	€222.46
A	M 2.1/4	2 1/4"	7 7/8"	6 3/4"	1 1/4"	0.51" x 0.24"	Finished Bore	€584.54
A	SK 2.9/16	2 9/16"	3 5/16"	1 15/16"	14/25"	0.63" x 0.31"	Finished Bore	€49.59
A	E 65MM	65 mm	5"	2.63"	3/4"	0.71" x 0.17"	Finished Bore	€126.27

GATES -

W Type Quick Disconnect Bushings

A

Style	Model	Bore Dia.	Keyway Size	Bolt Circle Dia.	Overall Length	Flange Thickness	Price
A	W 4.1/4	4 1/4"	0.98" x 0.51"	12 3/4"	11.38"	2"	€1,981.10
A	W 4.7/8	4 7/8"	1.26" x 0.63"	12 3/4"	11.38"	2"	€1,981.10
A	W 5.1/4	5 1/4"	1.26" x 0.63"	12 3/4"	11.38"	2"	€1,981.10
A	W 5.7/8	5 7/8"	1 1/2" x 3/4"	12 3/4"	11.38"	2"	€1,981.10
A	W 6.1/2	6 1/2"	1 1/2" x 3/4"	12 3/4"	11.38"	2"	€1,981.10
A	W 7.1/4	7 1/4"	1.73" x 3/4"	12 3/4"	11.38"	2"	€1,981.10

GATES -

Tl Bushing 1615 Series

A

Style	Model	Bore Dia.	Overall Length	Bolt Circle Dia.	Taper	Flange Type	Price
A	1615 1.5/8	1 5/8"	1.5"	2 1/8"	8°	Flangeless	-	RFQ
A	1615 1.	1"	1.5"	2 1/8"	8°	Flangeless	€57.28
A	1615.7/8	7/8"	1.5"	-	8°	Flangeless	€57.28

GATES -

Bushing Series 2517

A

Style	Model	Bore Dia.	Bolt Circle Dia.	Overall Length	Taper	Flange Type	Price
A	2517 1.13/16	-	3 1/4"	1.75"	8°	Flangeless	€91.51
A	2517 1.15/16	-	3 1/4"	1.75"	8°	Flangeless	-	RFQ
A	2517 1.1/2	1 1/2"	3 1/4"	1.75"	8°	Flangeless	-	RFQ
A	2517 1.1/4	1 1/4"	3 1/4"	1.75"	8°	Flangeless	-	RFQ
A	2517 1.5/8	1 5/8"	3 1/4"	1.75"	8°	Flangeless	€88.76
A	2517 1.11/16	1.688"	3 1/4"	1.75"	8°	Flangeless	-	RFQ
A	2517 2.1/2	2 1/2"	3 1/4"	1.75"	8°	Flangeless	-	RFQ
A	2517 2.3/16	2.187"	3 1/4"	1.75"	8°	Flangeless	-	RFQ
A	2517 2.7/16	2.437"	3 1/4"	1.75"	8°	Flangeless	-	RFQ
A	2517 .7/8	7/8"	3 1/4"	1.75"	8°	Flangeless	-	RFQ

GATES -

Bushing Series 2012

A

Style	Model	Bore Dia.	Bolt Circle Dia.	Overall Length	Taper	Flange Type	Price
A	2012 1.15/16	-	2 5/8"	1.25"	8°	Flangeless	-	RFQ
A	2012 1.1/4	1 1/4"	2 5/8"	1.25"	8°	Flangeless	-	RFQ
A	2012 1.7/16	1.437"	2 5/8"	1.25"	8°	Flangeless	-	RFQ
A	2012 1.11/16	1.688"	2 5/8"	1.25"	8°	Flangeless	-	RFQ
A	2012 .5/8	5/8"	2 5/8"	1.25"	8°	Flangeless	€74.39
A	2012 .7/8	7/8"	2 5/8"	1.25"	8°	Flangeless	-	RFQ

GATES -

Bushing Series 1610

A

Style	Model	Bore Dia.	Bolt Circle Dia.	Overall Length	Taper	Flange Type	Price
A	1610 1.3/8	-	2 1/8"	1"	8°	Flangeless	-	RFQ
A	1610 .15/16	0.938"	2 1/8"	1"	8°	Flangeless	€55.05
A	1610 1.1/4	1 1/4"	2 1/8"	1"	8°	Flangeless	-	RFQ
A	1610 1.	1"	2 1/8"	1"	8°	Flangeless	-	RFQ
A	1610 1.1/16	1.062"	2 1/8"	1"	8°	Flangeless	€55.05
A	1610 1.11/16	1.688"	2 1/8"	-	-	-	-	RFQ
A	1610 .3/4	3/4"	2 1/8"	1"	8°	Flangeless	€55.05
A	1610 .5/8	5/8"	2 1/8"	1"	8°	Flangeless	-	RFQ

GATES -

Stainless Steel Taper Lock Bushings

A

Style	Model	Keyway Size	Price
A	78690403	6 mm x 2.8 mm	€294.70
A	78690701	6 mm x 2.8 mm	€602.64
A	78690603	8 mm x 3.3 mm	€438.26
A	78690708	10 mm x 3.3 mm	€602.64

GATES -

Quick Detachable Bushings

A

Style	Model	Bore Dia.	Taper	Overall Length	Flange Thickness	Bolt Circle Dia.	Flange Type	Bolt Thread Length	Price
A	F 2 7/16	-	-	-	-	-	-	-	-	RFQ
A	F 1 1/2	-	3/4 in./ft.	3.625"	13/16"	-	Split	-	-	RFQ
A	F 3 1/2	-	-	-	-	-	-	-	-	RFQ
A	F 3 7/16	-	3/4 in./ft.	3.625"	13/16"	-	Split	-	-	RFQ
A	F 2 5/16	-	3/4 in./ft.	3.625"	13/16"	-	Split	-	-	RFQ
A	F 3 3/16	-	-	-	-	-	-	-	-	RFQ
A	F 3 5/8	-	3/4 in./ft.	3.625"	13/16"	-	Split	-	-	RFQ
A	F 2 7/8	-	3/4 in./ft.	3.625"	13/16"	-	Split	-	-	RFQ
A	F 3 1/4	-	3/4 in./ft.	3.625"	13/16"	-	Split	-	-	RFQ
A	F 3 3/8	-	3/4 in./ft.	3.625"	13/16"	-	Split	-	-	RFQ
A	F 1 3/4	1 3/4"	0.75 in./ft.	3.625"	13/16"	5 5/8"	Split	3 5/8"	€473.43
A	F 1 15/16	1.938"	0.75 in./ft.	3.625"	13/16"	5 5/8"	Split	3 5/8"	€434.60
A	F 2 1/4	2 1/4"	0.75 in./ft.	3.625"	13/16"	5 5/8"	Split	3 5/8"	€473.43

GATES -

Taper-Lock Bushing, 3 7/16 Inch Dia.

Model	Item	Price (ex. VAT)
5040 3.7/16	BA6PBP	€486.34

GATES -

Bushing Series 1210 Bore Diameter 0.500 In

Model	Item	Price (ex. VAT)
1210 .1/2	AB2RNJ	-	RFQ

GATES -

Bushing Series 1210 Bore Diameter 1.250 In

Model	Item	Price (ex. VAT)
1210 1.1/4	AB2RNG	-	RFQ

GATES -

Bushing Series 1008 Bore Diameter 0.875 In

Model	Item	Price (ex. VAT)
1008 .7/8	AB2RMW	-	RFQ
