GATES Quick Detachable Bushings


Filter

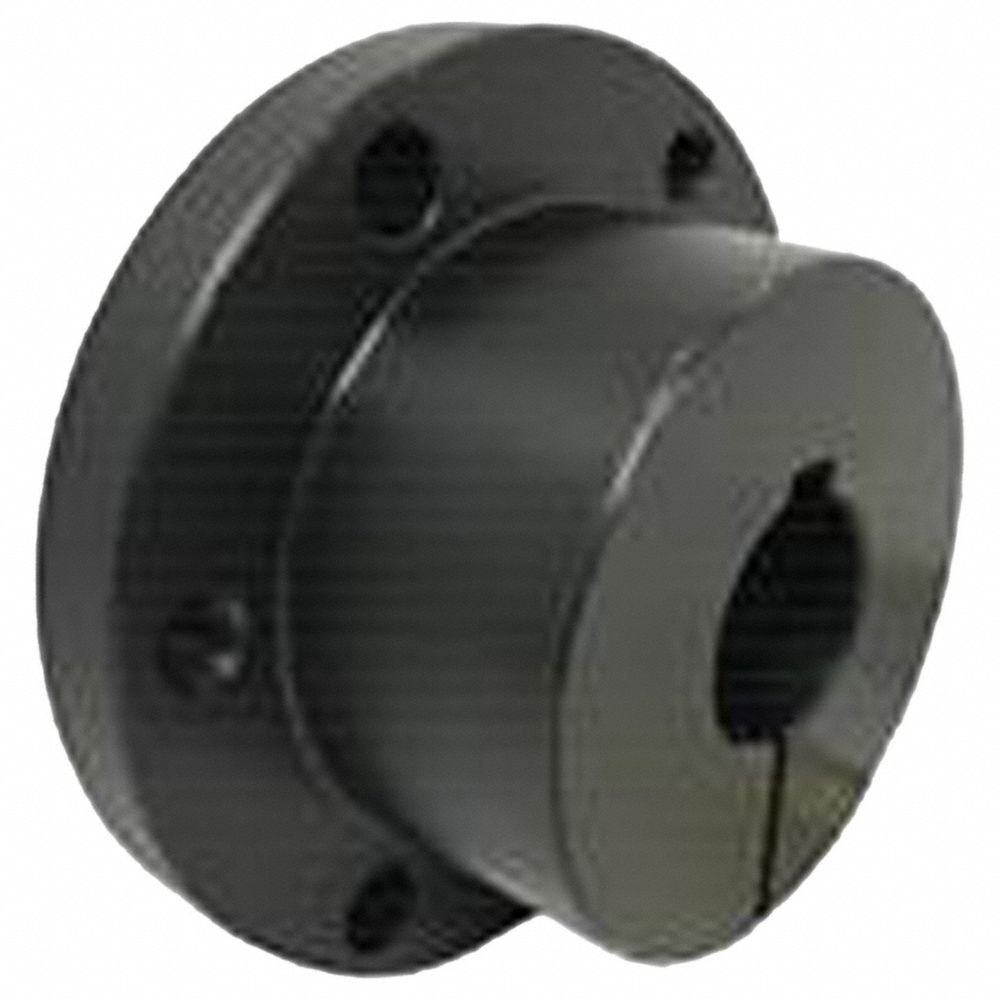

APPROVED VENDOR SFX1116A
APPROVED VENDOR SHX1316B
APPROVED VENDOR EX1516C
APPROVED VENDOR JAX12D

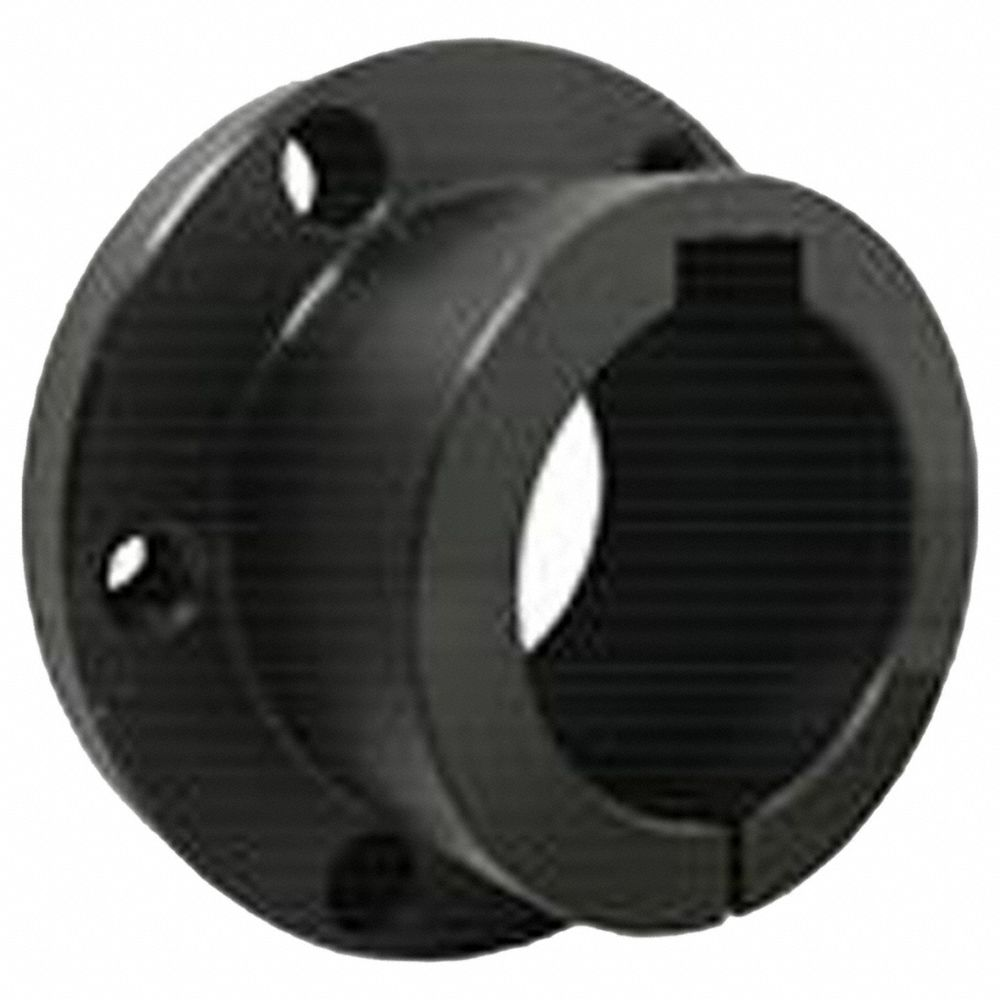

APPROVED VENDOR SHX916E
APPROVED VENDOR HX18MMF

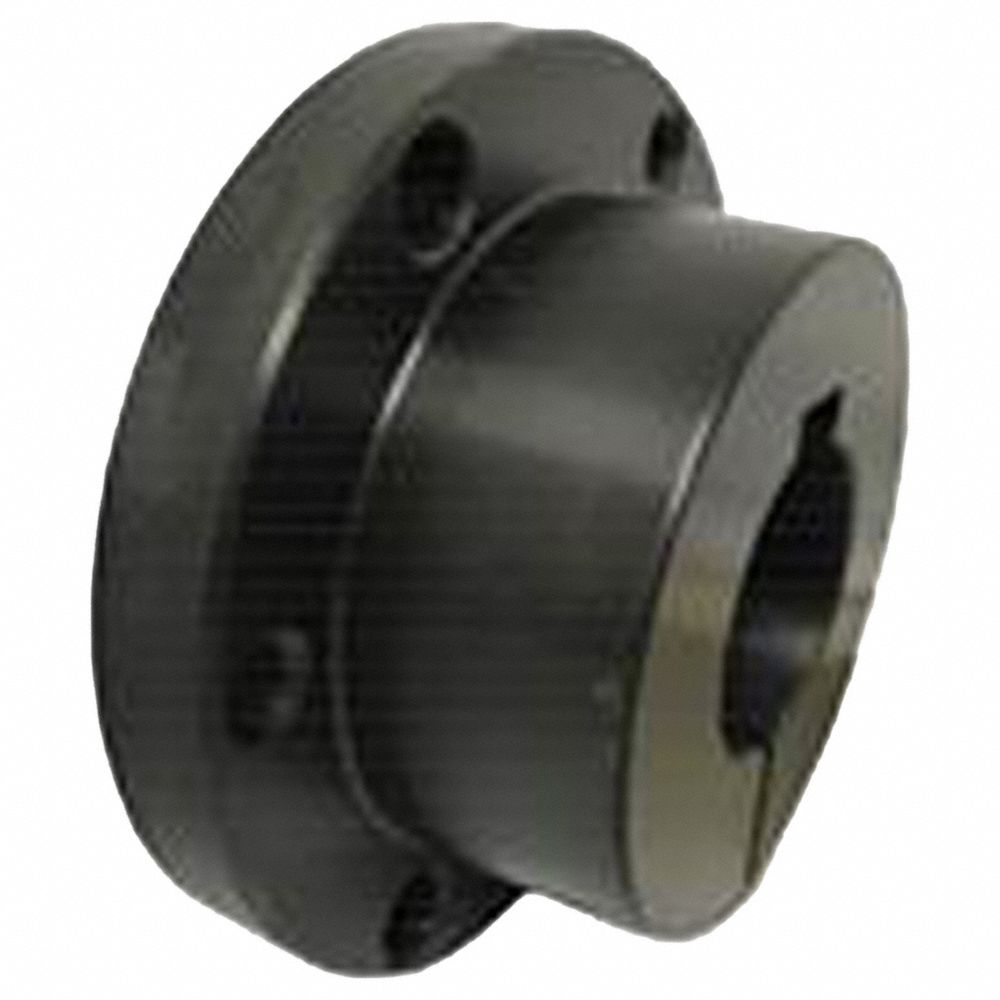

APPROVED VENDOR SDSX134G
APPROVED VENDOR SDX916H
APPROVED VENDOR SDSX1916I
APPROVED VENDOR SDSX916J
APPROVED VENDOR SFX1516K

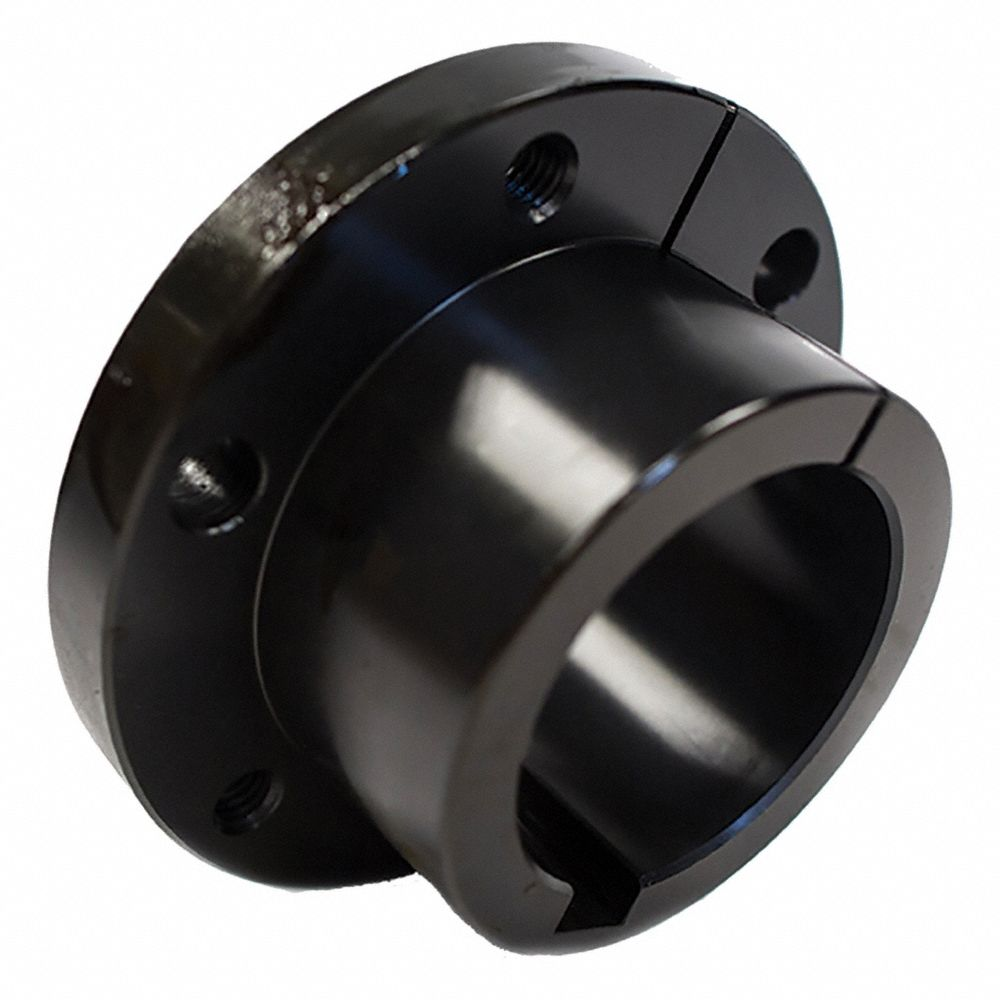

APPROVED VENDOR SFX214L
StyleModelBolt Circle Dia.Bore Dia.Overall Dia.Bore Bushing SeriesMax. TorqueLength Less FlangeTaperLarge Barrel Dia.Price
A
SFX1116		-------3 1/8"€114.44
B
SHX1316		--------€48.32
B
SHX1116		--2.688"----1.871"€48.32
C
EX1516		--------€191.90
A
SFX1516		-------3 1/8"€114.44
D
JAX12		1.66"1/2"2"JA Series1750 lbs.-in.0.688"0.75 in./ft.1 3/8"€26.53
D
JAX1116		1.66"1 1/16"2"JA Series1750 lbs.-in.0.688"0.75 in./ft.1 3/8"€26.53
D
JAX1516		1.66"15/16"2"JA Series1750 lbs.-in.0.688"0.75 in./ft.1 3/8"€26.53
D
JAX1316		1.66"1 3/16"2"JA Series1750 lbs.-in.0.688"0.75 in./ft.1 3/8"€26.53
B
SHX1916		2 1/4"1 9/16"2.688"SH Series3500 lbs.-in.7/8"0.75 in./ft.1.871"€48.32
B
SHX1516		2 1/4"1 5/16"2.688"SH Series3500 lbs.-in.7/8"0.75 in./ft.1.871"€48.32
E
SHX916		2 1/4"9/16"2.688"SH Series3500 lbs.-in.7/8"0.75 in./ft.1.871"€48.32
B
SHX11116		2 1/4"1 11/16"2.688"SH Series3500 lbs.-in.7/8"0.75 in./ft.1.871"€48.32
B
SHX1116		2 1/4"11/16"2.688"SH Series3500 lbs.-in.7/8"--€48.32
B
SHX20MM		2 1/4" , 2.25"20 mm2.688"SH Series3500 lbs.-in.0.875" , 7/8"0.75 In./Ft. , 3/4 In./Ft.1.871"€48.32
B
SHX19MM		2 1/4" , 2.25"19 mm2.688"SH Series3500 lbs.-in.0.875" , 7/8"0.75 In./Ft. , 3/4 In./Ft.1.871"€48.32
B
SHX1316		2 1/4" , 2.25"1 3/16" , 13/16"2.688"SH Series3500 lbs.-in.0.875" , 7/8"0.75 in./ft.1.871"€48.32
F
HX18MM		2"18 mm2 1/2" , 2.5"H Series, QT Series1750 lbs.-in.1"0.75 In./Ft. , 3/4 In./Ft.1 5/8"€31.10
F
HX10MM		2"10 mm2 1/2" , 2.5"H Series, QT Series1750 lbs.-in.1"0.75 In./Ft. , 3/4 In./Ft.1 5/8"€31.10
F
HX11MM		2"11 mm2 1/2"H Series, QT Series1750 lbs.-in.1"0.75 in./ft.-€31.10
F
HX16MM		2"16 mm2 1/2" , 2.5"H Series, QT Series1750 lbs.-in.1"0.75 In./Ft. , 3/4 In./Ft.1 5/8"€31.10
F
HX36MM		2"36 mm2 1/2" , 2.5"H Series, QT Series1750 lbs.-in.1"0.75 In./Ft. , 3/4 In./Ft.1 5/8"€31.10
G
SDSX134		2.69"1 3/4"3.188"SDS Series5000 lbs.-in.7/8"0.75 in./ft.2.188"€55.67
G
SDSX22MM		2.69"22 mm3.188"SDS Series5000 lbs.-in.7/8"0.75 in./ft.-€55.67
G
SDSX19MM		2.69"19 mm3.188"SDS Series5000 lbs.-in.7/8"0.75 in./ft.-€55.67
G
SDSX2		2.69"2"3.188"SDS Series5000 lbs.-in.0.875" , 7/8"0.75 In./Ft. , 3/4 In./Ft.2.188"€55.67
G
SDSX1516		2.69"1 5/16"3.188"SDS Series5000 lbs.-in.7/8"0.75 in./ft.2.188"€55.67
G
SDSX1316		2.69"1 3/16"3.188"SDS Series5000 lbs.-in.7/8"--€55.67
H
SDX916		2.69"9/16"3.188"SD Series5000 lbs.-in.1 3/8"--€68.91
H
SDX1316		2.69"13/16"3.188"SD Series5000 lbs.-in.1 3/8"0.75 in./ft.2.188"€68.91
H
SDX1516		2.69"1 5/16"3.188"SD Series5000 lbs.-in.1 3/8"0.75 in./ft.2.188"€68.91
H
SDX134		2.69"1 3/4"3.188"SD Series5000 lbs.-in.1 3/8"--€68.91
H
SDX11316		2.69"1 13/16"3.188"SD Series5000 lbs.-in.1 3/8"0.75 in./ft.2.188"€68.91
H
SDX2		2.69"2"3.188"SD Series5000 lbs.-in.1 3/8"0.75 in./ft.-€68.91
I
SDSX1916		2.69"1 9/16"3.188"SDS Series5000 lbs.-in.7/8"--€55.67
J
SDSX916		2.69"9/16"3.188"SDS Series5000 lbs.-in.7/8"--€55.67
H
SDX48MM		2.69"48 mm3.188"SD Series5000 lbs.-in.1 3/8" , 1.375"0.75 In./Ft. , 3/4 In./Ft.2.188"€68.91
G
SDSX20MM		2.69"20 mm3.188"SDS Series5000 lbs.-in.0.875" , 7/8"0.75 In./Ft. , 3/4 In./Ft.2.188"€55.67
H
SDX1116		2.69"-3.188"----2.188"€68.91
G
SDSX11316		2.69"1 13/16"3.188"SDS Series5000 lbs.-in.7/8"--€55.67
H
SDX1116		2.69"11/16"3.188"SD Series5000 lbs.-in.1 3/8"--€68.91
G
SDSX1116		2.69"-3.188"----2.188"€55.67
G
SDSX1116		2.69"11/16"3.188"SDS Series5000 lbs.-in.7/8"--€55.67
A
SFX21516		3 22/25"2 15/16"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
A
SFX258		3 22/25"2 5/8"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
A
SFX78		3 22/25"7/8"4 5/8"SF Series11000 lbs.-in.1 1/2"--€114.44
A
SFX12		3 22/25"1/2"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
A
SFX916		3 22/25"9/16"4 5/8"SF Series11000 lbs.-in.1 1/2"--€114.44
A
SFX21116		3 22/25"2 11/16"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
A
SFX234		3 22/25"2 3/4"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
K
SFX1516		3 22/25"15/16"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
A
SFX1116		3 22/25"11/16"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
A
SFX1316		3 22/25"13/16"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
A
SFX34		3 22/25"3/4"4 5/8"SF Series11000 lbs.-in.1 1/2"--€114.44
A
SFX58		3 22/25"5/8"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
L
SFX214		3 22/25"2 1/4"4 5/8"SF Series11000 lbs.-in.1 1/2"--€114.44
A
SFX21316		3 22/25"2 13/16"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
A
SFX2916		3 22/25"2 9/16"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
A
SFX2516		3 22/25"2 5/16"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
A
SFX212		3 22/25"2 1/2"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
A
SFX2116		3 22/25"2 1/16"4 5/8"SF Series11000 lbs.-in.1 1/2"0.75 in./ft.3 1/8"€114.44
