GATES 2012 .11/16 Taper-Lock Bushing, 2012, 11/16 Inch Bore Dia, 1.25 Inch Length
11/16"
Get it by Thursday, Dec 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Taper-Lock Bushing |
| Bolt Circle Diameter | 2.63" |
| Bore Bushing Series | 2012 Series |
| Bore Diameter | 11/16" |
| Bore System Of Measurement | Inch |
| Bushing Type | Taper Lock |
| Flange Type | Flangeless |
| For Shaft Type | Keyed |
| Includes | (2) Set Screws |
| Keyway Depth | 1/16" |
| Keyway Width | 3/16" |
| Material | Steel |
| Maximum Torque | 7150 lbs.-in. |
| Overall Diameter | 2.75" |
| Overall Length | 1.25" |
| Sae Grade | Grade 5 |
| Taper | 8° |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Overall Length | Bolt Circle Dia. | Bore Dia. | Keyway Size | Taper | Flange Type | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|

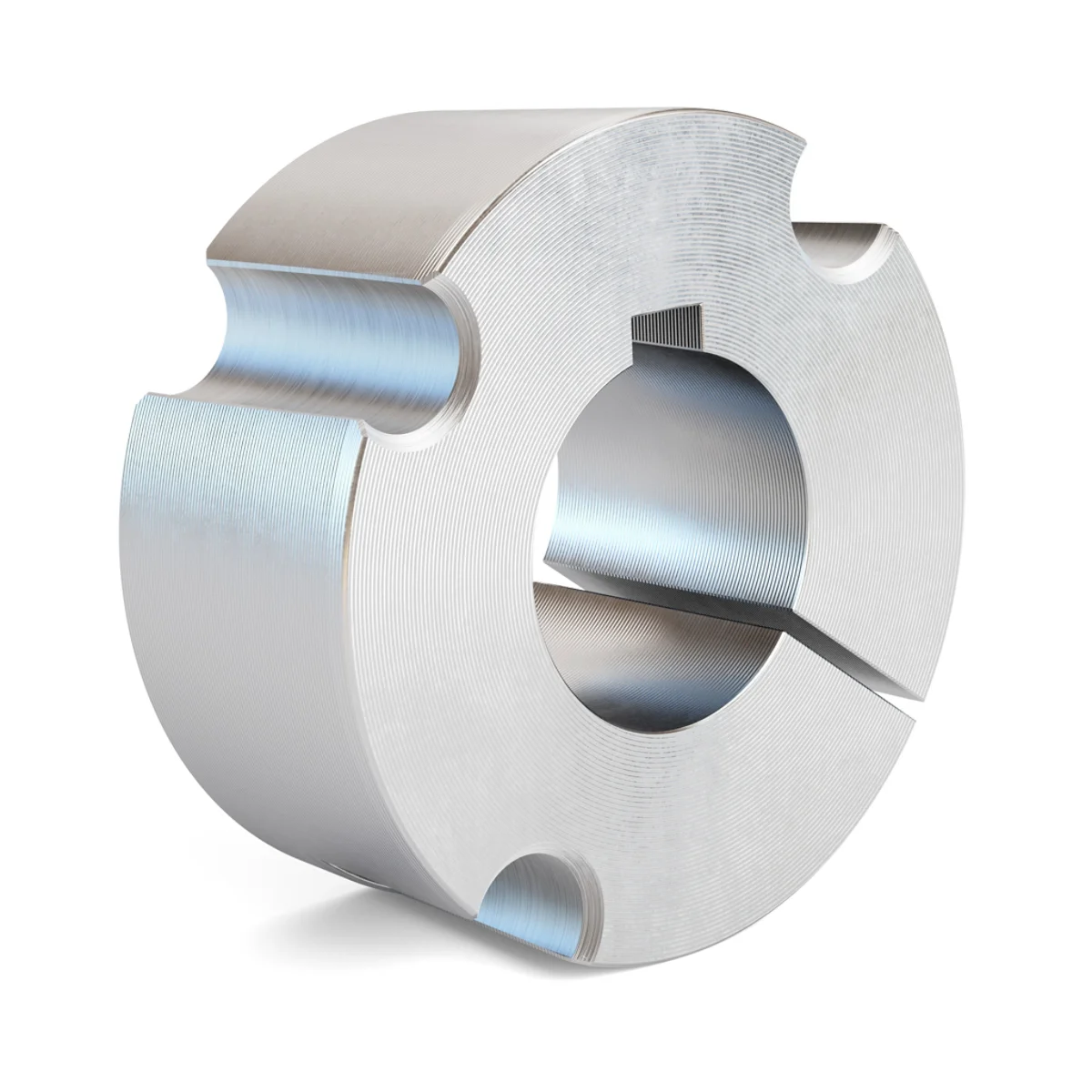

| 1210 25MM | 1" | 1 3/4" | 25 mm | 0.31" x 0.13" | 8° | - | Finished Bore | €23.68 | |
| 2012 2.1/8 | 1 1/4" | 2 5/8" | 2 1/8" | 0.51" x 0.2" | 8° | - | Finished Bore | €33.59 | RFQ
|
| 1108 19MM | 7/8" | 1 29/64" | 19 mm | 0.24" x 0.11" | 8° | - | Finished Bore | €23.26 | |
| 4030 3.13/16 | 3" | 5.54" | 3 13/16" | 0.75" x 0.39" | 8° | - | Finished Bore | €235.11 | |
| 1008 19MM | 7/8" | 1 21/64" | 19 mm | 0.24" x 0.11" | 8° | - | Finished Bore | €21.44 | |
| 1008 .11/16 | 0.875" | - | - | - | 8° | Flangeless | - | - | RFQ
|
| 1108 .13/16 | 0.875" | 1.453" | 0.812" | - | 8° | Flangeless | - | €44.65 |
