SQUARE D Safety Relays

Filter

SQUARE D -

24VDC, Relay

SQUARE D 8501KPDR12P14V53

A

SQUARE D 8501KPDR13V53

B

SQUARE D 8501KPDR12V53

C

Style	Model	Contact Material	No. Of Pins	No. Of Pins/terminals	Contact Form	Status Indicator	Contact Rating (ac)	Socket Code	Coil Va Rating	Price
A	8501KPDR12P14V53	Silver Alloy	8	8	DPDT	LED Indicator,Mechanical Flag	10A @ 120V	A	1.5 VA	€109.68
B	8501KPDR13V53	Silver Alloy	11	11	3PDT	Mechanical Flag	10A @ 277V	B	3.6 VA	€119.30
C	8501KPDR12V53	Silver Tin Oxide	8	8	DPDT	Mechanical Flag	10A @ 277V	A	5.5 VA	€99.80

SQUARE D -

24VAC, Relay

SQUARE D 8501KPR13P14V14

A

Style	Model	Contact Material	Status Indicator	Push-to-test Button	Coil Voltage	Mounting	Resistive Contact Amp Rating	Height	Depth	Price
A	8501KPR13P14V14	Silver Alloy	LED Indicator,Mechanical Flag	No Test Button	24V AC	Octal Plug In Socket	10A	2.66"	1.4"	€139.39
A	8501KPR13V14	Silver Tin Oxide	No	No	24V AC	Octal Plug In Socket	10A	2.66"	1.4"	€119.30

SQUARE D -

Side Mounted Flange Mounted Relays

SQUARE D 8501RS42P14V14

A

SQUARE D 8501KFR12V14

B

SQUARE D 8501RSD14P14V53

C

SQUARE D RUMF32BD

D

SQUARE D 8501RS44P14V20

E

SQUARE D 8501RS43V20

F

Style	Model	Coil Voltage	Relay Mounting Style	Contact Material	Amps	Electrical Connection Type	Hp @ 120v	Hp @ 240v	Resistive Contact Amp Rating	Price
A	8501RS42P14V14	24V AC	Socket	Silver Tin Oxide	15A	Tab	1/2 hp	1/2 hp	10A	€112.95
B	8501KFR12V14	24V AC	Surface Side Flange	Silver Alloy	10A	Push In	1/3 hp	1/2 hp	10A	€66.70
C	8501RSD14P14V53	24V DC	Socket	Silver Tin Oxide	6A	Tab	1/3 hp	Not Rated	5A	€95.77
A	8501RSD42P14V53	24V DC	Socket	Silver Tin Oxide	15A	Tab	1/2 hp	1/2 hp	10A	€124.58
D	RUMF32BD	24V DC	Socket	Silver Tin Oxide	10A	Tab	1/3 hp	1/2 hp	10A	€35.28
A	8501RSD42V53	24V DC	Socket	Silver Alloy, Gold Flashed	15A	Tab	1/2 hp	1/2 hp	10A	€91.24
B	8501KFR12V20	120V AC	Surface Side Flange	Silver Alloy	10A	Push In	1/3 hp	1/2 hp	10A	€66.70
C	8501RS14P14V20	120V AC	Socket	Silver Cadmium Oxide	6A	Tab	1/3 hp	Not Rated	5A	€99.69
D	RUMF32F7	120V AC	Socket	Silver Cadmium Oxide	10A	Tab	1/3 hp	1/2 hp	10A	€28.87
E	8501RS44P14V20	120V AC	Socket	Silver Cadmium Oxide	15A	Tab	1/2 hp	1 hp	10A	€135.05
D	8501KUR13P14V20	120V AC	Socket	Silver Tin Oxide	10A	Tab	1/3 hp	1/2 hp	10A	€75.04
A	8501RS42P14V20	120V AC	Socket	Silver Tin Oxide	15A	Tab	1/2 hp	1/2 hp	10A	€108.50
F	8501RS43V20	120V AC	Socket	Gold Flashed Fine Silver	15A	Tab	1/2 hp	1 hp	10A	€83.29

SQUARE D -

Master NEMA Control Relays

SQUARE D 8501XMO60V02

A

SQUARE D 8501XMO40V02

B

Style	Model	Coil Voltage	No. Of Poles	Body Depth	Depth	No. Of Terminals	Contact Form	Mounting	Frequency	Price
A	8501XMO60V02	120V DC	6	5.16"	5.16"	14	6NO	Panel	50/60 Hz	€736.02
B	8501XMO40V02	120V DC	4	3.95"	3.95"	10	4NO	Panel	50/60 Hz	€600.21

SQUARE D -

NEMA Control Relays

SQUARE D 8501XO20V01

A

SQUARE D 8501XDO40V53

B

SQUARE D 8501XO40V01

C

SQUARE D 8501XDO20V53

D

SQUARE D 8501XDO80V53

E

SQUARE D 8501XO1200V02

F

SQUARE D 8501XO30V02

G

SQUARE D 8501XO60V02

H

SQUARE D 8501XO80V02

I

SQUARE D 8501XDO40V66

J

Style	Model	Coil Voltage	Frequency	Amps	Height	Depth	Rated Breaking Capacity	Contact Form	Returnability	Price
A	8501XO20V01	24V	60 Hz	10A	3 1/2"	3.95"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	2NO	Yes	€256.27
B	8501XDO40V53	24V	60 Hz	10A	3 14/25"	5.17"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	4NO	Yes	€530.45
C	8501XO40V01	24V	60 Hz	10A	3 1/2"	3.95"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	4NO	Yes	€360.77
D	8501XDO20V53	24V	Not Applicable	10A	3 14/25"	5.17"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	2NO	No	€455.44
E	8501XDO80V53	24V	Not Applicable	10A	3 14/25"	6.37"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	8NO	No	€694.74
A	8501XO20V02	120V AC	50/60 Hz	10A	3 1/2"	3.95"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	2NO	Yes	€280.93
C	8501XO40V02	120V AC	50/60 Hz	10A	3 1/2"	3.95"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	4NO	Yes	€443.32
F	8501XO1200V02	120V AC	50/60 Hz	10A	3 1/2"	6.36"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	12NO	Yes	€582.27
G	8501XO30V02	120V AC	50/60 Hz	10A	3 1/2"	3.95"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	3NO	Yes	€318.13
H	8501XO60V02	120V AC	50/60 Hz	10A	3 1/2"	5.16"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	6NO	Yes	€451.25
I	8501XO80V02	120V AC	50/60 Hz	10A	3 1/2"	5.16"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	8NO	Yes	€668.69
C	8501XO40V03	220/240V AC	50/60 Hz	10A	3 1/2"	3.95"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	4NO	Yes	€360.77
A	8501XO20V03	220/240V AC	50/60 Hz	10A	3 1/2"	3.95"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 30-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	2NO	No	€280.93
I	8501XO80V03	220/240V AC	50/60 Hz	10A	3 1/2"	5.16"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	8NO	No	-	RFQ
J	8501XDO40V66	230/250V DC	Not Applicable	10/5A	3 14/25"	5.17"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	4NO	No	€463.32
A	8501XO20V06	440/480V AC	50/60 Hz	10A	3 1/2"	3.95"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	2NO	No	-	RFQ
C	8501XO40V06	440/480V AC	50/60 Hz	10A	3 1/2"	3.95"	6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508	4NO	Yes	€360.77

SQUARE D -

120VAC, Relay

SQUARE D 8501KPR13P14V20

A

SQUARE D 8501KPR12V20

B

Style	Model	Contact Material	No. Of Pins	No. Of Pins/terminals	Contact Form	Status Indicator	Socket Code	Coil Va Rating	Contact Composition	Price
A	8501KPR13P14V20	Silver Alloy	11	11	3PDT	LED Indicator,Mechanical Flag	B	2.5 VA	3PDT	€139.39
A	8501KPR13V20	Silver Tin Oxide	11	11	3PDT	Mechanical Flag	B	2.5 VA	3PDT	€111.09
B	8501KPR12V20	Silver Tin Oxide	8	8	DPDT	Mechanical Flag	A	3.5 VA	DPDT	€110.97
B	8501KPR12P14V20	Silver Tin Oxide	8	8	DPDT	LED Indicator,Mechanical Flag	A	2.5 VA	DPDT	€117.80

SQUARE D -

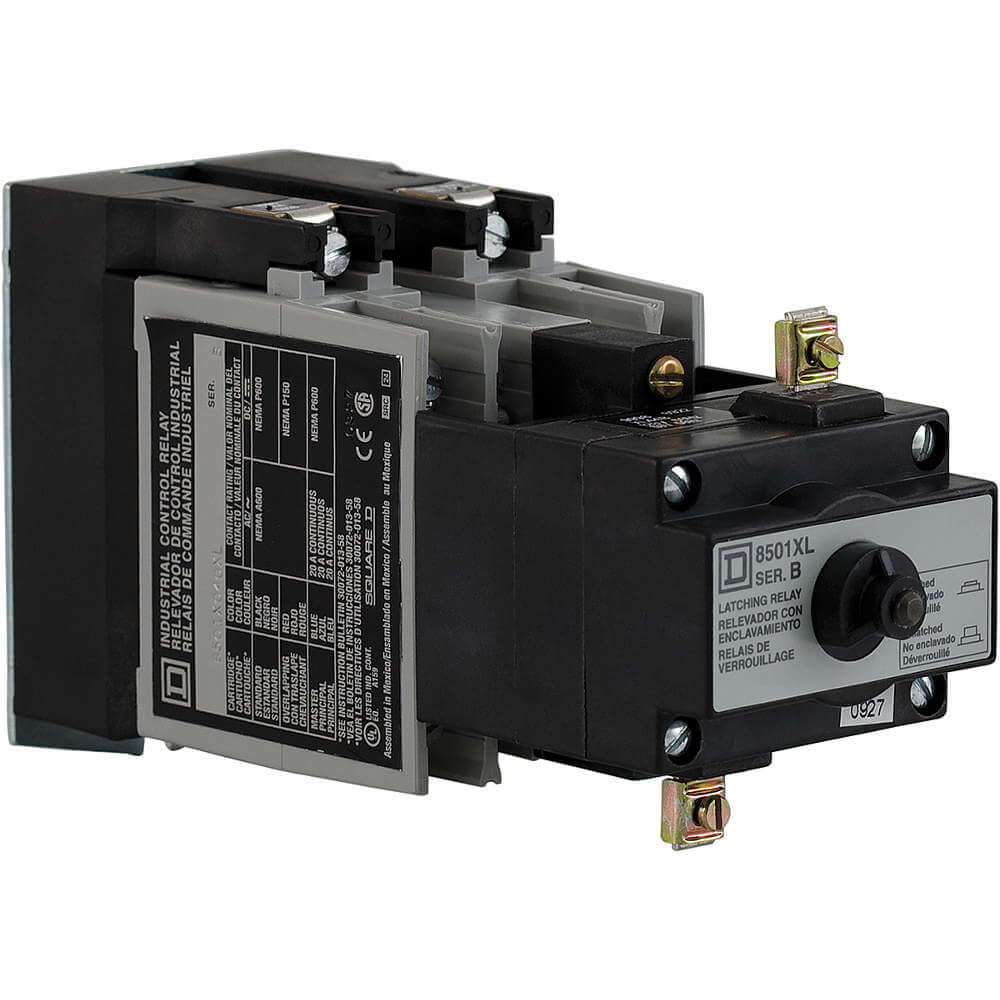

Latching NEMA Control Relay4NO120VAC10A

Latching NEMA Control Relay4NO120VAC10A

Model	Item	Price (ex. VAT)
8501XO40XLV02	AH2QKB	€612.28

SQUARE D -

Plug-In Relay 8 Pins Octal 24VAC

Plug-In Relay 8 Pins Octal 24VAC

Model	Item	Price (ex. VAT)
8501KPR12V14	AH2NQQ	€110.97

SQUARE D -

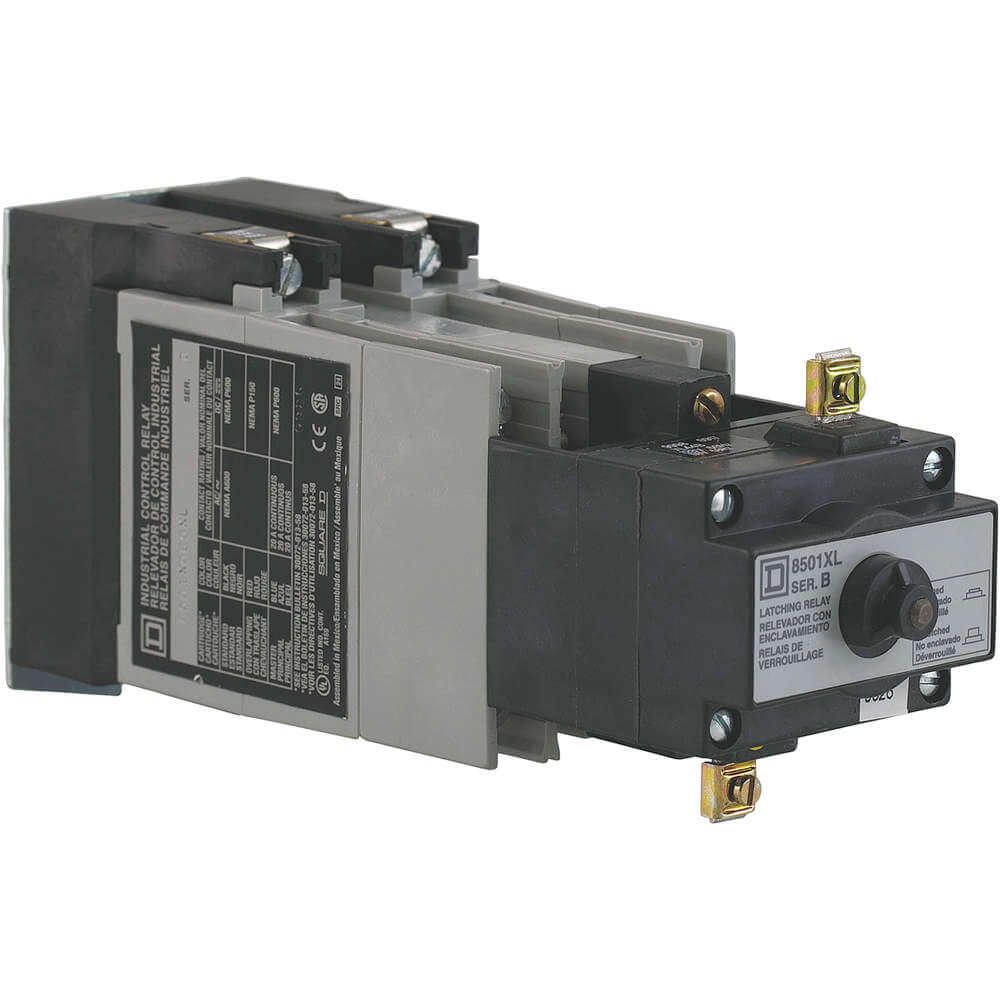

Latching NEMA Control Relay 8NO 120VAC 10A

Latching NEMA Control Relay 8NO 120VAC 10A

Model	Item	Price (ex. VAT)
8501XO80XLV02	AH2QKQ	-	RFQ
