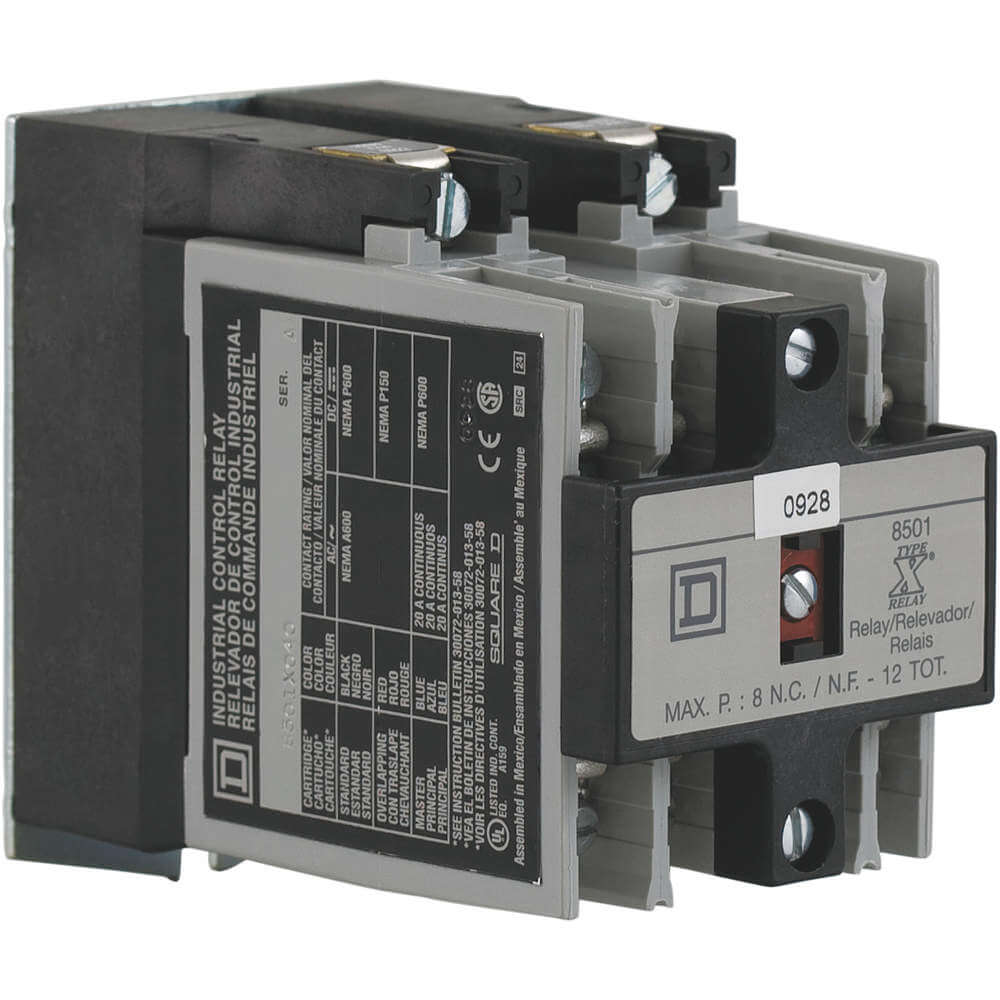

SQUARE D 8501XO40V02 NEMA Control Relay 4NO 120VAC 10A
Item: AJ2GYCModel: 8501XO40V02Cross Ref: 4B525
7 In Stock
Ships within 2 days via
5.00% off
€421.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | NEMA Control Relay |
| Accessory Group | A |
| Amps Rating | 10/5A |
| Awg Gauge | 18 AWG to 12 AWG |
| Body Depth | 3.95" |
| Body Height | 3.5" |
| Body Width | 2.23" |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 110/120V AC , 120V AC |
| Contact Configuration | 4 No 4 Standard Contact Cartridges |
| Contact Form | 4NO |
| Contact Material | Silver Cadmium Oxide |
| Contact Rating (ac) | 10A @ 600V |
| Contact Rating (dc) | 0.2A @ 301-600V, 0.55A @ 250V, 0.8A @ 250V, 1.1A @ 125V, 4A @ 125V |
| Control Circuit Voltage Limits | Operational 0.85-1.1 UC AC 50/60 Hz |
| Current Rating | 10A |
| Dc Contact Rating | 0.2A @ 301-600V, 0.55A @ 250V, 0.8A @ 250V, 1.1A @ 125V, 4A @ 125V |
| Depth | 3.95" |
| Drop Out Operating Time | 16 ms |
| Electrical Connection | Screw Clamp Terminal |
| Electrical Connection Type | Screw |
| Frequency | 50/60 Hz |
| Height | 3 1/2" |
| Hold-in Power Consumption In Va | 23 VA at 60 Hz, 25 VA at 50 Hz |
| Input Voltage | 110/120V AC |
| Inrush Power | 143/148 VA |
| Lead Size | 18 AWG |
| Maximum Operating Temperature | 160°F |
| Minimum Operating Temperature | -40°F |
| Mounting | Panel |
| Mounting Type | Panel |
| No. Of Terminals | 10 |
| Operating Temp. | -40°C to +71°C |
| Pick Up Operating Time | 15 ms |
| Power Consumption | 23 VA |
| Rated Breaking Capacity | 6A, 120V AC Inductive Control Circuit UL 508, 3A, 240V AC Inductive Control Circuit UL 508, 1.5A, 480V AC Inductive Control Circuit UL 508, 1.2A, 600V AC Inductive Control Circuit UL 508, 10A, <= 600V AC Resistive Control Circuit UL 508, 1.1A, 125V DC Inductive Control Circuit UL 508, 0.55A, 250V DC Inductive Control Circuit UL 508, 0.2A, 301-600V DC Inductive Control Circuit UL 508, 4A, 125V DC Resistive Control Circuit UL 508, 0.8A, 250V DC Resistive Control Circuit UL 508 |
| Rated Short-circuit Making Capacity | 60A @ 120V AC Inductive Control Circuit Ul 508, 30A @ 240V AC Inductive Control Circuit Ul 508, 15A @ 480V AC Inductive Control Circuit Ul 508, 12A @ 600V AC Inductive Control Circuit Ul 508, 10A @ Greater Than 600V AC Resistive Control Circuit Ul 508, 1.1A @ 125V DC Inductive Control Circuit Ul 508, 0.55A @ 250V DC Inductive Control Circuit Ul 508, 0.2A @ 301-600V DC Inductive Control Circuit Ul 508, 4A @ 125V DC Inductive Control Circuit Ul 508, 0.8A @ 250V DC Resistive Control Circuit Ul 508 |
| Relay Frame Size | Standard |
| Relay Mounting Style | Surface |
| Relay Style | NEMA |
| Relay Type | Control |
| Resistive Contact Amp Rating | 10A |
| Response Time | 15 ms (Pick-Up Time), 16 ms (Drop-Out Time) |
| Returnability | Yes |
| Series | 8501 TYPE X LATCHING CONTROL RELAYS Series |
| Tightening Torque | 1.36 N-m |
| Width | 2.23" |
Shipping Info:
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 10.03 |
| Ship width (cm) | 5.66 |
| Country of Origin | MX |
Product Variants
| Product | Model | Coil Voltage | Contact Form | Height | Depth | Power Consumption | Body Height | Body Depth | Input Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8501XDO40V66 | 230/250V DC | 4NO | 3 14/25" | 5.17" | - | - | - | - | €463.32 | |
 |
8501XDO20V53 | 24V | 2NO | 3 14/25" | 5.17" | 18 W | 3.56" | 5.17" | 24V DC | €455.44 | |
 |
8501XDO80V53 | 24V | 8NO | 3 14/25" | 6.37" | 18 W | 3.56" | 6.37" | 24V DC | €694.74 | |
 |
8501XO20V01 | 24V | 2NO | 3 1/2" | 3.95" | 23 VA | 3.5" | 3.95" | 24V AC | €256.27 | |
|
8501XO20V03 | 220/240V AC | 2NO | 3 1/2" | 3.95" | 23 VA | 3.5" | 3.95" | 220/240V AC | €280.93 | |
|
8501XO20V06 | 440/480V AC | 2NO | 3 1/2" | 3.95" | 23 VA | 3.5" | 3.95" | 440/480V AC | - | RFQ
|
 |
8501XO80V03 | 220/240V AC | 8NO | 3 1/2" | 5.16" | 23 VA | 3.5" | 5.16" | 220/240V AC | - | RFQ
|
