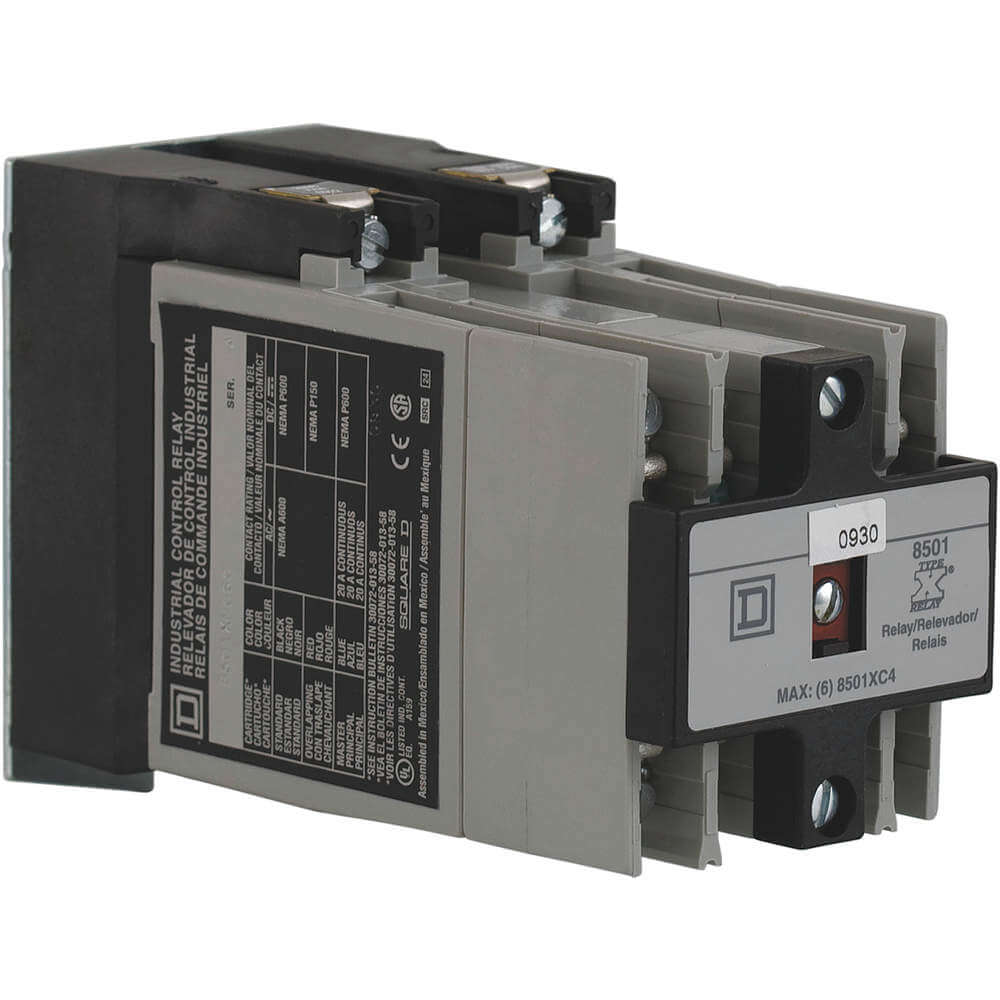

SQUARE D 8501XMO40V02 Master NEMA Control Relay 4NO 120VAC 20A
Item: AJ2GXXModel: 8501XMO40V02Cross Ref: 4B520
7 In Stock
Ships within 2 days via
5.00% off
€570.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Master NEMA Control Relay |
| Accessory Group | F |
| Amps Rating | 20A |
| Body Depth | 3.95" |
| Body Height | 3.5" |
| Body Width | 2.23" |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 110/120V AC , 120V DC |
| Contact Configuration | 4 No 4 Master Contact Cartridges |
| Contact Form | 4NO |
| Contact Material | Silver Cadmium Oxide |
| Contact Rating (ac) | 10A @ 600V |
| Current Rating | 20A |
| Depth | 3.95" |
| Drop Out Operating Time | 16 ms |
| Electrical Connection | Screw Clamp Terminal |
| Electrical Connection Type | Screw |
| Frequency | 50/60 Hz |
| Height | 3 1/2" |
| Input Voltage | 110/120V AC |
| Lead Size | 18 AWG |
| Maximum Operating Temperature | 160°F |
| Minimum Operating Temperature | -40°F |
| Mounting | Panel |
| Mounting Type | Panel |
| No. Of Poles | 4 |
| No. Of Terminals | 10 |
| Operating Temp. | -40°C to +71°C |
| Pick Up Operating Time | 15 ms |
| Power Consumption | 23 VA |
| Relay Frame Size | Standard |
| Relay Mounting Style | Surface |
| Relay Style | NEMA |
| Relay Type | Master |
| Resistive Contact Amp Rating | 20A |
| Response Time | 15 ms (Pick-Up Time), 16 ms (Drop-Out Time) |
| Returnability | Yes |
| Series | 8501 TYPE X LATCHING CONTROL RELAYS Series |
| Voltage Rating | 600V AC |
| Width | 2.23" |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 22.58 |
| Ship length (cm) | 57.35 |
| Ship width (cm) | 8.89 |
| Country of Origin | MX |
Product Variants
| Product | Model | Coil Voltage | Contact Form | Body Depth | Depth | Mounting | Contact Material | Power Consumption | Resistive Contact Amp Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8501XMO60V02 | 120V DC | 6NO | 5.16" | 5.16" | Panel | Silver Cadmium Oxide | 23 VA | 20A | €788.59 |
