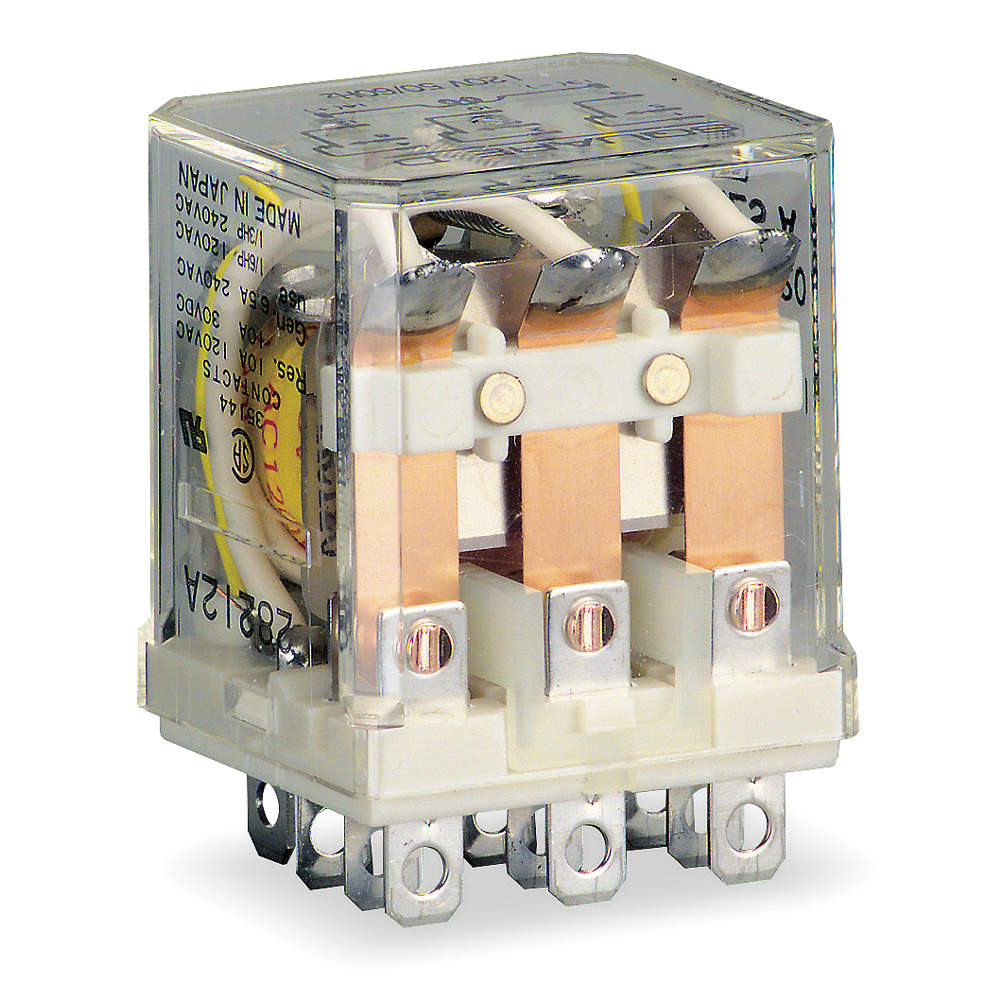

SQUARE D 8501RS43V20 Relay 3PDT 10A 120VAC
Item: AF9FUVModel: 8501RS43V20Cross Ref: 2DW48
7 In Stock
Ships within 2 days via
5.00% off
€79.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Breaking Capacity | 3A 120V AC Inductive Control Circuit UL 508, 1.5A 240V AC Inductive Control Circuit UL 508, 10A 120V AC Resistive Control Circuit UL 508, 6.67A 277V AC Resistive Control Circuit UL 508, 10A 28V DC Resistive Control Circuit UL 508 |
| Coil Voltage | 120V AC |
| Contact Composition | 3PDT |
| Contact Form | 3PDT |
| Contact Material | Gold Flashed Fine Silver , Silver Alloy, Gold Flashed |
| Contact Rating | 10A @ 277V AC/28V DC |
| Contact Rating (ac) | 10A @ 277V |
| Contact Rating (dc) | 10A @ 28V |
| Control Circuit Voltage | 120V AC |
| Current Rating | 15A |
| Depth | 1.6" |
| Drop Out Operating Time | 20 ms |
| Electrical Connection Type | Tab |
| For Use With | 8501NR43 |
| Green Certification Or Other Recognition | RoHS.png |
| Height | 1.07" |
| Horsepower @ 240v Ac | 1 hp |
| Hp @ 120v | 1/2 hp |
| Hp @ 240v | 3/4 hp |
| Hp Rating | 1/2 hp @ 120V AC, 1 hp @ 277V AC |
| Manual Operator | Without Test Button |
| Max. Switching Voltage | 300V AC/30V DC |
| Motor Rated | Yes |
| Mounting | Side Flange |
| Mounting Type | Socket |
| Number Of Pins | 11 |
| Number Of Pins/terminals | 11 |
| Operational Ambient Temp. Range | -40°C to +55°C |
| Pick Up Operating Time | 20 ms |
| Pilot Light | No Indicator |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Relay Type | Standard |
| Resistive Contact Amp Rating | 10A |
| Returnability | Yes |
| Sealing | Enclosed |
| Series | Square D 8501R Miniature Series |
| Shape Of Pins | Spade |
| Socket Code | E |
| Status Indicator | Mechanical Flag |
| Status Indicator | LED |
| Width | 1.2" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 4.32 |
| HS code | 8536410050 |
| Country of Origin | CN |
Product Variants
| Product | Model | Coil Voltage | Contact Form | Contact Material | Number Of Pins | Status Indicator | Resistive Contact Amp Rating | Relay Mounting Style | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8501KFR12V14 | 24V AC | DPDT | Silver Alloy | 8 | No | 10A | Surface (Side Flange) | Push In | €66.70 | |
|
8501KFR12V20 | 120V AC | DPDT | Silver Alloy | 8 | No | 10A | Surface (Side Flange) | Push In | €66.70 | |
 |
RUMF32F7 | 120V AC | 3PDT | Silver Cadmium Oxide | 11 | LED Indicator,Mechanical Flag | 10A | Socket | Tab | €34.07 | |
|
8501KUR13P14V20 | 120V AC | 3PDT | Silver Tin Oxide | 11 | LED Indicator,Mechanical Flag | 10A | Socket | Tab | €75.04 | |
|
RUMF32BD | 24V DC | 3PDT | Silver Tin Oxide | 11 | LED Indicator,Mechanical Flag | 10A | Socket | Tab | €35.28 | |
 |
8501RS14P14V20 | 120V AC | 4PDT | Silver Cadmium Oxide | 14 | LED Indicator,Mechanical Flag | 5A | Socket | Tab | €99.69 | |
 |
8501RS42P14V14 | 24V AC | DPDT | Silver Tin Oxide | 8 | LED Indicator,Mechanical Flag | 10A | Socket | Tab | €112.95 |
