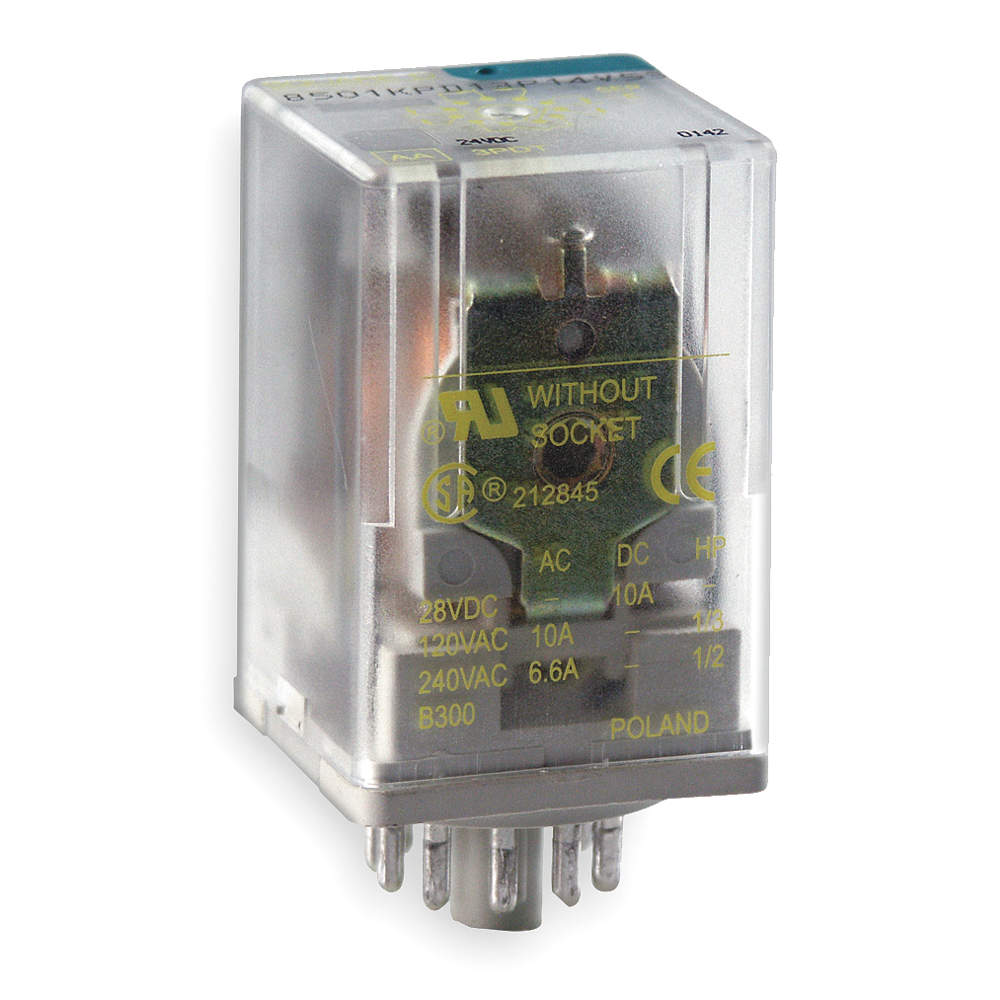

SQUARE D 8501KPR13P14V14 Relay 8-pin Dpdt 10a 100vac
Item: AF9FTGModel: 8501KPR13P14V14Cross Ref: 2DT11
7 In Stock
Ships within 2 days via
5.00% off
€132.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Base Type | Octal |
| Breaking Capacity | 3A 120V AC Inductive Control Circuit UL 508, 1.5A 240V AC Inductive Control Circuit UL 508, 10A 277V AC Resistive Control Circuit UL 508, 10A 30V DC Resistive Control Circuit UL 508 |
| Coil Va Rating | 2.5 VA |
| Coil Voltage | 24V AC |
| Contact Composition | 3PDT |
| Contact Form | 3PDT |
| Contact Material | Silver Alloy , Silver Nickel |
| Contact Rating | 10A @ 277V AC/30V DC |
| Contact Rating (ac) | 10A @ 277V |
| Contact Rating (dc) | 10A @ 28V |
| Control Circuit Voltage | 24V AC |
| Current Rating | 10A |
| Depth | 1.4" |
| Drop Out Operating Time | 20 ms |
| Electrical Connection Type | Pin |
| For Use With | 8501NR62, 8501NR61 |
| Green Certification Or Other Recognition | RoHS.png |
| Height | 2.66" |
| Horsepower @ 240v Ac | 1/2 hp |
| Hp @ 120v Ac | 1/3 hp |
| Hp Rating | 1 hp @ 277V AC, 1/3 hp@ 120V AC |
| Manual Operator | Without Test Button |
| Max. Switching Voltage | 300V AC/30V DC |
| Motor Rated | Yes |
| Mounting | Octal Plug In Socket |
| Mounting Type | Socket |
| Number Of Pins | 11 |
| Number Of Pins/terminals | 11 |
| Operational Ambient Temp. Range | -40°C to +55°C |
| Pick Up Operating Time | 20 ms |
| Pilot Light | Indicator Light Relay Energised LED |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Relay Type | General Purpose |
| Resistive Contact Amp Rating | 10A |
| Returnability | Yes |
| Sealing | Enclosed |
| Series | Square D 8501K Series |
| Shape Of Pins | Tubular |
| Socket Code | B |
| Status Indicator | LED Indicator,Mechanical Flag |
| Status Indicator | LED |
| Width | 1.4" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 4.32 |
| HS code | 8536490080 |
| Country of Origin | CN |
Product Variants
| Product | Model | Contact Material | Status Indicator | Push-to-test Button | Mounting | Coil Voltage | Contact Form | Number Of Pins | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
8501KPR13V14 | Silver Tin Oxide | No | No | Octal Plug In Socket | 24V AC | 3PDT | 11 | B | €119.30 |
