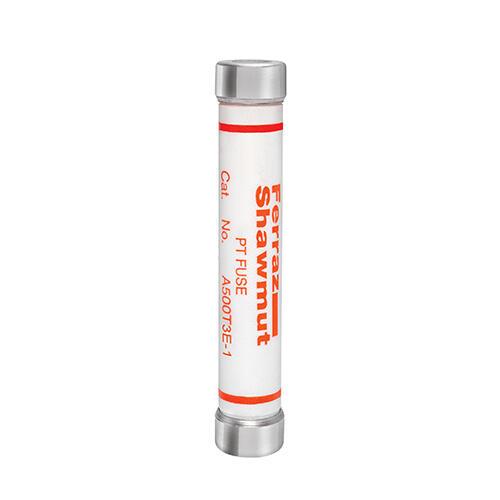

MERSEN FERRAZ A500T3E-1 Fuse, Medium Voltage, PT Type, 5000V, 3A
Item: CH4UVAModel: A500T3E-1Cross Ref: 36A641
7 In Stock
Ships within 2 days via
5.00% off
€305.14 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 50 kA |
| Ac Voltage | 5000V AC |
| Ac/dc | AC |
| Amps | 3A |
| Body Material | Ceramic |
| Body Style | Cylindrical |
| Body/insulating Material | GMG |
| Class | R-Rated |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Ferrule |
| Dc Voltage | Not Rated |
| Dia. | 25.4 mm |
| Element | Single |
| Equivalent Brand And Series | Mersen A500 Series |
| Equivalent Series | A500 Series |
| Finish | TiN Plated |
| Fits Fuse Block Style | Nonrejection |
| Frequency | 50/60 Hz |
| Fuse Size | 5 5/8" x 1" |
| Interrupt Rating | 80 kA (Sym.) @ 5000V AC |
| Length | 143 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-9f60aaa003.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 5000V |
| Series | A500 Series |
| Speed | Fast Acting |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 10.16 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Ac Voltage | Amps | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Rated Voltage Ac Ul | Body/insulating Material | Dia. | Finish | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9F60AAA003 | 625V AC | 3A | 100 kA | Copper | 625V | Epoxy | 20.6 mm | - | 2 | €375.12 | |
 |
9F60AAA005 | 625V AC | 5A | 100 kA | Copper | 625V | Epoxy | 20.6 mm | - | 2 | €375.12 | |
 |
9F60AAA007 | 625V AC | 7A | 100 kA | Copper | 625V | Epoxy | 20.6 mm | - | 2 | €384.36 | |
 |
9F60AAA010 | 625V AC | 10A | 100 kA | Copper | 625V | Epoxy | 20.6 mm | - | 2 | €375.12 | |
 |
9F60AAB001 | 2750V AC | 1A | 52 kA | Copper | 2750V | Epoxy | 20.6 mm | - | 2 | €492.59 | |
|
9F60AAB002 | 2750V AC | 2A | 52 kA | Copper | 2750V | Epoxy | 20.6 mm | - | 2 | €492.59 | |
 |
9F60BBB001 | 2750V AC | 1A | 52 kA | Copper | 2750V | Epoxy | 39.6 mm | - | 1 | €641.52 |
