MERSEN FERRAZ A055D1DSR0-2R Fuse, Medium Voltage, 5500V, 2R, R Rated, DIN Striker
Get it by Friday, Aug 28
€1,405.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 100 kA |
| Ac Voltage | 5500V AC |
| Ac/dc | AC |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Clip |
| Design Details | 2R |
| Dia. | 73.2 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 508 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-a033d1dsr0-12r.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 5500V |
| Rohs Compliant | Yes |
| Speed Characteristic | R Rated |
Shipping Info:
| Ship weight (kg) | 5.91 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 60.33 |
| Ship width (cm) | 10.16 |
Documentation:
Product Variants
| Product | Model | Design Details | Ac Voltage | Mounting | Frequency | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Connection/terminal Type | Rated Voltage Ac Ul | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A055D1DSR0-12R | 12R | 5500V AC | Clip | 50/60 Hz | 100 kA | Brass | Clip | 5500V | €2,046.00 | |
 |
A055D1DSR0-13R | 13R | 5500V AC | Clip | 50/60 Hz | 100 kA | Brass | Clip | 5500V | €2,046.00 | |
 |
A055D1DSR0-16R | 16R | 5500V AC | Clip | 50/60 Hz | 100 kA | Brass | Clip | 5500V | €2,046.00 | |
 |
A055D1DSR0-19R | 19R | 5500V AC | Clip | 50/60 Hz | 100 kA | Brass | Clip | 5500V | €2,046.00 | |
 |
A055D1DSR0-3R | 3R | 5500V AC | Clip | 50/60 Hz | 100 kA | Brass | Clip | 5500V | €1,405.80 | |
 |

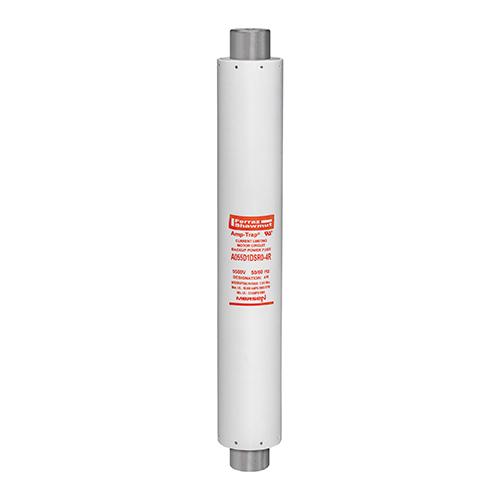

A055D1DSR0-4R | 4R | 5500V AC | Clip | 50/60 Hz | 100 kA | Brass | Clip | 5500V | €1,405.80 | |
 |

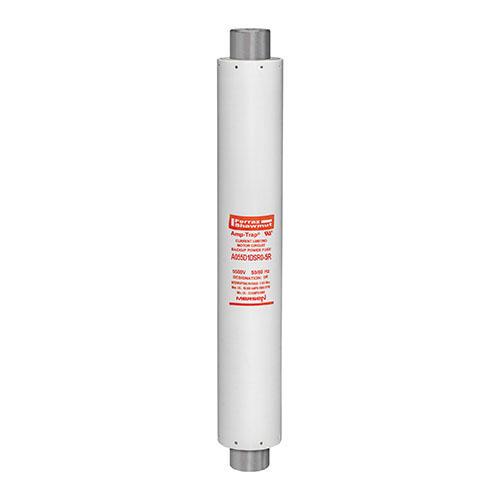

A055D1DSR0-5R | 5R | 5500V AC | Clip | 50/60 Hz | 100 kA | Brass | Clip | 5500V | €1,788.60 |
