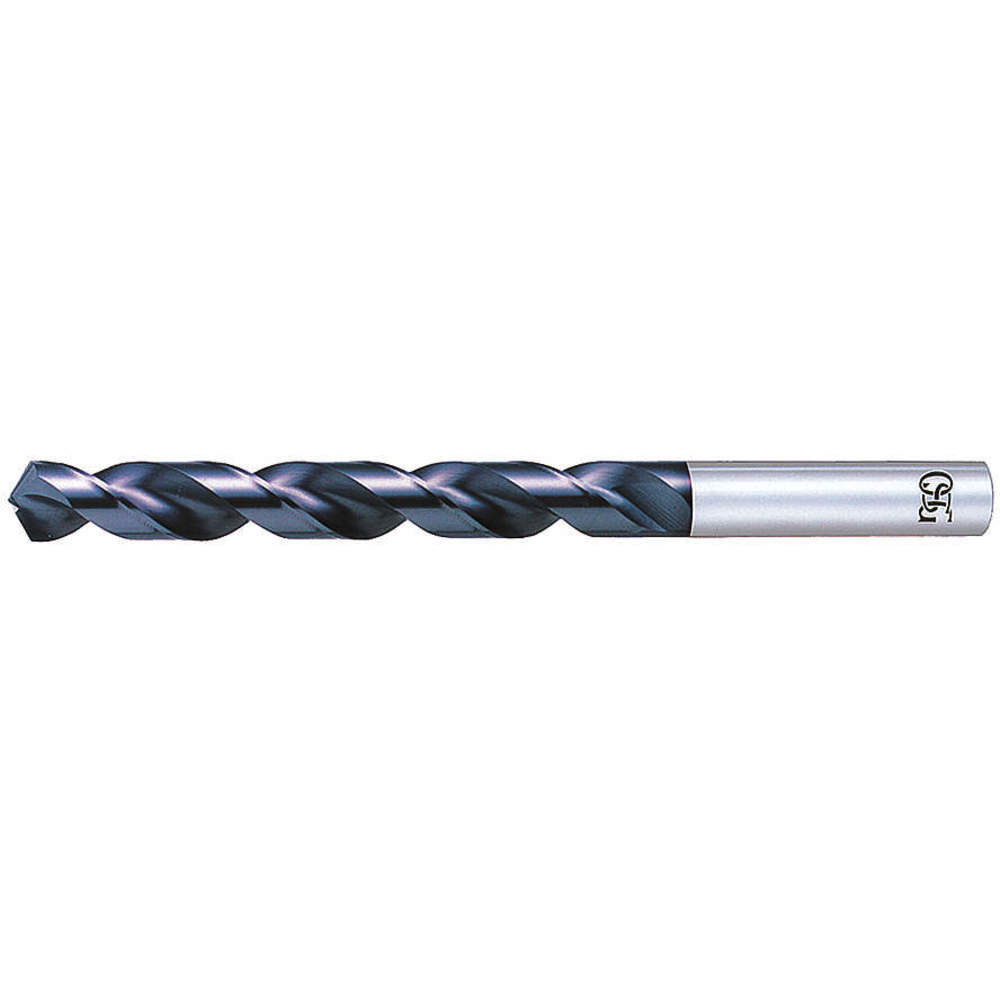

OSG 8594095 Jobber Drill Bit Hss-e x Point 9.5mm
Item: AG3NGPModel: 8594095Cross Ref: 33NZ89
7 In Stock
Ships within 2 days via
10.00% off
€80.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.374 |
| Depthdia. Ratio | 5xd |
| Dimension Type | Metric |
| Drill Bit Dimension Type | Metric |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 120° |
| Drill Bit Point Type | X Thinning Point |
| Drill Bit Size | 9.5 mm |
| Drill Diameter Tolerance | -0.022 mm to 0 mm |
| Drill Length Class | Jobber Length |
| Finish | V Coat |
| Finish - Machining | V |
| Flute Length | 81 mm |
| Flute Type | Fast Spiral |
| Helix Angle | 35° |
| List Number | 1800 |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 81 mm |
| Number Of Flutes | 2 |
| Overall Length | 125 mm |
| Point Angle | 120° |
| Primary Material Application | Aluminum, Cast Iron, Stainless Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, M, N, P |
| Series | 1800 Series |
| Shank Dia. | 9.5 mm |
| Shank Length | 44 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 1.27 |
| HS code | 8207504060 |
Product Details:
- Coolant Through (No)
Product Variants
| Model | Decimal Equivalent | Flute Length | Shank Dia. | Overall Length | Drill Bit Size | Shank Length | Drill Diameter Tolerance | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8594042 | 0.1654 | 43 mm | 4.2 mm | 75 mm | 4.2 mm | 32 mm | -0.018 mm to 0 mm | Non-Coolant Through | €28.84 | |
| 8594045 | 0.1772 | 47 mm | 4.5 mm | 80 mm | 4.5 mm | 33 mm | -0.018 mm to 0 mm | Non-Coolant Through | €28.84 | |
| 8594050 | 0.1969 | 52 mm | 5 mm | 86 mm | 5 mm | 34 mm | -0.018 mm to 0 mm | Non-Coolant Through | €32.14 | |
| 8594055 | 0.2165 | 57 mm | 5.5 mm | 93 mm | 5.5 mm | 36 mm | -0.018 mm to 0 mm | Non-Coolant Through | €41.48 | |
| 8594060 | 0.2362 | 57 mm | 6 mm | 93 mm | 6 mm | 36 mm | -0.018 mm to 0 mm | Non-Coolant Through | €42.24 | |
| 8594025 | 0.0984 | 30 mm | 2.5 mm | 57 mm | 2.5 mm | 27 mm | -0.014 mm to 0 mm | Non-Coolant Through | €22.81 | |
| 8594030 | 0.118" | 33 mm | 3 mm | 61 mm | - | - | - | Non-Coolant Through | €19.34 |
