STARRETT 3808A 12331 Horizontal Dial Test Indicator, Horizontal, 0 Inch to 0.008 Inch Range, 0-4-0 Dial Reading
Item: CU4MYWModel: 3808ACross Ref: 53VD51 / 12331
7 In Stock
Ships within 2 days via
10.00% off
€347.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Dial Test Indicator |
| Accuracy | -0.0001" to +0.0001" |
| Bearing Type | Jeweled |
| Contact Point Dia. | 5/32" |
| Contact Point Length | 1/2" |
| Contact Point Material | Steel |
| Contact Point Shape | Ball |
| Contact Point Style | Ball |
| Dial Color | White |
| Dial Reading | 0-4-0 |
| Dial Size | 1 1/4" |
| Dimension Type | Inch |
| Features | Three Dovetail Positioning Mounts Work With Most Existing Test Indicator Accessories |
| Graduations | 0.0001" |
| Includes | 3/8" Dovetail Clamp, 5/32" Dovetail Clamp |
| Includes Case | Yes |
| Includes Dovetail Mount Attachments | Yes |
| Indicator Style | Horizontal |
| Long Form Calibration Certificate | No |
| Max. Measurement | 0.008" |
| Maximum Measurement | 0.008" |
| Min. Measurement | 0.0" |
| Minimum Measurement - Inch | 0" |
| Mounting Style | Dovetail |
| Non Magnetic Tip | No |
| Number Of Indicators | 1 |
| Operation Type | Lever-Style |
| Range | 0" to 0.008" |
| Range Per Revolution | 0.008" |
| Reading | Balanced |
| Stylus Length | 0.1875", 20 mm |
| Test Indicator Style | Horizontal |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 9017308000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Dial Color | Dial Reading | Range | Dimension Type | Accuracy | Graduations | Range Per Revolution | Dial Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
3808AC | White | 0-4-0 | 0" to 0.008" | Inch | -0.0001" to +0.0001" | 0.0001" | 0.008" | 1 1/4" | €569.94 | |
 |
3908A | White | 0-4-0 | 0" to 0.008" | Inch | -0.0001" to +0.0001" | 0.0001" | 0.008" | 1 14/25" | €434.28 | |
 |
3809A | White | 0 to 15 | 0" to 0.03" | Inch | -0.0005" to +0.0005" | 0.0005" | 0.03" | 1 1/4" | €263.53 | |
|
3809AC | White | 0 to 15 | 0" to 0.03" | Inch | -0.0005" to +0.0005" | 0.0005" | 0.03" | 1 1/4" | €384.23 | |
 |
3808MAC | Yellow | 0 to 100 | 0 mm to 0.2 mm | Metric | -0.002 mm to +0.002 mm | 0.002 mm | 1/5" | 1 1/4" | €592.38 | |
|

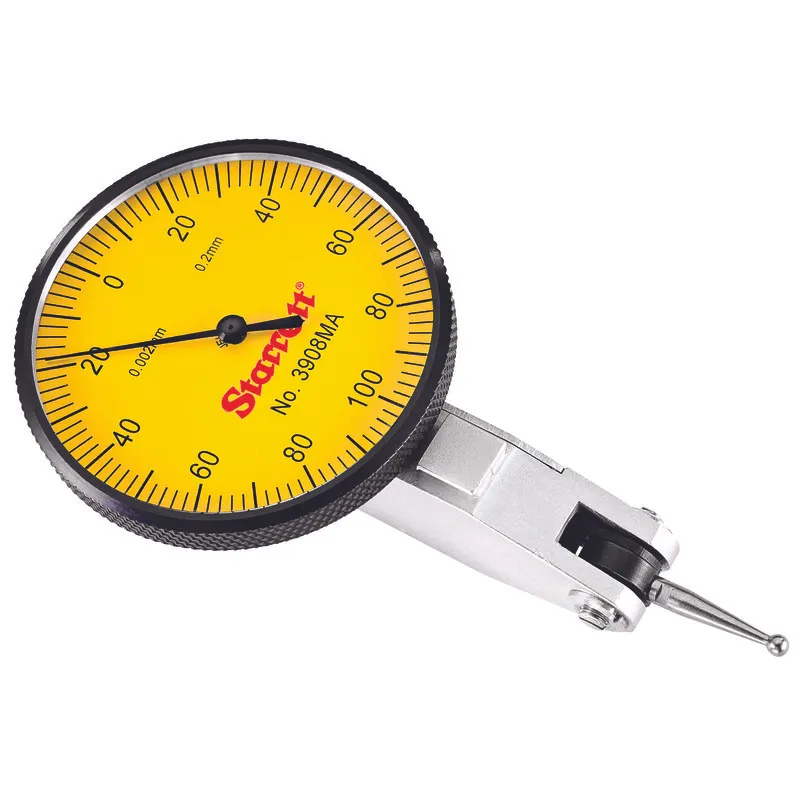

3808MA | Yellow | - | 0 mm to 0.2 mm | Metric | -0.002 mm to +0.002 mm | 0.002 mm | 1/5" | 1 1/4" | €426.25 | |
 |
3908MA | Yellow | 0 to 100 | 0 mm to 0.2 mm | Metric | -0.002 mm to +0.002 mm | 0.002 mm | 1/5" | 1 14/25" | €461.84 |
