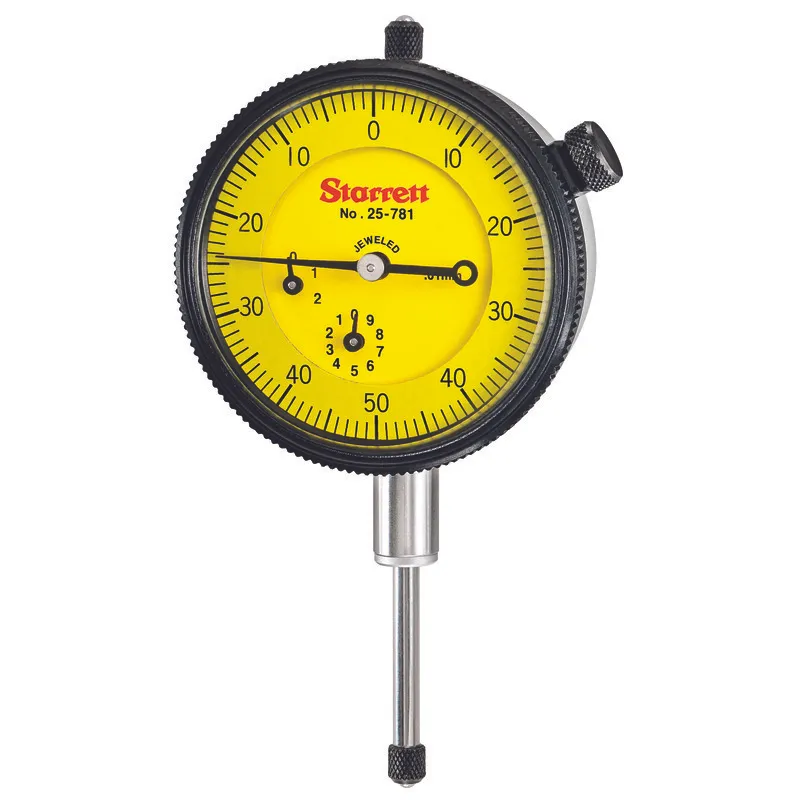

STARRETT 25-781J 53305 Indicator Dial, 0 to 25 mm Range, Continuous Reading, 0-50 Dial Reading, AGD 2, Jeweled
Item: CU4NPBModel: 25-781JCross Ref: 26Z508 / 53305
7 In Stock
Ships within 2 days via
10.00% off
€526.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indicator |
| Accuracy | -0.01 mm to +0.01 mm |
| Agd Number | AGD 2 |
| Back Type | Lug On Center |
| Bearing Type | Jeweled |
| Bezel Lock | Yes |
| Contact Point Dia. | 1/4" |
| Contact Point Shape | Radius |
| Dial Color | Yellow |
| Dial Reading | 0-50 |
| Dial Size | 2 1/4" |
| Dimension Type | Metric |
| Graduations | 0.01 mm |
| Includes Case | No |
| Long Form Calibration Certificate | No |
| Maximum Measurement | 25 mm |
| Min. Measurement | 0 mm |
| Non-magnetic | No |
| Number Of Indicators | 1 |
| Operation Type | Plunger |
| Range | 0 mm to 25 mm |
| Range Per Revolution | 1 mm |
| Reading | Continuous |
| Resolution | 0.01 mm |
| Shock Resistant | Yes |
| Standards | AGD |
| Stem Dia. | 3/8" |
| Stem Thread Size | #4-48 |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 15.75 |
| Ship width (cm) | 10.67 |
| HS code | 9031808080 |
| Country of Origin | US |
Product Variants
| Product | Model | Reading | Dial Reading | Graduations | Stem Dia. | Dial Color | Stem Thread Size | Range | Dimension Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
25-211J | Continuous | 0-10 | 0.0001" | 0.375" | White | #4-48 | 0" to 0.025" | Inch | €576.02 | |
 |
25-341/5J | Balanced | 0-50-0 | 0.001" | 0.375" | White | #4-48 | 0" to 0.5" | Inch | €414.80 | |
 |
25-441/5J | Continuous | 0-100 | 0.001" | 0.375" | White | #4-48 | 0" to 0.5" | Inch | €417.12 | |
 |
25-441J | Continuous | 0-100 | 0.001" | 3/8" | White | #4-48 | 0" to 1" | Inch | €355.68 | |
 |
25-481J | Continuous | 0-100 | 0.01 mm | 3/8" | Yellow | #4-48 | 0 mm to 10 mm | Metric | €485.21 | |
 |
25-881J | Continuous | 0-100 | 0.01 mm | 0.375" | Yellow | #4-48 | 0 mm to 25 mm | Metric | €487.76 | |
|
25-441J W/SLC | Continuous | 0-100 | 0.001" | 0.375" | White | #4-48 | 0" to 1" | Inch | €433.18 |
