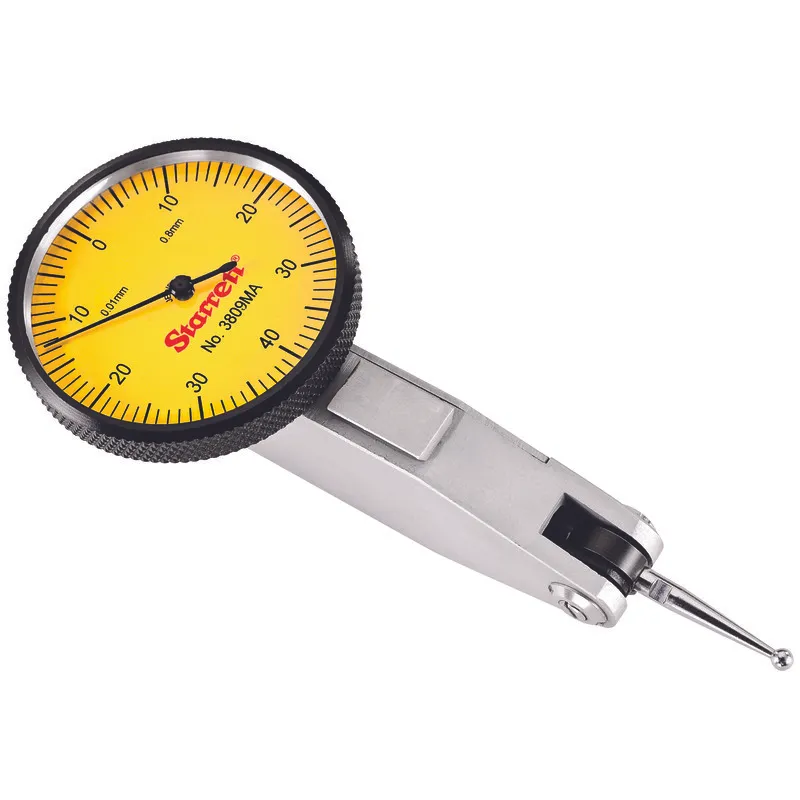

STARRETT 3809MAC 12307 Horizontal Dial Test Indicator, Horizontal, 0 mm to 0.8 mm Range, 0-40-0 Dial Reading
Item: CU4MZDModel: 3809MACCross Ref: 53VD58 / 12307
7 In Stock
Ships within 2 days via
5.00% off
€376.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Dial Test Indicator |
| Accuracy | -0.01 mm to +0.01 mm |
| Bearing Type | Jeweled |
| Contact Point Dia. | 2 mm, 4 mm |
| Contact Point Length | 1/2" |
| Contact Point Material | Steel |
| Contact Point Shape | Ball |
| Contact Point Style | Ball |
| Dial Color | Yellow |
| Dial Reading | 0 to 40 |
| Dial Size | 1 1/4" |
| Dimensions Type | Metric |
| Features | Three Dovetail Positioning Mounts Work With Most Existing Test Indicator Accessories |
| Graduations | 0.01 mm |
| Included | 4 Mm Swivel Post Holder, 9.5 Mm Dovetail Clamp, Contact Wrench, Tool Post Holder |
| Included Case | Yes |
| Included Dovetail Mount Attachments | Yes |
| Indicator Style | Horizontal |
| Long Form Calibration Certificate | No |
| Max. Measurement | 0.8 mm |
| Min. Measurement | 0 mm |
| Mounting Style | Dovetail |
| No. Of Indicators | 1 |
| Non Magnetic Tip | No |
| Operation Type | Lever Style |
| Range | 0 mm to 0.8 mm |
| Range Per Revolution | 4/5" |
| Reading | Balanced |
| Stylus Length | 0.1875", 20 mm |
| Test Indicator Style | Horizontal |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 9017308000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Range | Graduations | Dial Color | Operation Type | Dial Reading | Accuracy | Range Per Revolution | Dial Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3808AC | 0" to 0.008" | 0.0001" | White | Lever Style | 0-4-0 | -0.0001" to +0.0001" | 0.008" | 1 1/4" | €569.94 | |
 |
3908A | 0" to 0.008" | 0.0001" | White | Lever Style | 0-4-0 | -0.0001" to +0.0001" | 0.008" | 1 14/25" | €434.28 | |
|
3808A | 0" to 0.008" | 0.0001" | White | Lever Style | 0-4-0 | -0.0001" to +0.0001" | 0.008" | 1 1/4" | €386.26 | |
 |
3809A | 0" to 0.03" | 0.0005" | White | Lever Style | 0 to 15 | -0.0005" to +0.0005" | 0.03" | 1 1/4" | €263.53 | |
|
3809AC | 0" to 0.03" | 0.0005" | White | Lever Style | 0 to 15 | -0.0005" to +0.0005" | 0.03" | 1 1/4" | €384.23 | |
 |
3808MAC | 0 mm to 0.2 mm | 0.002 mm | Yellow | Lever Style | 0 to 100 | -0.002 mm to +0.002 mm | 1/5" | 1 1/4" | €592.38 | |
|
3808MA | 0 mm to 0.2 mm | 0.002 mm | Yellow | Lever Style | - | -0.002 mm to +0.002 mm | 1/5" | 1 1/4" | €426.25 |
