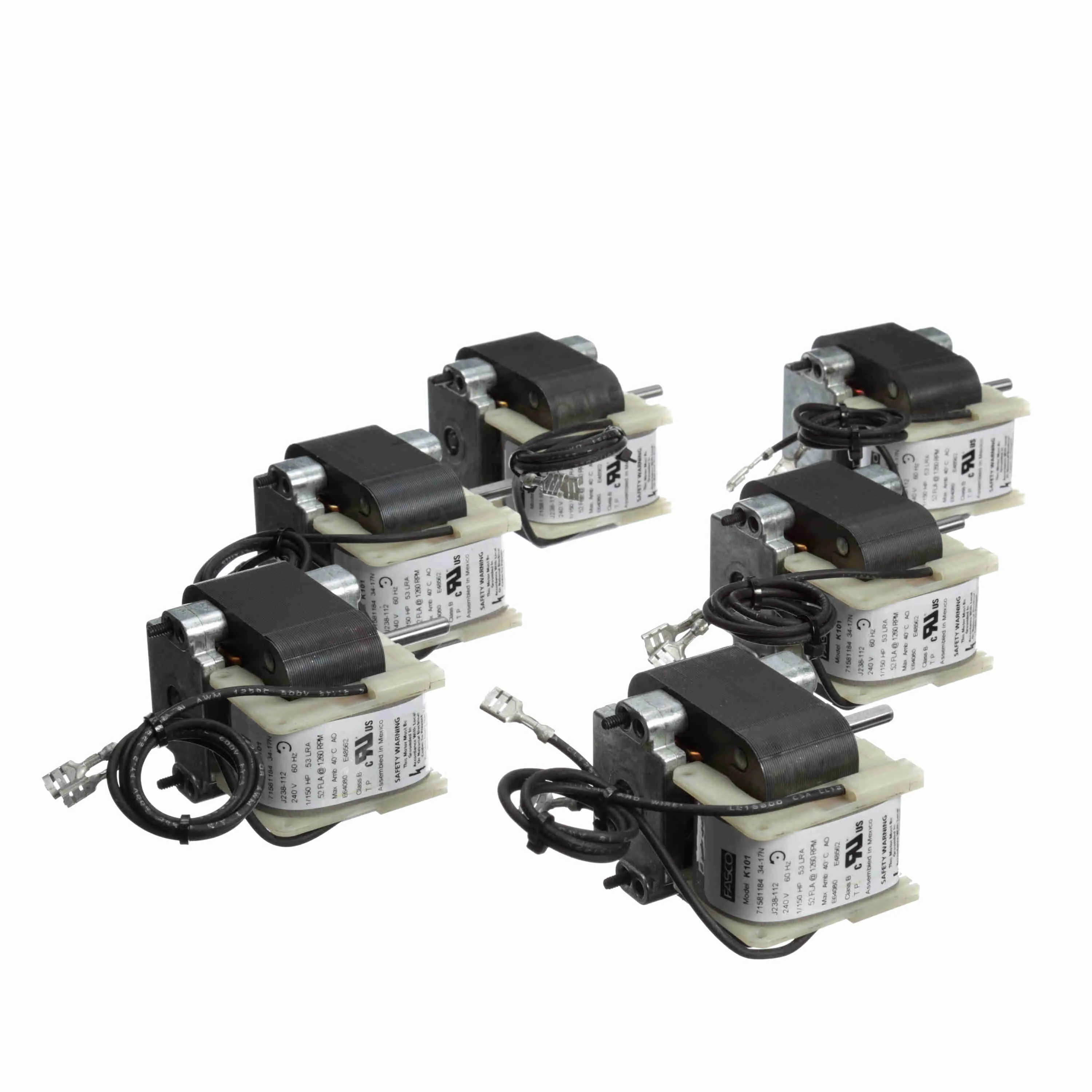

Dayton C-frame motors are ideal for powering small fans & blowers used in bathroom ventilation equipment, humidifiers, range hoods,...Read more

DAYTON -

Shaded Pole C-Frame Motors

DAYTON 4M067EA
DAYTON 4M080EB
DAYTON 4M209EC

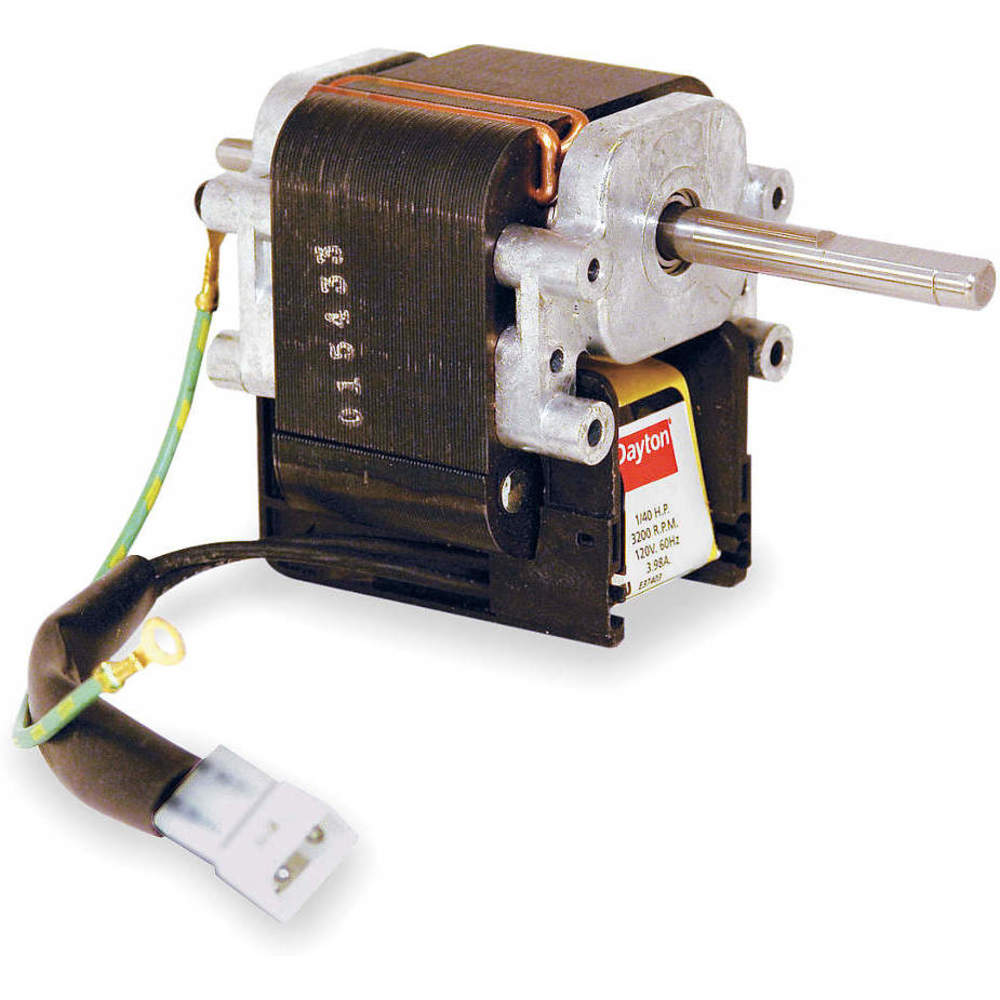

DAYTON 5M065ED
StyleModelVoltageHpNameplate RpmNo. Of SpeedsMotor Shaft RotationBearing TypeShaft Dia.Mounting TypePrice
A4M067E115V AC1/500 hp3000 RPM1Clockwise Shaft EndSleeve3/16"Extended Studs€33.37
A4M070E115V AC1/150 hp3000 RPM1Clockwise Shaft EndSleeve3/16"Extended Studs€38.55
A4M072E115V AC1/100 hp3000 RPM1Clockwise Shaft EndSleeve3/16"Extended Studs€45.25
A4M073E115V AC1/70 hp3000 RPM1Clockwise Shaft EndSleeve3/16"Extended Studs€44.74
A4M075E115V AC1/70 hp3000 RPM2Clockwise Shaft EndSleeve3/16"Extended Studs€44.74
A4M076E115V AC1/40 hp3000 RPM1Clockwise Shaft EndSleeve1/4"Extended Studs€57.53
A4M068E115V AC1/250 hp3000 RPM1Clockwise Shaft EndSleeve3/16"-€35.74
B4M080E115V AC1/40 hp3000 RPM1Clockwise Shaft EndBall1/4"Extended Studs€69.60
C4M209E120V AC1/150 hp2800 RPM1Counter Clockwise Shaft EndSleeve7/32"Stud€38.12
D5M065E120V AC1/40 hp3200 RPM1Clockwise Shaft EndBall7/32", 5/16"C Face, Footless€98.22
A5M064E120V AC1/20 hp3000 RPM1Clockwise Shaft EndSleeve1/4"Extended Studs€102.52
C4M212E120V AC1/125 hp2750 RPM1Clockwise Shaft EndSleeve3/16"Extended Studs€38.82
C4M211E120V AC1/150 hp2850 RPM1Clockwise Shaft EndSleeve3/16"Stud€41.00
C4M210E120V AC1/150 hp2800 RPM1Counter Clockwise Shaft EndSleeve3/16"Extended Studs€40.66
B4M078E120V AC1/150 hp3000 RPM1Clockwise Shaft EndBall3/16"Extended Studs€51.92
C4M180E120V AC1/150 hp2750 RPM1Clockwise Shaft EndSleeve7/32"Extended Studs€40.69
B4M079E120V AC1/70 hp3000 RPM1Clockwise Shaft EndBall3/16"Extended Studs€53.35
B4M077E120V AC1/250 hp3000 RPM1Clockwise Shaft EndBall3/16"Extended Studs€47.36
A4M074E230V AC1/70 hp3000 RPM1Clockwise Shaft EndSleeve3/16"Extended Studs€44.86
A4M071E230V AC1/150 hp3000 RPM1Clockwise Shaft EndSleeve3/16"Extended Studs€39.27
A4M069E230V AC1/250 hp3000 RPM1Clockwise Shaft EndSleeve3/16"Extended Studs€36.46
D5M066E230V AC1/40 hp3200 RPM1Clockwise Shaft EndBall7/32", 5/16"Hole€105.01
DAYTON -

Shaded Pole C-Frame Motor Kits

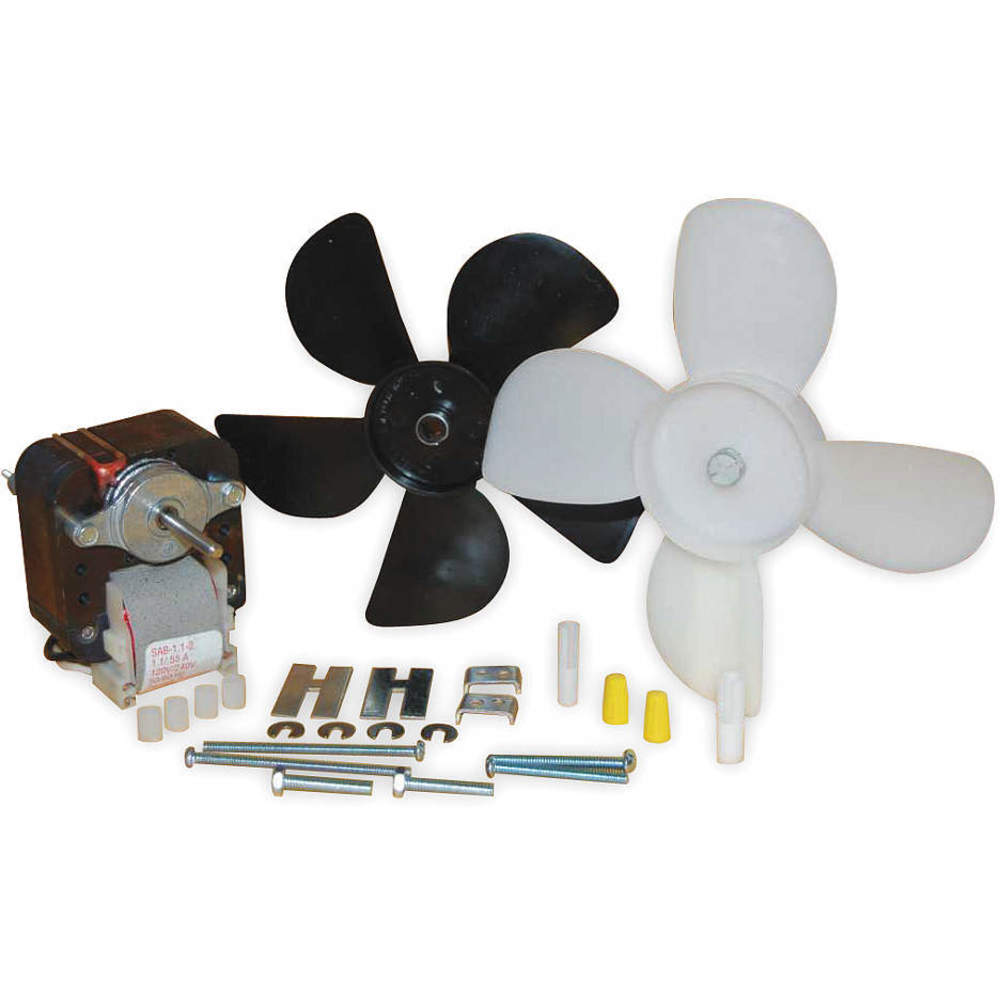

DAYTON 3HEH2A

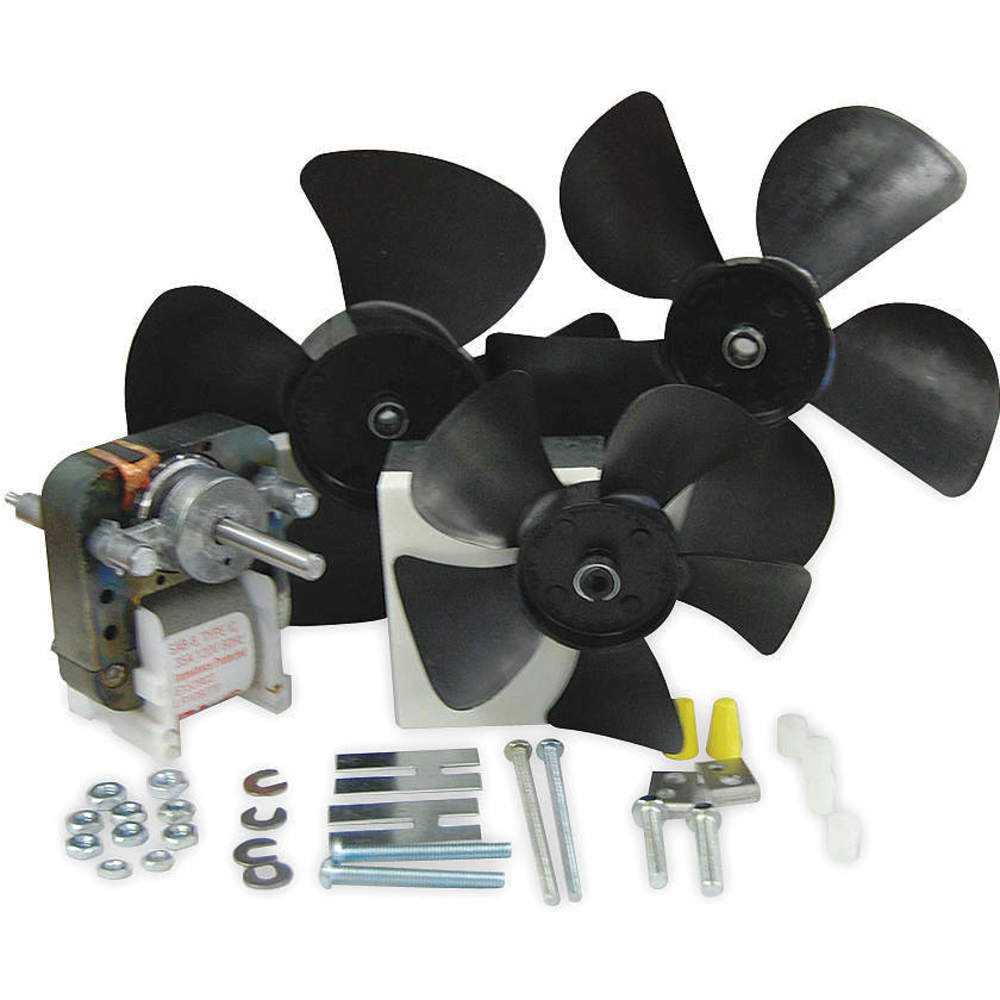

DAYTON 3HEH1B

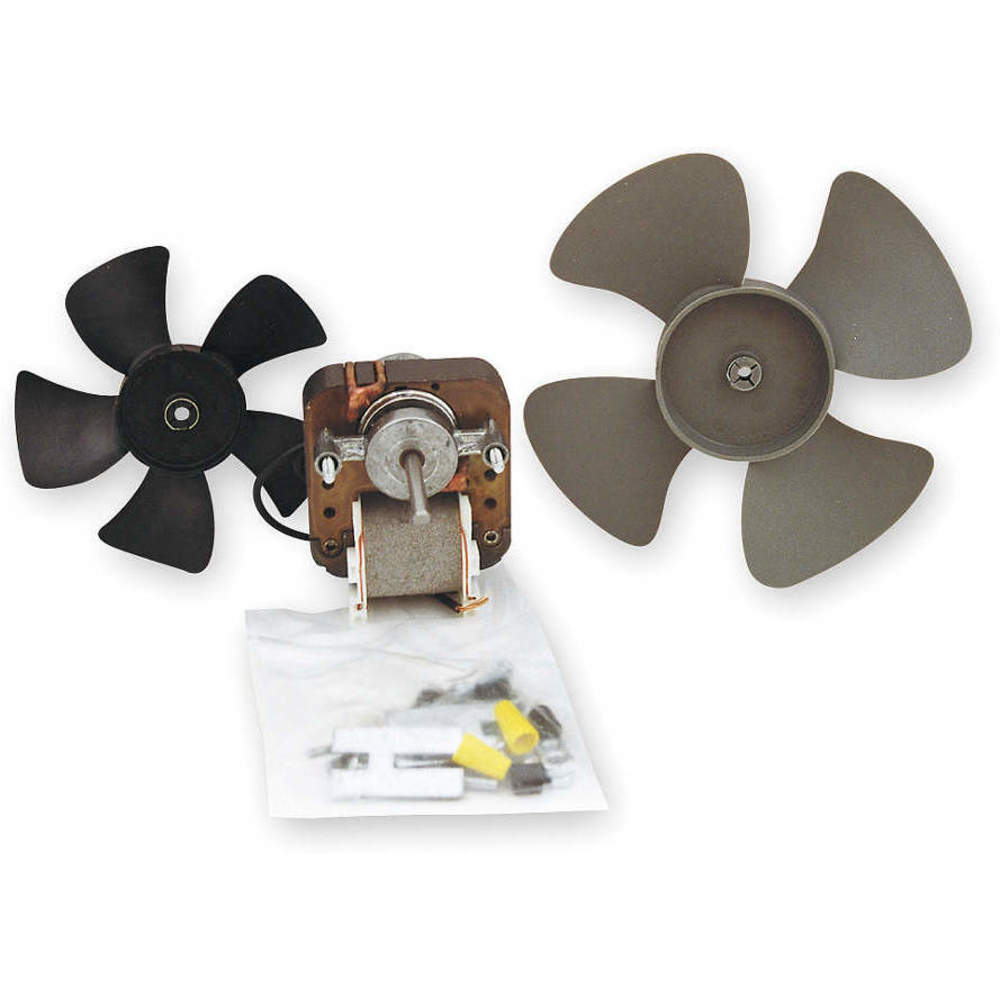

DAYTON 4M987C
StyleModelVoltageHpMounting TypeThermal ProtectionBearing TypeShaft Dia.Shaft LengthFull Load AmpsPrice
A3HEH2115/230V AC1/45 hpExtended StudsAutomaticSleeve3/16"1 5/16"1.1/0.55A€76.60
B3HEH1115V AC1/150 hpExtended StudsImpedanceBall1/4"1 3/8"0.35A€77.43
C4M987115V AC1/135 hpBracketImpedanceSleeve3/16"1 3/8"0.35A€51.31
FASCO -

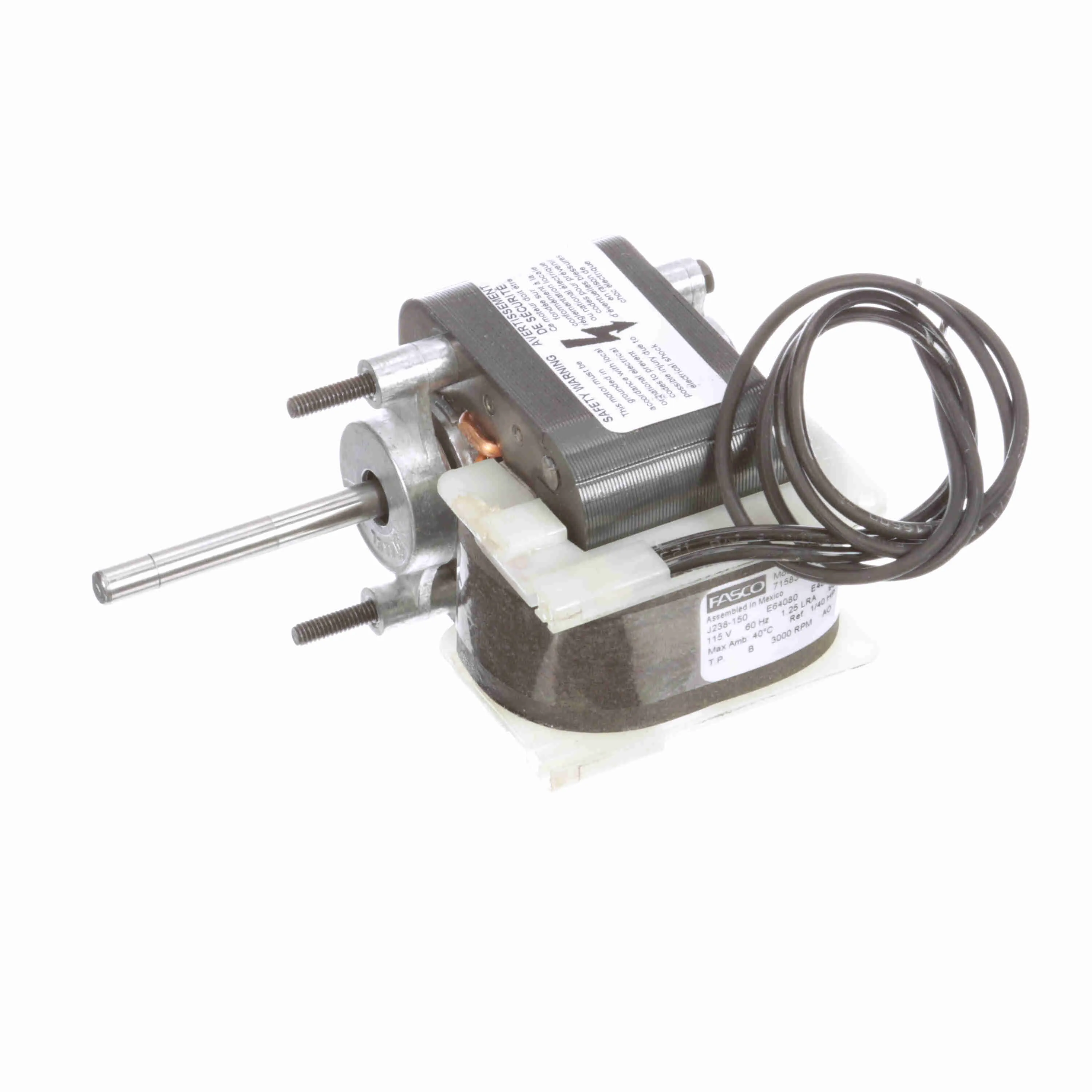

C-Frame / Skeleton Motor, 1/150 HP, 2750 rpm, 240 V

C-Frame / Skeleton Motor, 1/150 HP, 2750 rpm, 240 V
ModelItemPrice (ex. VAT)
K101EA2HUM€129.26
FASCO -

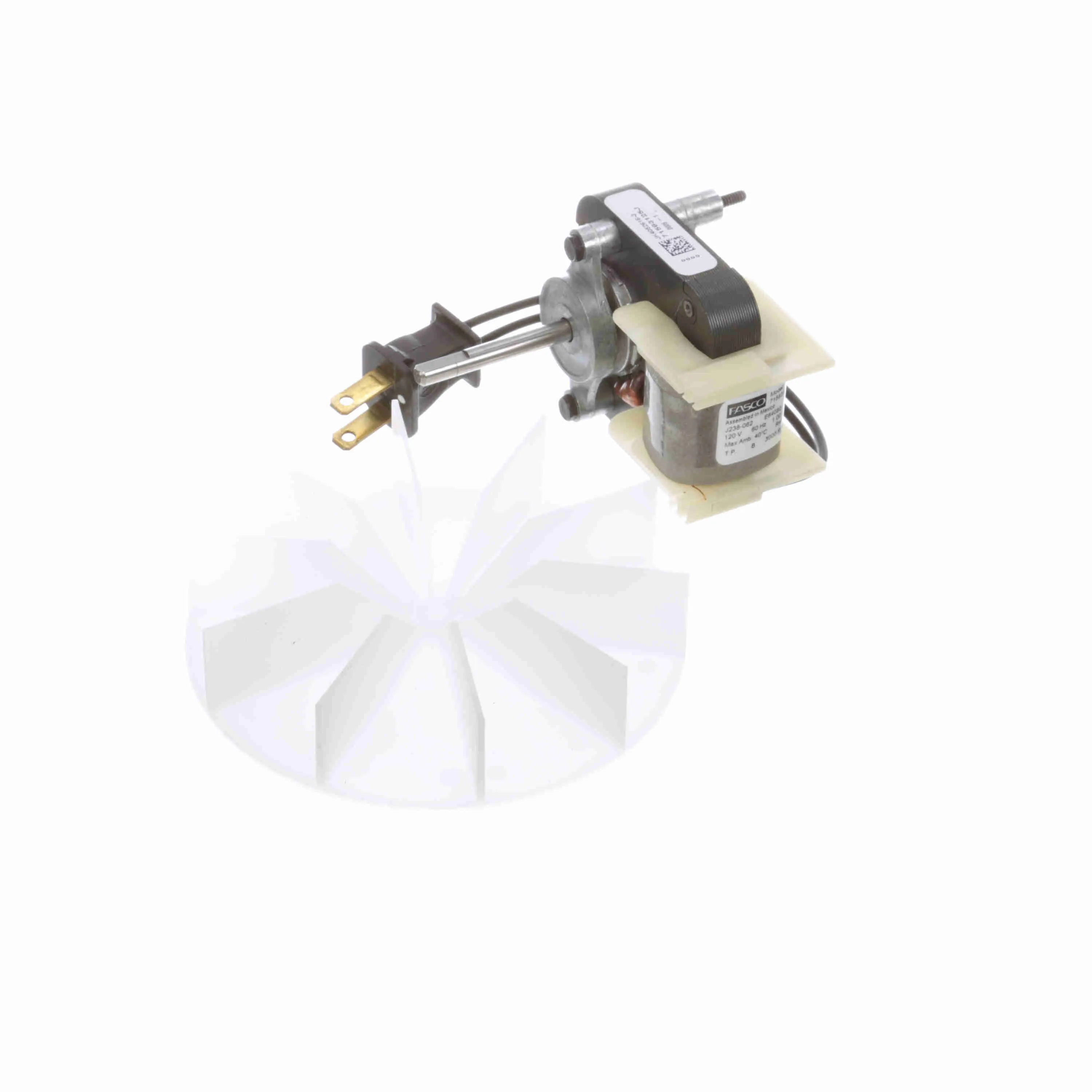

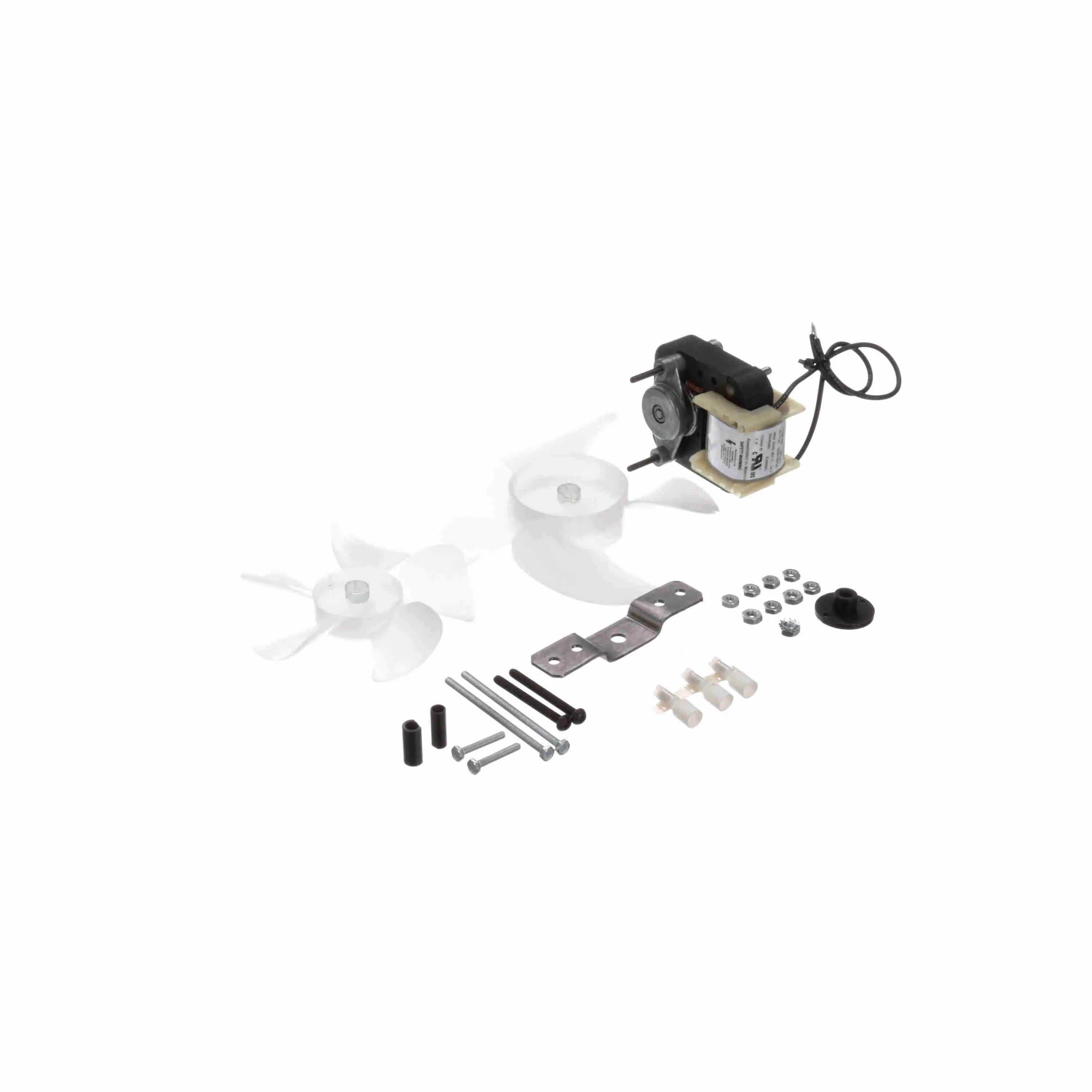

C-Frame / Skeleton Motor, 1/150 HP, 3000 rpm, 240 V

C-Frame / Skeleton Motor, 1/150 HP, 3000 rpm, 240 V
ModelItemPrice (ex. VAT)
K672EA2KUL€105.97
FASCO -

C-Frame / Skeleton Motor, 1/150 HP, 3000 rpm, 120 V

C-Frame / Skeleton Motor, 1/150 HP, 3000 rpm, 120 V
ModelItemPrice (ex. VAT)
K1670EA2KUK€72.80
FASCO -

C-Frame / Skeleton Motor, 1/120 HP, 3000 rpm, 120 V

C-Frame / Skeleton Motor, 1/120 HP, 3000 rpm, 120 V
ModelItemPrice (ex. VAT)
K1575EA2KUJ€74.68
FASCO -

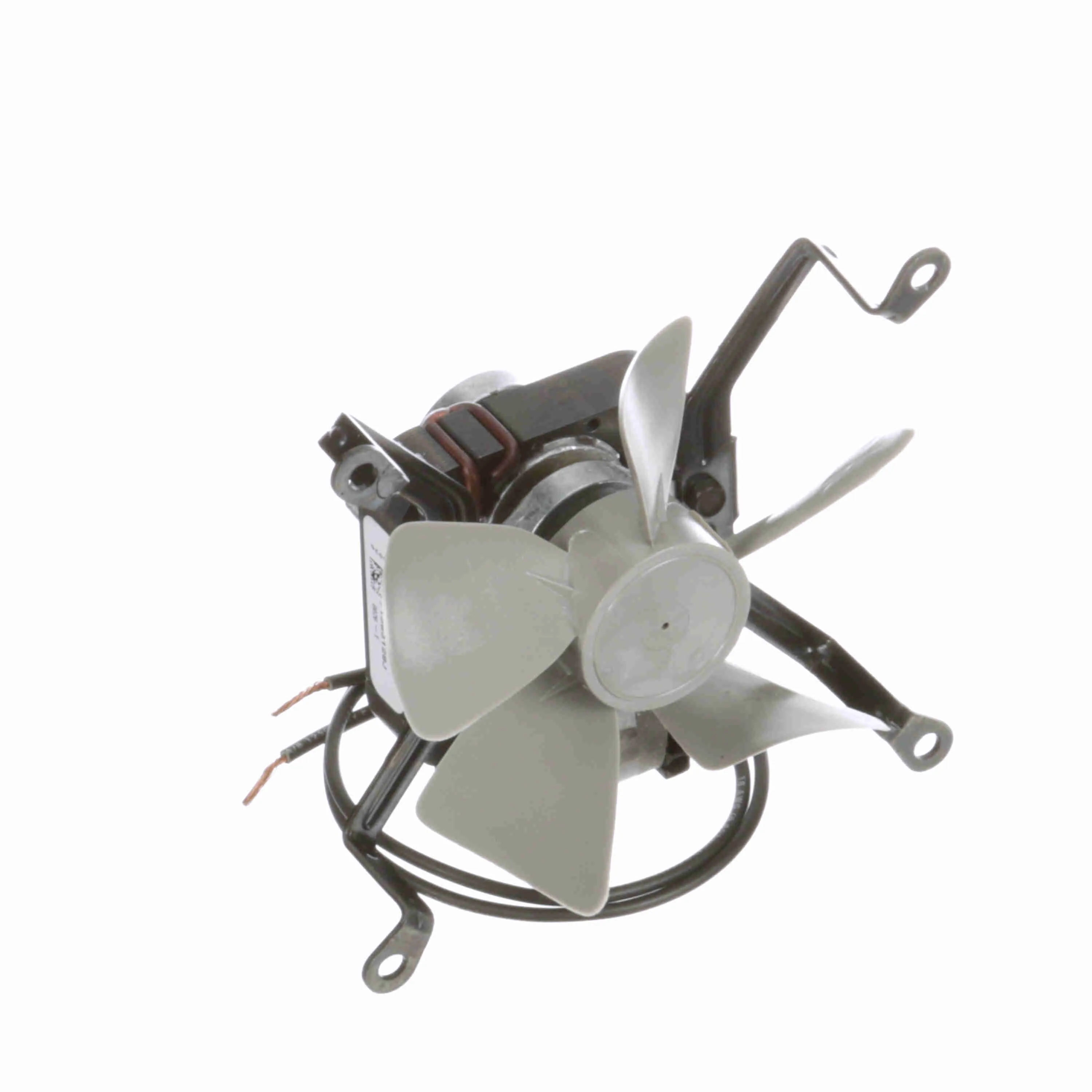

C-Frame / Skeleton Motor, 1/240 HP, 3000 rpm, 120 V

C-Frame / Skeleton Motor, 1/240 HP, 3000 rpm, 120 V
ModelItemPrice (ex. VAT)
K1574EA2KUH€139.40
FASCO -

C-Frame / Skeleton Motor, 1/20 HP, 3000 rpm, 120 V

C-Frame / Skeleton Motor, 1/20 HP, 3000 rpm, 120 V
ModelItemPrice (ex. VAT)
K146EA2KUG€84.52
FASCO -

C-Frame / Skeleton Motor, 1/40 HP, 3000 rpm, 120 V

C-Frame / Skeleton Motor, 1/40 HP, 3000 rpm, 120 V
ModelItemPrice (ex. VAT)
K144EA2KUF€65.53
FASCO -

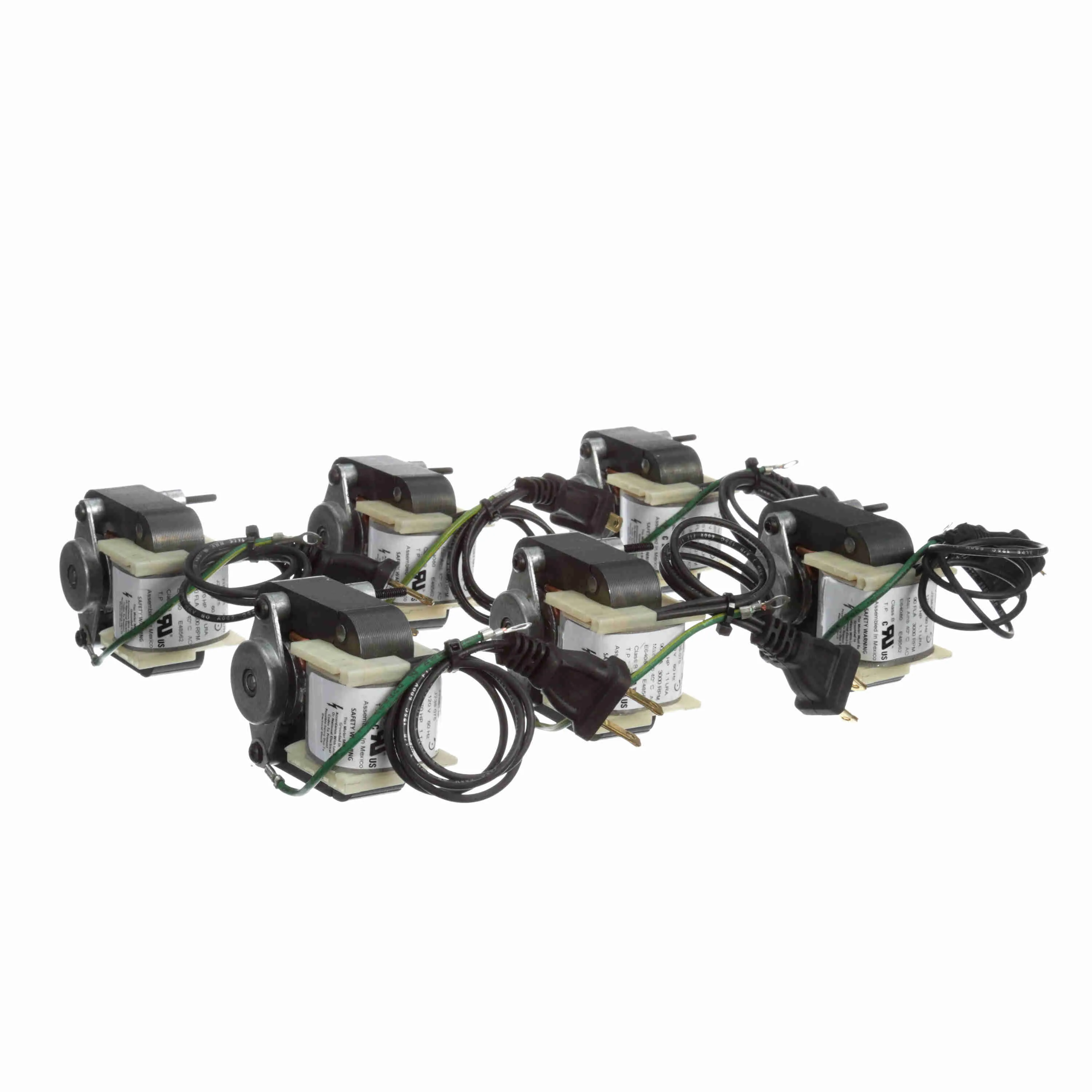

C-Frame / Skeleton Motor, 1/70 HP, 3000 rpm, 120 V

C-Frame / Skeleton Motor, 1/70 HP, 3000 rpm, 120 V
ModelItemPrice (ex. VAT)
K142EA2KUE€74.91
FASCO -

C-Frame / Skeleton Motor, 1/40 HP, 3000 rpm, 115 V

C-Frame / Skeleton Motor, 1/40 HP, 3000 rpm, 115 V
ModelItemPrice (ex. VAT)
K1322EA2KUC€178.51
FASCO -

C-Frame / Skeleton Motor, 1/65 HP, 3000 rpm, 120 V

C-Frame / Skeleton Motor, 1/65 HP, 3000 rpm, 120 V
ModelItemPrice (ex. VAT)
K612EA2JAH€66.12
FASCO -

C-Frame / Skeleton Motor, 1/60 HP, 3000 rpm, 120/240 V

C-Frame / Skeleton Motor, 1/60 HP, 3000 rpm, 120/240 V
ModelItemPrice (ex. VAT)
K1675EA2HYW€107.90
FASCO -

C-Frame / Skeleton Motor, 1/160 HP, 3000 rpm, 120 V

C-Frame / Skeleton Motor, 1/160 HP, 3000 rpm, 120 V
ModelItemPrice (ex. VAT)
K1700EA2HYV€77.35
FASCO -

C-Frame / Skeleton Motor, 1/85 HP, 3000 rpm, 120 V

C-Frame / Skeleton Motor, 1/85 HP, 3000 rpm, 120 V
ModelItemPrice (ex. VAT)
K629EA2HYF€194.33
FASCO -

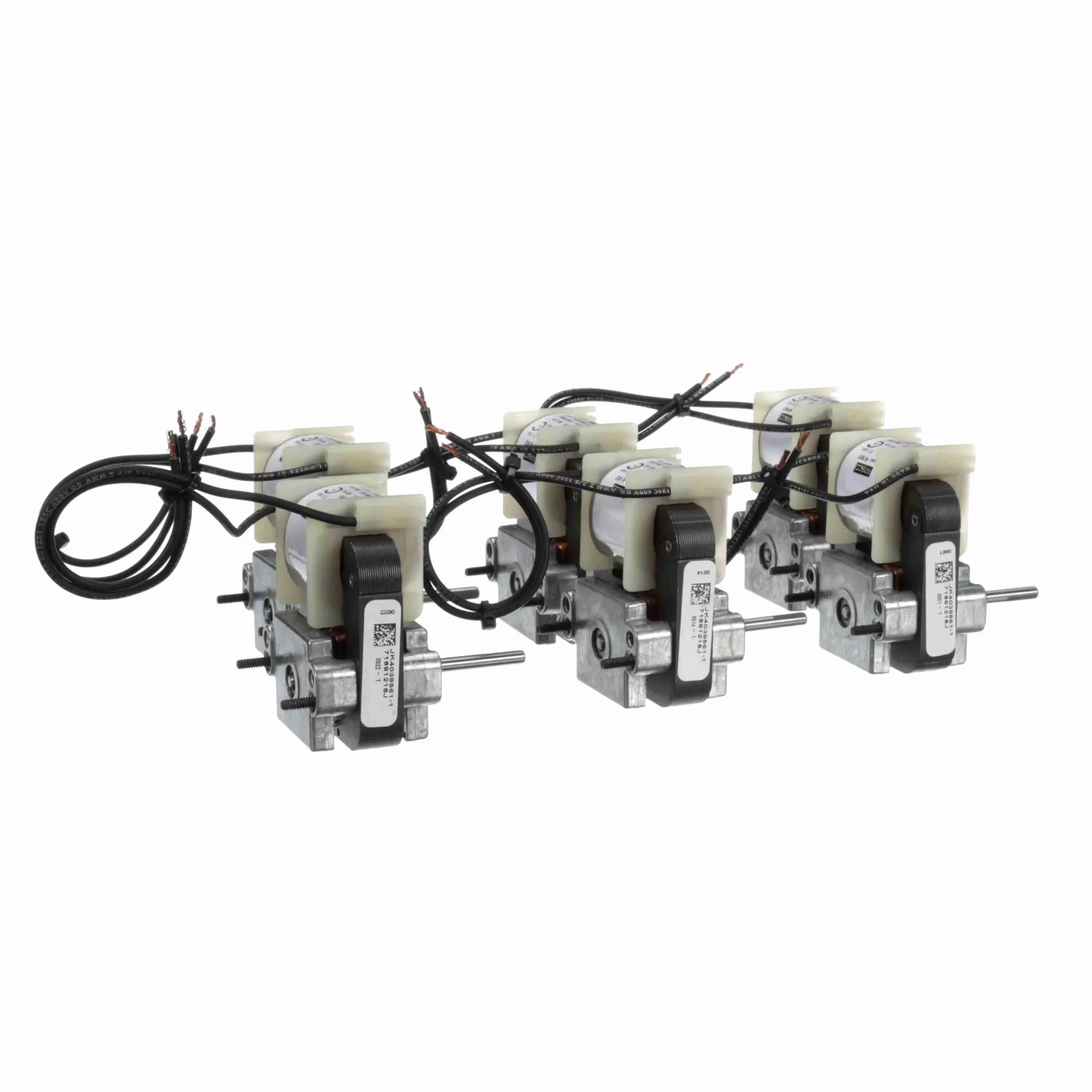

C-Frame / Skeleton Motor, 1/500 HP, 1260 rpm, 120 V

C-Frame / Skeleton Motor, 1/500 HP, 1260 rpm, 120 V
ModelItemPrice (ex. VAT)
K102EA2HUN€89.76
FASCO -

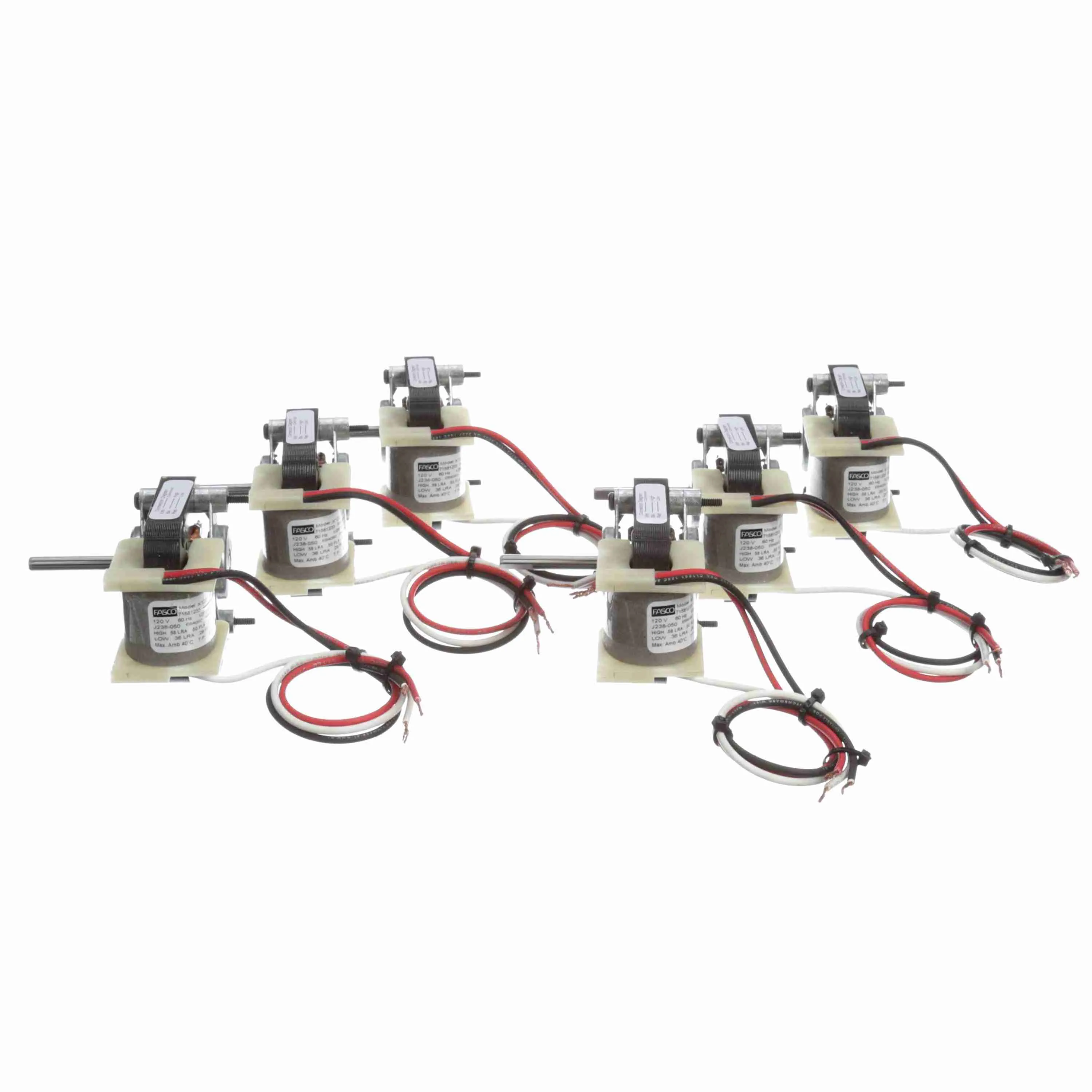

C-Frame / Skeleton Motor, 1/260 HP, 3000 rpm, 2 Speed, 120 V

C-Frame / Skeleton Motor, 1/260 HP, 3000 rpm, 2 Speed, 120 V
ModelItemPrice (ex. VAT)
K120EA2HUL€83.85
FASCO -

C-Frame / Skeleton Motor, 1/150 HP, 3000 rpm, 115 V

C-Frame / Skeleton Motor, 1/150 HP, 3000 rpm, 115 V
ModelItemPrice (ex. VAT)
K130EA2HUK€55.11
FASCO -

C-Frame / Skeleton Motor, 1/200 HP, 3000 rpm, 208/230 V

C-Frame / Skeleton Motor, 1/200 HP, 3000 rpm, 208/230 V
ModelItemPrice (ex. VAT)
K628EA2HWX€182.75
FASCO -

C-Frame / Skeleton Motor, 1/100 HP, 2850 rpm, 120 V

C-Frame / Skeleton Motor, 1/100 HP, 2850 rpm, 120 V
ModelItemPrice (ex. VAT)
K100EA2HVN€76.14
FASCO -

C-Frame / Skeleton Motor, 1/130 HP, 3000 rpm, 120 V

C-Frame / Skeleton Motor, 1/130 HP, 3000 rpm, 120 V
ModelItemPrice (ex. VAT)
K1323EA2KUD-
RFQ
12

Frequently Asked Questions

What are the speeds of rotation of these C-frame motors?

These Dayton C-frame motors have nameplate rotations ranging from 2750 to 3200 rpm.
