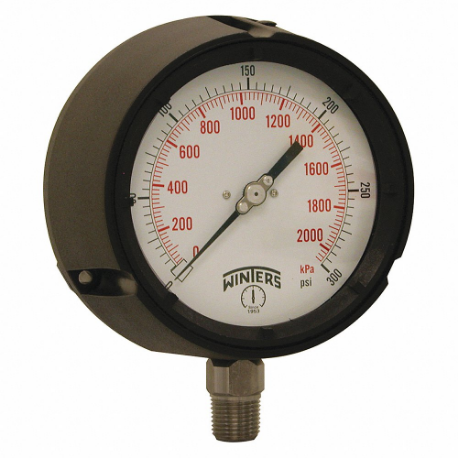

WINTERS INSTRUMENTS PPC5067G-SG45 Process Pressure Gauge, 0 To 300 Psi, White, 4 1/2 Inch DiaL, Liquid-Filled
Item: CV3TCMModel: PPC5067G-SG45Cross Ref: 491D25
7 In Stock
Ships within 2 days via
5.00% off
€290.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temp. | -4°F to +150°F |
| Application | Chemical Industries, Highly Corrosive, Oil And Gas Industry, Power Industries, Process Industries |
| Bezel Gasket Material | Silicone |
| Bezel Material | Phenolic |
| Blowout Safety Back | Yes |
| Bolt Circle Dia. | 5.39" |
| Case Color | Black |
| Case Construction | Solid Wall |
| Case Depth | 3.4" |
| Case Dia. | 5.835" |
| Case Material | Phenolic |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Chemicals, Highly Corrosive Media, Petroleum Products |
| Dial Color | White |
| Dial Face Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | Not Available |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 2A Process |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Phenolic |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Included Calibration Certificate | No |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Safety Glass |
| Lens Material Gauge | Safety Glass |
| Liquid-filled Case | Yes |
| Material Grade | Grade 316L |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Movement Type | Rotary |
| Nominal Dial Size | 4 1/2" |
| Non Sparking | No |
| Over Pressure Limit | 25% |
| Panel Mount Characteristics | 3 0.240 In Dia Holes On 5.390 In Dia Bolt Circle |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 300 psi |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 300 psi |
| Primary Scale Minor Graduations | 10, 100 |
| Primary Scale Numeric Increments | 50, 200 |
| Primary Scale Units | PSI |
| Process Connection | 1/2" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/2" |
| Process Connection Type | NPT |
| Process Temp. | -40°F to +250°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 2100 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | 316L Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | PPC Series |
| Socket Material | 316L Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Wetted Material | Stainless Steel |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 1.65 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Model | Vibration Resistance | Socket Material | Sensor Material | Primary Scale Units | Scale Type | Field Fillable | Gauge Wetted Parts | Accuracy Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PPC5121WBG | Liquid Filled | Brass | Phosphor Bronze | In. Hg/psi | Dual | No | Brass, Bronze | ASME B40.100 Grade 2A | €669.24 | |
| PPC5131R1WBG | Liquid Filled | Stainless Steel | Stainless Steel | In. Hg/psi | Single | No | Stainless Steel | ASME B40.100 Grade 2A | €669.24 | |
| PPC5131R1WBY | - | Stainless Steel | Stainless Steel | In. Hg/psi | Single | No | Stainless Steel | ASME B40.100 Grade 2A | €320.62 | |
| PPC5121WBY | Liquid Filled | Brass | Phosphor Bronze | In. Hg/psi | Dual | No | Brass, Bronze | ASME B40.100 Grade 2A | €245.00 | |
| PPC5131R1WBYG | Liquid Filled | Stainless Steel | Stainless Steel | In. Hg/psi | Single | No | Stainless Steel | ASME B40.100 Grade 2A | €320.62 | |
| PPC5121WBYG | Liquid Filled | Brass | Phosphor Bronze | In. Hg/psi | Dual | No | Brass, Bronze | ASME B40.100 Grade 2A | €245.00 | |
| PPC5131R1WBW | Liquid Filled | Stainless Steel | Stainless Steel | In. Hg/psi | Single | No | Stainless Steel | ASME B40.100 Grade 2A | €669.24 |
