WINTERS INSTRUMENTS PPC5121WBG Process Compound Gauge, Glow-In-The-Dark White, 30 To 0 To 30 Inch Hg/Psi
Item: CV3TARModel: PPC5121WBGCross Ref: 489H86
7 In Stock
Ships within 2 days via
10.00% off
€602.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compound Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | Adjustable Main Pointer |
| Ambient Operating Temperature Range | -40°F to +250°F |
| Ambient Temp. Range | -40°F to +250°F |
| Application | Chemical Industries, Highly Corrosive, Oil And Gas Industry, Power Industries, Process Industries |
| Bezel Gasket Material | Silicone |
| Bezel Material | Phenolic |
| Blowout Safety Back | Yes |
| Bolt Circle Dia. | 5.39" |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Solid Front |
| Case Dia. | 5.835" |
| Case Material | Phenolic |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Chemicals, Highly Corrosive Media, Petroleum Products |
| Dial Color | Glow in the Dark White |
| Dial Face Color | Custom Dial |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 2A Process |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Phenolic |
| Gauge Wetted Parts | Brass, Bronze |
| Glow In The Dark | Yes |
| Hazardous Location Rating | Not Rated |
| Includes | Glow-In-The-Dark White Dial, Micrometer Adjustable Pointer, Solid Front Case |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | IP65 |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | Yes |
| Manufacturer Warranty Length | 5 yrs. |
| Mfr. Series | PPC |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 4 1/2" |
| Non-sparking | No |
| Over-pressure Limit | 25% |
| Panel Mount Characteristics | 3 0.24" Dia Holes On 5.39" Dia Bolt Circle |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range Type | Compound |
| Primary Pressure Range | 0 psi to 30 psi |
| Primary Scale Units | In. Hg/psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 210 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PPC Series |
| Socket Material | Brass |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Brass OT58, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 14.82 |
| Ship width (cm) | 14.82 |
| Country of Origin | CN |
Product Variants
| Model | Pressure Range Type | Vibration Resistance | Pressure Range | Socket Material | Sensor Material | Primary Scale Units | Scale Type | Field Fillable | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PPC5131R1WBG | Compound | Liquid Filled | - | Stainless Steel | Stainless Steel | In. Hg/psi | Single | No | €669.24 | |
| PPC5131R1WBY | Compound | - | - | Stainless Steel | Stainless Steel | In. Hg/psi | Single | No | €320.62 | |
| PPC5121WBY | Compound | Liquid Filled | 30 psi to 0 psi to 30 psi | Brass | Phosphor Bronze | In. Hg/psi | Dual | No | €245.00 | |
| PPC5131R1WBYG | Compound | Liquid Filled | - | Stainless Steel | Stainless Steel | In. Hg/psi | Single | No | €320.62 | |
| PPC5121WBYG | Compound | Liquid Filled | 30 psi to 0 psi to 30 psi | Brass | Phosphor Bronze | In. Hg/psi | Dual | No | €245.00 | |
| PPC5131R1WBW | Compound | Liquid Filled | - | Stainless Steel | Stainless Steel | In. Hg/psi | Single | No | €669.24 | |

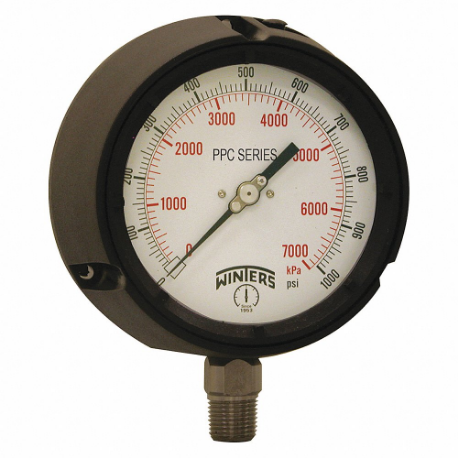

| PPC5070-SG45 | Pressure | Field Fillable | 0 psi to 1000 psi | Stainless Steel | Stainless Steel | Psi | Dual | Yes | €299.63 |
