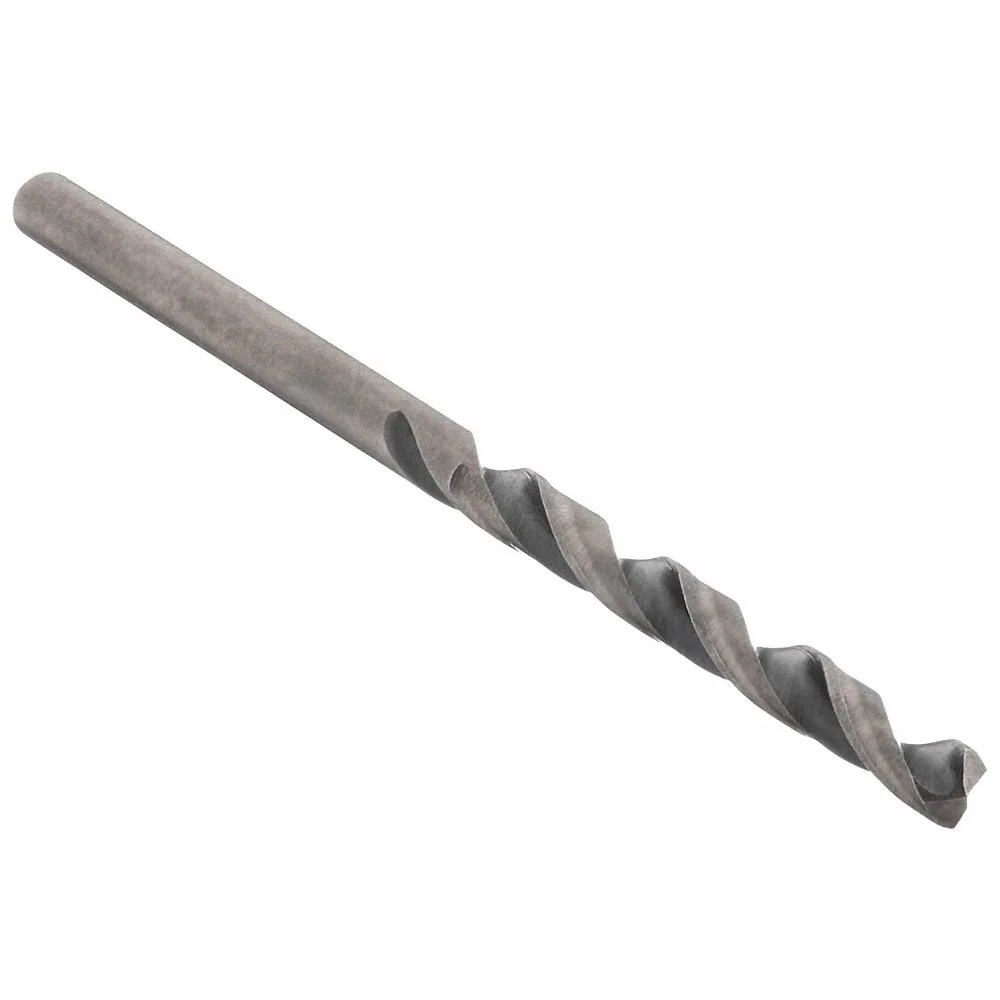

WESTWARD 5UDD0 Jobber Length Drill Bit, 7/64 Inch Size, 135 Deg. Split Point, Black & Gold HSS
Item: AE6NJWModel: 5UDD0
7 In Stock
2 5/8"
Ships within 2 days via
13.00% off
€3.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | No |
| Color | Black, Gold |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1094 |
| Depth Dia. Ratio | 4Xd |
| Dimensions Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 7/64" |
| Drill Dia. Tolerance | -0" to +0.0005" |
| Drill Length Class | Jobber Length |
| Finish-machining | Black, Gold |
| Flute Length | 1 1/2" |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | +21° to +34° |
| List Number | Westward |
| Material | High Speed Steel |
| Material Grade-machining | HIGH PERFORMANCE |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 1 1/8" |
| No. Of Coolant Holes | 0 |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 2 5/8" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 0.109" |
| Shank Length | 1 1/8" |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 0.51 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 7.11 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Max. Drilling Depth | Flute Length | Finish-machining | Drill Bit Size | Finish | Shank Length | Drill Dia. Tolerance | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2UFE1 | 2 19/64" | 3 1/16" | Black Oxide | 19/64" | Black Oxide | 1 5/16" | -0.001" to 0" | - | €5.03 | |
| 2UFE2 | 2 31/64" | 3 5/16" | Black Oxide | 21/64" | Black Oxide | 1 5/16" | -0.001" to 0" | - | €7.33 | |
| 2UFE3 | 2 9/16" | - | Black Oxide | 11/32" | Black Oxide | 1 5/16" | -0.001" to 0" | - | €11.21 | |
| 2UFE4 | 2 5/8" | 3 1/2" | Black Oxide | 23/64" | Black Oxide | 1 3/8" | -0.001" to 0" | - | €8.55 | |
| 2UFE5 | 2 29/32" | 3 7/8" | Black Oxide | 13/32" | Black Oxide | 1 3/8" | -0.001" to 0" | - | €8.37 | |
| 2UFE6 | 2 15/16" | 3 15/16" | Black Oxide | 27/64" | Black Oxide | 1 7/16" | -0.001" to 0" | - | €12.47 | |
| 2UFE7 | 3 3/64" | 4 1/16" | Black Oxide | 7/16" | Black Oxide | 1 7/16" | -0.001" to 0" | - | €18.06 |
