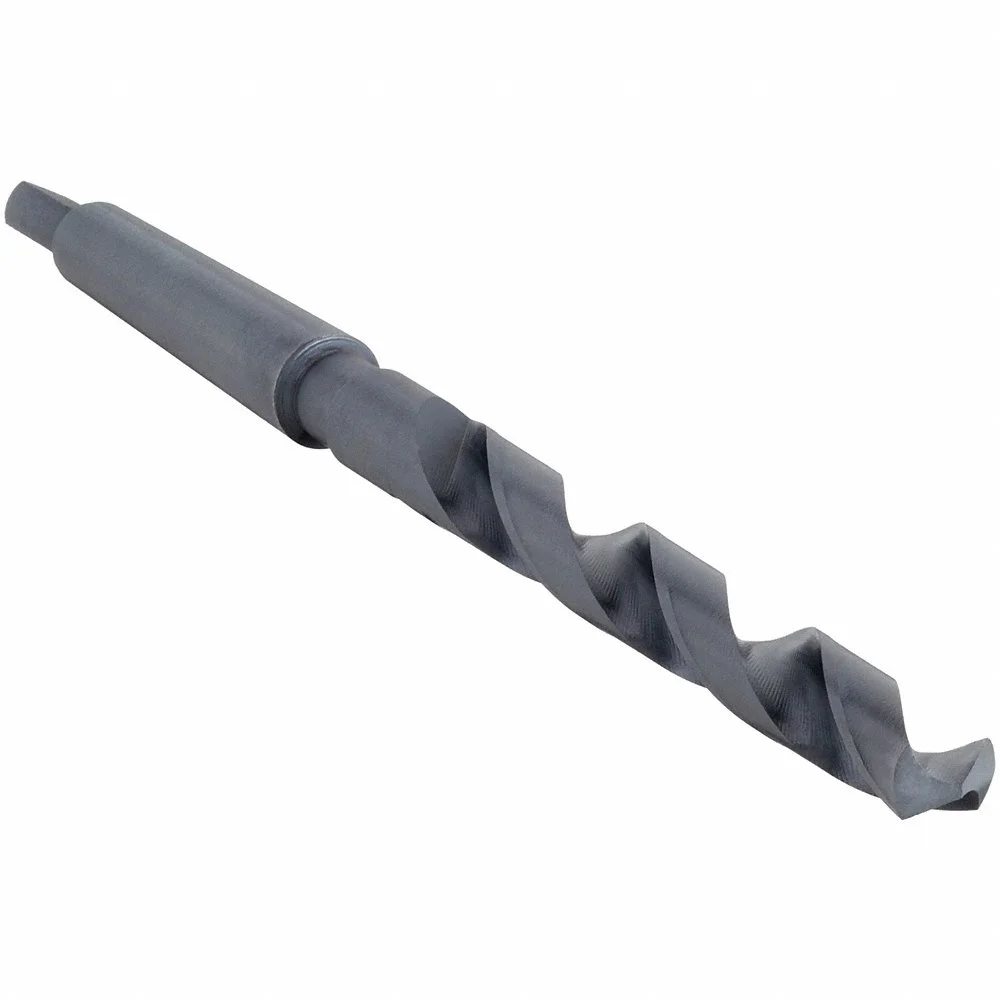

WESTWARD 5TVE6 Taper Shank Drill Bit, 3/8 Inch Size, 118 Deg. Point, Black Oxide HSS, MT1 Shank
Get it by Wednesday, Jul 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Taper Shank Drill |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right |
| Decimal Equivalent | 0.375 |
| Dimensions Type | Fractional Inch |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 3/8" |
| Drill Point | 118° |
| Finish | Black Oxide |
| Finish-machining | Black Oxide |
| Flute Length | 3 1/2" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Material | High Speed Steel |
| Material Grade-machining | General Purpose |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 3 1/2" |
| Measurement System | Fractional Inch |
| Morse Taper | #1 |
| No. Of Pieces | 1 |
| Point Type | Conventional Point |
| Shank Dia. | 12/25" |
| Shank Length | 2.578" |
| Shank Type-machining | Taper |
| Size | 3/8" |
| Standards | Not Rated |
| Tang Length (in.) | 0.37" |
| Tang Length (in.) | 0.37 |
| Tang Radius (in.) | 0.1969" |
| Tang Radius (in.) | 0.1968503937007874 |
| Tang Width | 0.2047" |
| Tang Width (in.) | 0.20472440944881892 |
| Taper Length | 2.4409" |
| Taper Length (in.) | 2.440944881889764 |
| Taper Shank Size | #1 |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.6 |
| Ship length (cm) | 24 |
| Ship width (cm) | 12 |
| HS code | 8207502055 |
| Country of Origin | CN |
Product Variants
| Product | Model | Size | Decimal Equivalent | Flute Length | Overall Length | Shank Dia. | Shank Length | Morse Taper | Fractional Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5TVE9 | 0.469" | 0.4688 | 4 1/8" | 7 1/2" | 12/25" | 2.578" | #1 | 0.469" | - | RFQ
|
 |
5TVF2 | 0.562" | 0.5625 | 4 7/8" | 8 3/4" | 0.708" | 3.149" | #2 | 0.562" | €56.89 | |
 |
5TVF4 | 5/8" | 0.625 | 4 7/8" | 8 3/4" | 0.708" | 3.149" | #2 | 5/8" | €57.23 | |
|
5TVF7 | 0.719" | 0.7188 | 5 5/8" | 9 1/2" | 0.708" | 3.149" | #2 | 0.719" | €73.66 | |
|
5TVF8 | 3/4" | 0.75 | 5 7/8" | 9 3/4" | 0.708" | 3.149" | #2 | 3/4" | €76.86 | |
|
5TVG2 | 7/8" | 0.875 | 6 1/8" | 10 3/4" | 0.948" | 3.897" | #3 | 7/8" | €98.99 | |
|
5TVG5 | 0.969" | 0.9688 | - | 11" | 0.948" | 3.897" | #3 | 0.969" | - | RFQ
|
