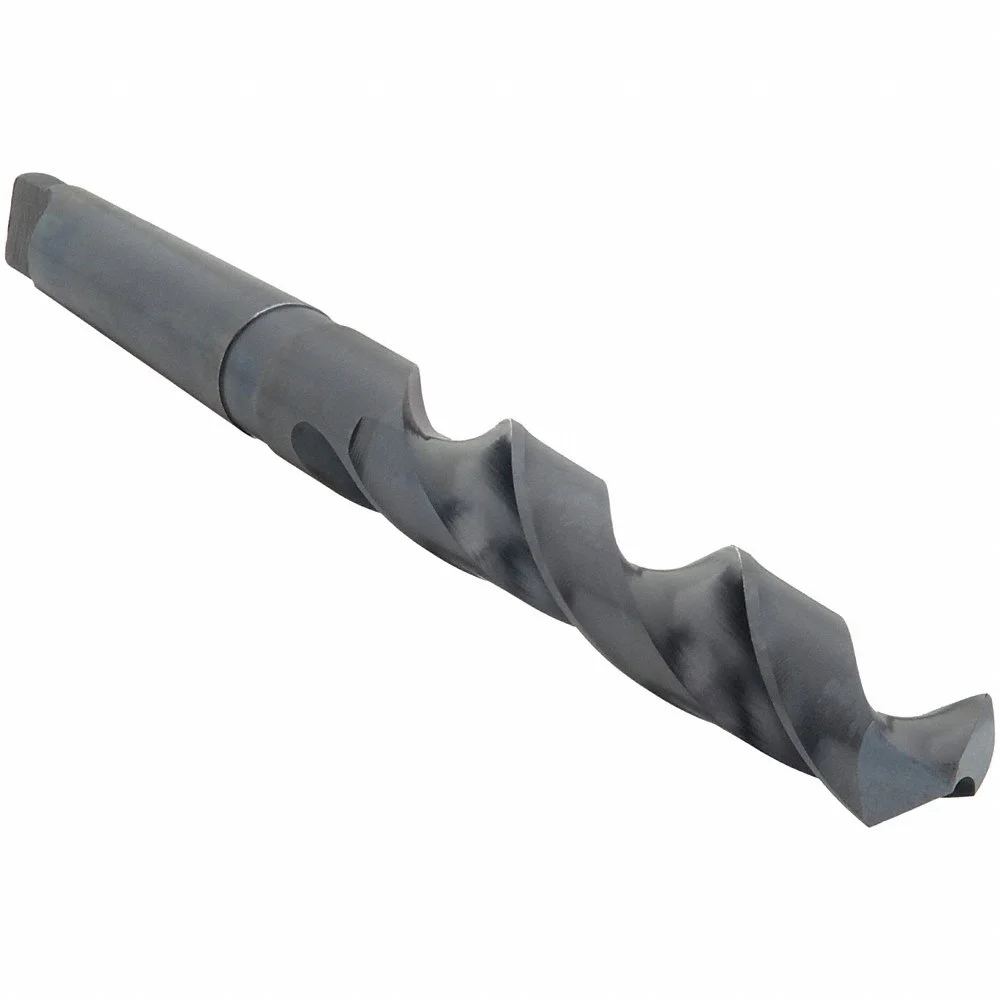

WESTWARD 5TVF4 Taper Shank Drill 5/8 #2 Morse Taper Black Oxide
Item: AE6LMNModel: 5TVF4
7 In Stock
Ships within 2 days via
10.00% off
€60.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Shank Drill |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.625 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 5/8" |
| Drill Point | 118° |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 4 7/8" |
| Flute Type | Spiral |
| Fractional Size | 5/8" |
| Grade | General Purpose |
| Helix Angle | 32° |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 4 7/8" |
| Morse Taper | #2 |
| Number Of Flutes | 2 |
| Number Of Pieces | 1 |
| Overall Length | 8 3/4" |
| Point Type | Conventional Point |
| Primary Material Application | Ferrous Material |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Non Ferrous Material |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 0.708" |
| Shank Length | 3.149" |
| Shank Type - Machining | Taper |
| Size | 5/8" |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
| Tang Length (in.) | 0.37" |
| Tang Length (in.) | 0.37 |
| Tang Radius (in.) | 0.2362204724409449 |
| Tang Radius (in.) | 0.2362" |
| Tang Width (in.) | 0.248" |
| Tang Width (in.) | 0.24803149606299213 |
| Taper Length (in.) | 2.952755905511811 |
| Taper Length (in.) | 2.9528" |
| Taper Shank Size | 18 mm |
| Taper Shank Type | #2 Morse Taper |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.4 |
| Ship length (cm) | 32 |
| Ship width (cm) | 17.5 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Product | Model | Size | Decimal Equivalent | Flute Length | Overall Length | Primary Material Application | Coolant Fed | Shank Dia. | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5TVE6 | 3/8" | 0.375 | 3 1/2" | - | - | Non Coolant Through | 12/25" | 2.578" | €38.32 | |
|
5TVE9 | 0.469" | 0.4688 | 4 1/8" | 7 1/2" | - | Non-Coolant Through | 12/25" | 2.578" | €41.29 | |
 |
5TVF2 | 0.562" | 0.5625 | 4 7/8" | 8 3/4" | - | Non-Coolant Through | 0.708" | 3.149" | €75.65 | |
|
5TVF7 | 0.719" | 0.7188 | 5 5/8" | 9 1/2" | - | Non-Coolant Through | 0.708" | 3.149" | €109.21 | |
|
5TVF8 | 3/4" | 0.75 | 5 7/8" | 9 3/4" | - | Non-Coolant Through | 0.708" | 3.149" | €105.89 | |
|
5TVG2 | 7/8" | 0.875 | 6 1/8" | 10 3/4" | - | Non-Coolant Through | 0.948" | 3.897" | €117.74 | |
|
5TVG5 | 0.969" | 0.9688 | - | 11" | - | Non-Coolant Through | 0.948" | 3.897" | €82.79 |
