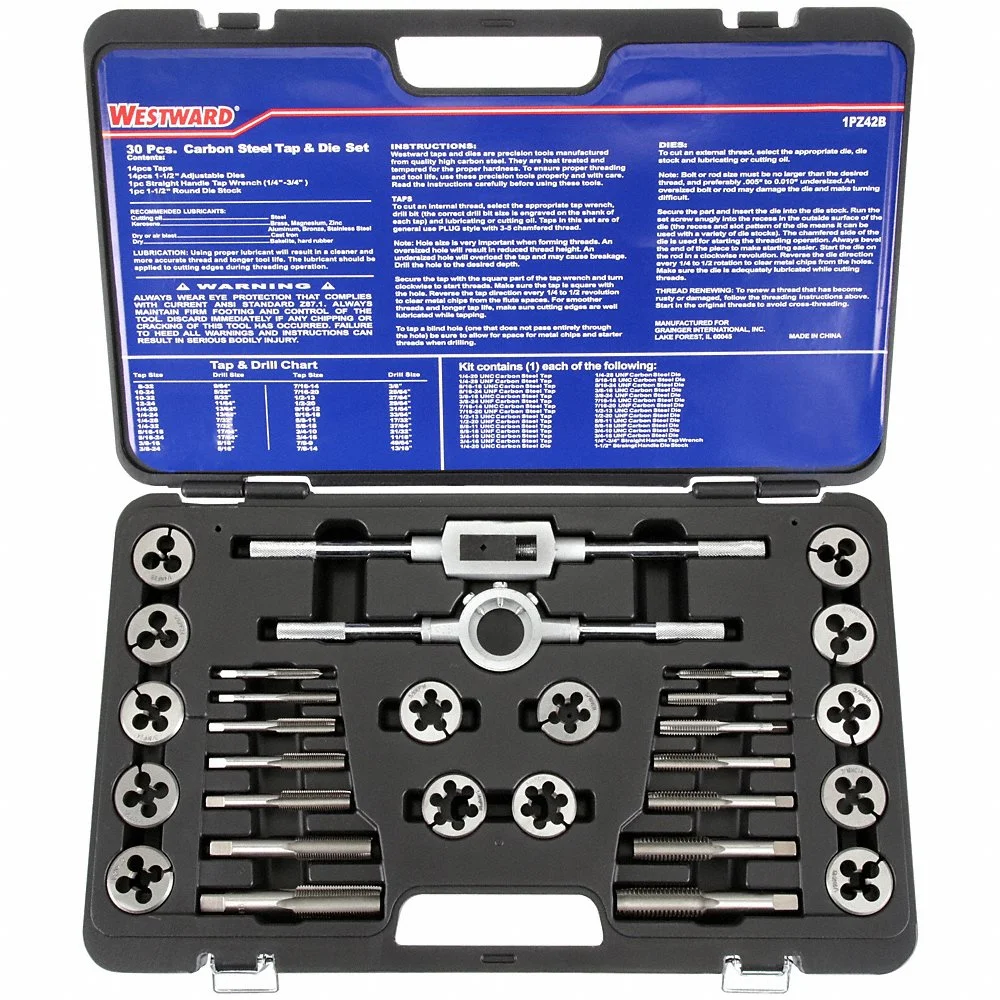

WESTWARD 1PZ42 Tap/die Set 30 Pieces
Item: AB2ZMNModel: 1PZ42
7 In Stock
Ships within 2 days via
10.00% off
€219.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap and Die Set |
| Case Type | Plastic Case |
| Class Of Fit | Class 2A |
| Coolant Fed | Non-Coolant Through |
| Cutting Sizes | 14 |
| Die Finish | Bright (Uncoated) |
| Die Material | Carbon Steel |
| Die Shape | Round |
| Die Thread Sizes Included | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16 |
| Die Type | 1-1/2" OD Adjustable (No. 1PZ42) 1-1/2" OD Solid (No. 1PZ35) |
| Die Type | Adjustable |
| Dimensions Standard | ANSI B1.1 |
| Extended Neck | No |
| Extended Shank | No |
| Extension Tap | No |
| Includes | Straight Handle Tap Wrench, Die Stock, Plastic Case |
| Material | Carbon Steel |
| Material - Machining | Carbon Steel |
| Max. Die Thread Size | 3/4"-16 |
| Max. Tap Thread Size | 3/4"-16 |
| Min. Tap Thread Size | 1/4"-20 |
| No. Of Pieces | 30 |
| Number Of Dies In Set | 14 |
| Number Of Flutes | 14 |
| Number Of Pieces | 30 |
| Primary Material Application | Ferrous Metal |
| Primary Material Application Iso Code | H |
| Sae Or Metric | SAE |
| Size/range | 1/4 to 3/4" |
| Sizes | 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 5/8-11, 5/8-18, 3/4-10, 3/4-16 |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | Carbon Steel |
| Tap Material Grade | Grade GCR15 |
| Tap Shank Dia. | 0.24", 0.28", 0.31", 0.35", 0.47", 0.55" |
| Tap Sizes Included | 1/4" to 3/4" |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Sizes Included | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16 |
| Thread Standard | UNC, UNF |
| Thread Type | UNC, UNF |
| Type | Fractional |
Shipping Info:
| Ship weight (kg) | 3.87 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 31.75 |
| HS code | 8207406000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Tap Chamfer | Number Of Pieces | Thread Sizes Included | Min. Tap Thread Size | Max. Tap Thread Size | Max. Die Thread Size | Thread Type | Die Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1PZ39 | Plug | 12 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 | 1/4"-20 | 1/2"-13 | 1/2"-13 | Coarse | Solid | €61.93 | |
 |
1PZ40 | Plug | 16 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 5/8"-11, 3/4"-10 | 1/4"-20 | 3/4"-10 | 3/4"-10 | Coarse | Adjustable | €118.77 | |
 |
1PZ41 | Plug | 21 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 9/16"-12, 5/8"-11, 3/4"-10 | 1/4"-20 | 3/4"-10 | 3/4"-10 | Coarse | Adjustable | €231.10 | |
 |
1PZ43 | Plug | 45 | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 7/8"-9, 7/8"-14, 1"-8, 1"-14 | 1/4"-20 | 1" | 1"-14 | UNC, UNF | Adjustable | €426.89 | |
 |
1PZ48 | Plug | 22 | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20 | 1/4"-20 | 1/2"-20 | 1/2"-20 | UNC, UNF | Solid | €143.11 | |
 |
1PZ49 | Plug, Taper | 39 | #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/8"-27, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20 | #4-40 | 1/2"-13 | 1/2"-13 | UNF, UNF NPT | Solid | €212.05 | |
 |
1PZ51 | Plug, Taper | 41 | 1/8"-27, 1/4"-18, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16 | 1/4"-20 | 3/4"-16 | 3/4"-16 | UNF, UNF NPT | Adjustable | €224.42 |
