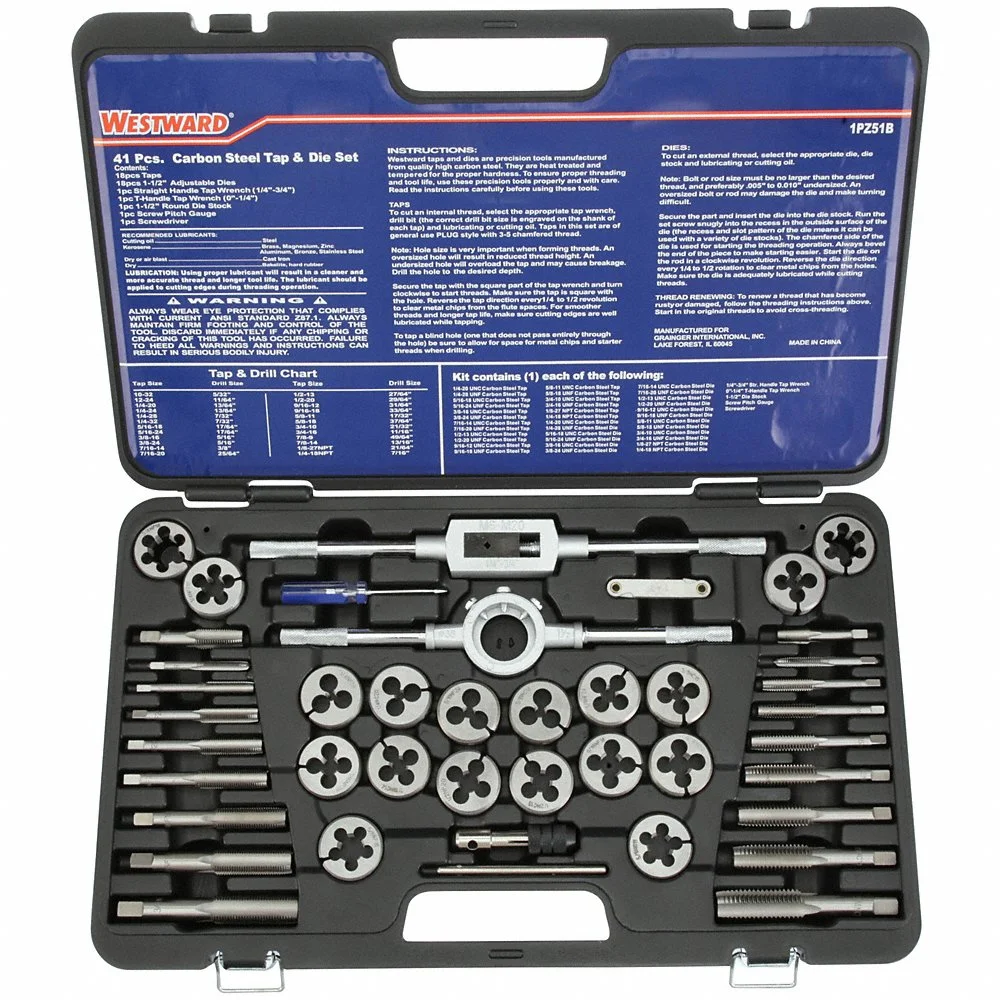

WESTWARD 1PZ51 Tap And Die Set, 1/4-20 Inch Min. Tap Thread Size, 3/4-16 Inch Max. Tap Thread Size
Get it by Friday, Aug 21
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€161.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tap and Die Set |
| Case Type | Plastic Case |
| Class Of Fit | Class 2A |
| Coolant Fed | Non Coolant Through |
| Cutting Size | 18 |
| Cutting Sizes | 18 |
| Die Finish | Bright (Uncoated) |
| Die Material | Carbon Steel |
| Die Shape | Round |
| Die Thread Size Included | 1/4"-18, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 1/8"-27 Npt |
| Die Type | 1-1/2" OD Adjustable (No. 1PZ51) 1-1/2" OD Solid (No. 1PZ50) |
| Die Type | Adjustable |
| Dimensions Standard | ANSI B1.1 |
| Drill Bit Type | NPT |
| Extended Neck | No |
| Extended Shank | No |
| Extension Tap | No |
| Included | Straight Handle Tap Wrench, Die Stock, T-Handle Tap Wrench, Thread Gauge, Screwdriver, Plastic Case |
| Material | Carbon Steel |
| Material-machining | Carbon Steel |
| Max. Die Thread Size | 3/4"-16 |
| Max. Tap Thread Size | 3/4"-16 |
| Min. Tap Thread Size | 1/4"-20 |
| No. Of Dies In Set | 18 |
| No. Of Flutes | 18 |
| No. Of Pieces | 41 |
| Primary Material Application | Ferrous Metal |
| Primary Material Application Iso Code | H |
| Sae Or Metric | SAE |
| Size/range | 1/4 to 1/2" |
| Sizes | 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-12, 9/16-18, 5/8-11, 5/8-18, 3/4-10, 3/4-16, 1/8-27 NPT, 1/4-18 NPT |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
| Tap Chamfer | Plug, Taper |
| Tap Finish | Bright |
| Tap Material | Carbon Steel |
| Tap Material Grade | Grade GCR15 |
| Tap Shank Dia. | 0.24", 0.28", 0.31", 0.35", 0.41", 0.43", 0.47", 0.55" |
| Tap Size Included | 1/4" to 3/4" |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Size Included | 1/8"-27, 1/4"-18, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16 |
| Thread Standard | UNF, UNF NPT |
| Thread Type | UNF, UNF NPT |
| Type | Fractional |
Shipping Info:
| Ship weight (kg) | 7.43 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 50.29 |
| Ship width (cm) | 31.75 |
| HS code | 8207406000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Max. Die Thread Size | Min. Tap Thread Size | Max. Tap Thread Size | Thread Size Included | Tap Size Included | Thread Standard | Cutting Size | Tap Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1PZ39 | 1/2"-13 | 1/4"-20 | 1/2"-13 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 | 1/4" to 1/2" | UNC | 5 | 0.24", 0.28", 0.31", 0.35" | €52.88 | |
 |
1PZ40 | 3/4"-10 | 1/4"-20 | 3/4"-10 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 5/8"-11, 3/4"-10 | 1/4" to 3/4" | UNC | 7 | 0.24", 0.28", 0.31", 0.35", 0.47", 0.55" | €99.98 | |
 |
1PZ41 | 3/4"-10 | 1/4"-20 | 3/4"-10 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 9/16"-12, 5/8"-11, 3/4"-10 | 1/4" to 3/4" | UNC | 8 | 0.24", 0.28", 0.31", 0.35", 0.41", 0.47", 0.55" | €165.15 | |
 |
1PZ42 | 3/4"-16 | 1/4"-20 | 3/4"-16 | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16 | 1/4" to 3/4" | UNC, UNF | 14 | 0.24", 0.28", 0.31", 0.35", 0.47", 0.55" | €210.55 | |
 |
1PZ43 | 1"-14 | 1/4"-20 | 1" | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 7/8"-9, 7/8"-14, 1"-8, 1"-14 | 1/4" to 1" | UNC, UNF | 20 | 0.24", 0.28", 0.31", 0.35", 0.41", 0.47", 0.55", 0.67", 0.79" | €437.94 | |
 |
1PZ48 | 1/2"-20 | 1/4"-20 | 1/2"-20 | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20 | 1/4" to 1/2" | UNC, UNF | 10 | 0.24", 0.28", 0.31", 0.35" | €102.28 | |
 |
1PZ49 | 1/2"-13 | #4-40 | 1/2"-13 | #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/8"-27, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20 | #4" to 1/2" | UNF, UNF NPT | 17 | 0.14", 0.18", 0.2", 0.22", 0.24", 0.28", 0.31", 0.35" | €196.76 |
