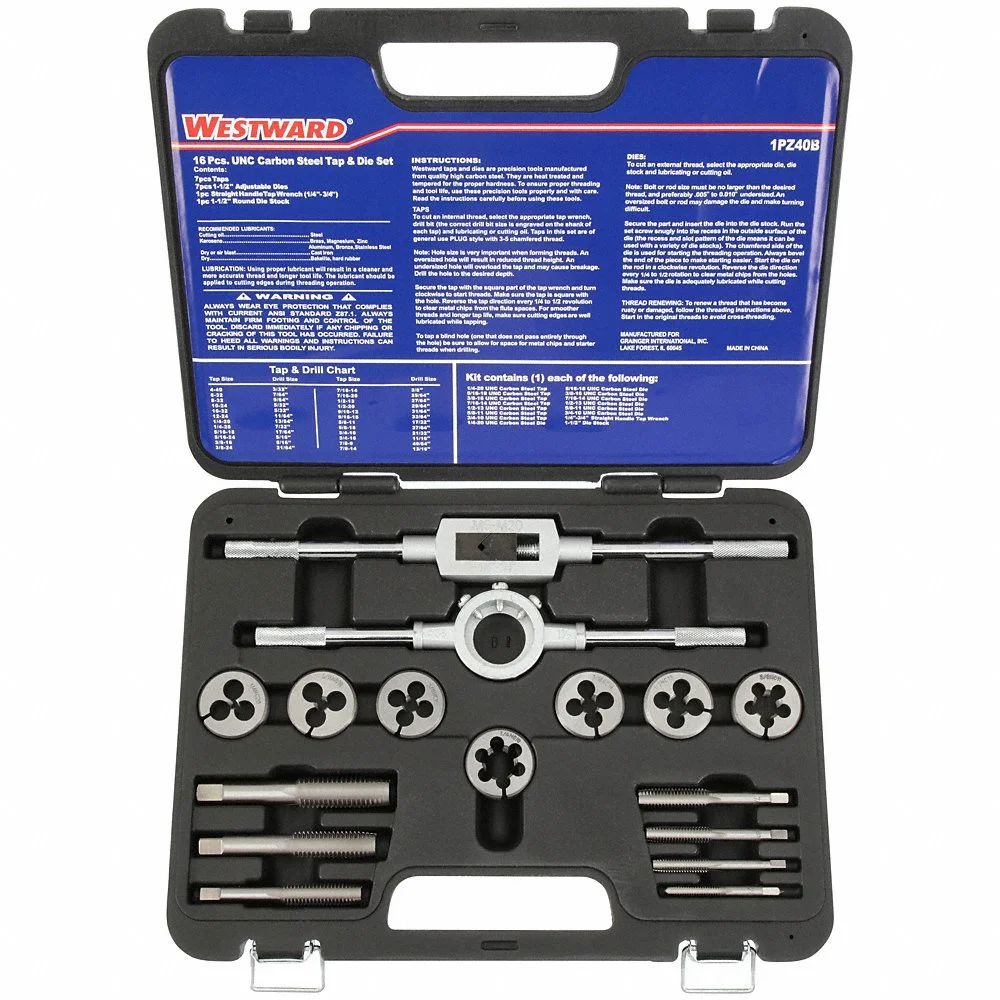

WESTWARD 1PZ40 Tap And Die Set, 1/4-20 Inch Min. Tap Thread Size, 3/4-10 Inch Max. Tap Thread Size, 2A
Item: AB2ZMLModel: 1PZ40
7 In Stock
Ships within 2 days via
13.00% off
€86.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap and Die Set |
| Case Type | Plastic Case |
| Class Of Fit | Class 2A |
| Coolant Fed | Non Coolant Through |
| Cutting Size | 7 |
| Cutting Sizes | 7 |
| Die Finish | Bright (Uncoated) |
| Die Material | Carbon Steel |
| Die Shape | Round |
| Die Thread Size Included | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 5/8"-11, 3/4"-10 |
| Die Type | 1-1/2" OD Adjustable (No. 1PZ40) 1-1/2" OD Solid (No. 1PZ34) |
| Die Type | Adjustable |
| Dimensions Standard | ANSI B1.1 |
| Extended Neck | No |
| Extended Shank | No |
| Extension Tap | No |
| Included | Straight Handle Tap Wrench, Die Stock, Plastic Case |
| Material | Carbon Steel |
| Material-machining | Carbon Steel |
| Max. Die Thread Size | 3/4"-10 |
| Max. Tap Thread Size | 3/4"-10 |
| Min. Tap Thread Size | 1/4"-20 |
| No. Of Dies In Set | 7 |
| No. Of Flutes | 7 |
| No. Of Pieces | 16 |
| Primary Material Application | Ferrous Metal |
| Primary Material Application Iso Code | H |
| Sae Or Metric | SAE |
| Size/range | 1/4 to 3/4" |
| Sizes | 1/4-20, 5/16-18, 3/8-16, 7/16-14, 1/2-13, 5/8-11, 3/4-10 |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | Carbon Steel |
| Tap Material Grade | Grade GCR15 |
| Tap Shank Dia. | 0.24", 0.28", 0.31", 0.35", 0.47", 0.55" |
| Tap Size Included | 1/4" to 3/4" |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Size Included | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 5/8"-11, 3/4"-10 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Type | Fractional |
Shipping Info:
| Ship weight (kg) | 2.41 |
| Ship height (cm) | 32 |
| Ship length (cm) | 33.78 |
| Ship width (cm) | 4.83 |
| HS code | 8207406000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Max. Die Thread Size | Min. Tap Thread Size | Max. Tap Thread Size | Thread Size Included | Tap Size Included | Thread Standard | Cutting Size | Tap Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1PZ39 | 1/2"-13 | 1/4"-20 | 1/2"-13 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 | 1/4" to 1/2" | UNC | 5 | 0.24", 0.28", 0.31", 0.35" | €52.88 | |
 |
1PZ41 | 3/4"-10 | 1/4"-20 | 3/4"-10 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 9/16"-12, 5/8"-11, 3/4"-10 | 1/4" to 3/4" | UNC | 8 | 0.24", 0.28", 0.31", 0.35", 0.41", 0.47", 0.55" | €165.15 | |
 |
1PZ42 | 3/4"-16 | 1/4"-20 | 3/4"-16 | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16 | 1/4" to 3/4" | UNC, UNF | 14 | 0.24", 0.28", 0.31", 0.35", 0.47", 0.55" | €210.55 | |
 |
1PZ43 | 1"-14 | 1/4"-20 | 1" | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 7/8"-9, 7/8"-14, 1"-8, 1"-14 | 1/4" to 1" | UNC, UNF | 20 | 0.24", 0.28", 0.31", 0.35", 0.41", 0.47", 0.55", 0.67", 0.79" | €437.94 | |
 |
1PZ48 | 1/2"-20 | 1/4"-20 | 1/2"-20 | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20 | 1/4" to 1/2" | UNC, UNF | 10 | 0.24", 0.28", 0.31", 0.35" | €102.28 | |
 |
1PZ49 | 1/2"-13 | #4-40 | 1/2"-13 | #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/8"-27, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20 | #4" to 1/2" | UNF, UNF NPT | 17 | 0.14", 0.18", 0.2", 0.22", 0.24", 0.28", 0.31", 0.35" | €196.76 | |
 |
1PZ51 | 3/4"-16 | 1/4"-20 | 3/4"-16 | 1/8"-27, 1/4"-18, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16 | 1/4" to 3/4" | UNF, UNF NPT | 18 | 0.24", 0.28", 0.31", 0.35", 0.41", 0.43", 0.47", 0.55" | €186.19 |
