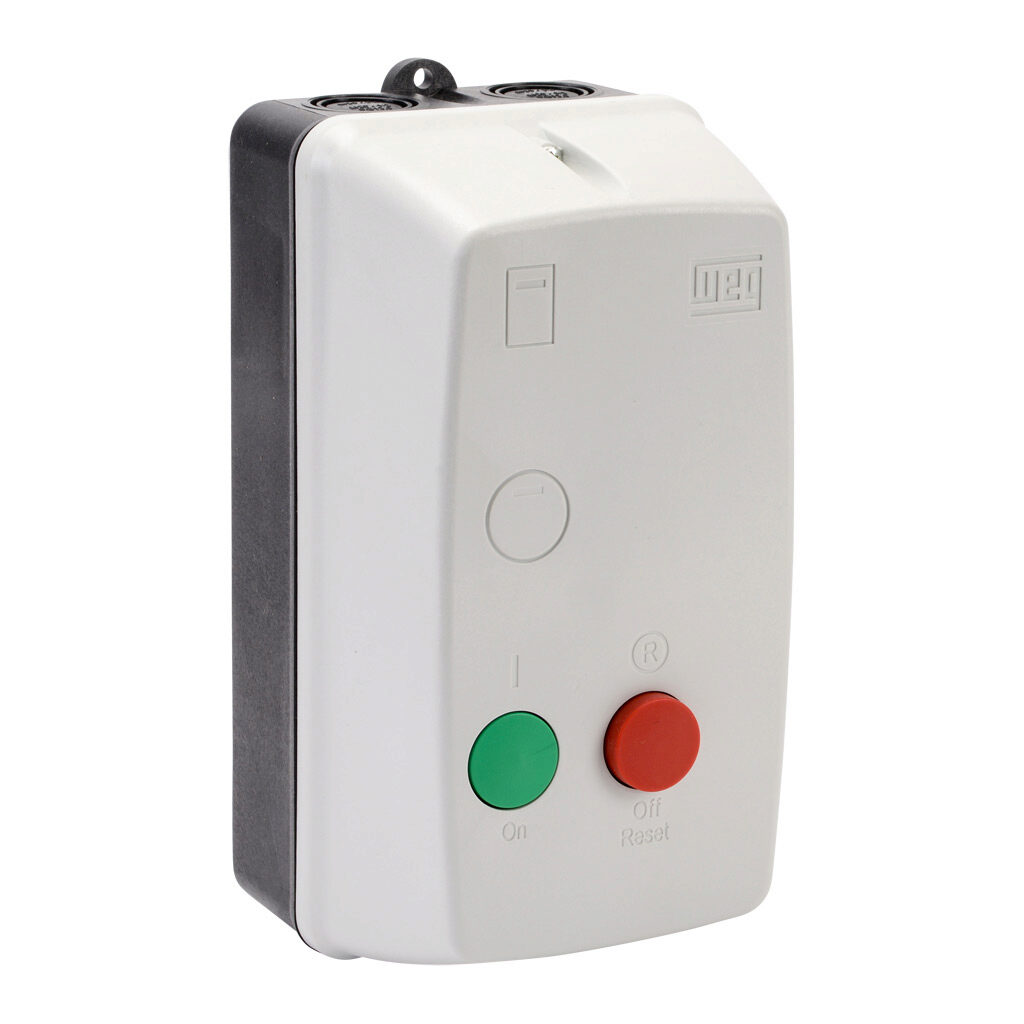

WEG PESW-B9D39AX-R59 13455444 Enclosed Starter, 3 Phase, 9A Rated, 1.8-2.8 A Range, On/Off Control, Plastic Crate, 480V50/60HZ
0.5/0.5/1/2 hp
Get it by Friday, Aug 28
€221.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Motor Starter |
| Assembly Method | Plastic Crate |
| Assembly Method (start Key) | Plastic Crate |
| Auxiliary Contacts | NO/NC |
| Button Color | Not Specified |
| Button Type | Unspecified |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 480V AC |
| Connection Type | Screw Terminal |
| Control Devices | A On Off Button |
| Control Voltage | 480V |
| Degree Of Protection | NEMA 4X |
| Enclosure Type | NEMA 4/4X , NEMA 4X |
| Frequency | 60/50 Hz |
| Full Load Amps | 1.8-2.8A |
| Hp | 1 hp , 1/2 hp, 1 hp, 2 hp |
| Included | Start, Stop and Reset Pushbuttons |
| Maximum Power Rating | Not Applicable |
| Measuring Tool And Accessories | Not Applicable |
| Mounting | Wall |
| No. Of Phase | 3 |
| No. Of Poles | 3 |
| Over Load | 1.8-2.8A |
| Overload Relay | 1.8-2.8A |
| Overload Type | Bi-Metallic |
| Phase | 3 |
| Phase Loss Sensitive | Yes |
| Power Poles | NO |
| Rated Amps (ac-3) | 9A (CWB9) |
| Rated Operational Voltage | 600V |
| Reference | PESW |
| Sccr Rating | 5 kA |
| Series | PESW Series |
| Start Type | Direct Three Phase |
| Starter Type | Non Combination |
| Starters Complements | Does Not Contain |
| Trip Class | Class 10 |
| Voltage | 200/230/460/575V AC , 600V AC |
Shipping Info:
| Ship weight (kg) | 1.02 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 29.46 |
| Ship width (cm) | 16.51 |
| Country of Origin | BR |
Product Variants
| Product | Model | Amps | Coil Voltage | Type | Start Type | Control Voltage | Hp | No. Of Phase | Rated Amps (ac-3) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PESW-9V47AX-R23 | 9A | 480V | Start/Stop And Reset | Direct Three Phase | 400-415/480V | 1/2 hp | - | - | €155.94 | |
|
PESW-9V47EX-R25 | - | 480V | Reset Only | Direct Three Phase | 400-415/480V | 1 1/2 hp | - | - | €132.76 | |
 |
PESW-9V18AX-R26 | - | 120V | Start/Stop And Reset | Direct Three Phase | 110/120V | 1 1/2 hp | - | - | €146.22 | |
|
PESW-65V18EX-R39 | 65A | 120V | Reset Only | Direct Three Phase | 110/120V | 30 hp | - | - | €563.49 | |
|
PESW-9V24AX-R26 | 9A | 208-240V | Start/Stop And Reset | Direct Three Phase | 180-208/208-240V | - | - | - | €146.22 | |
|
PESW-9V47EX-R28 | - | 480V | Reset Only | Direct Three Phase | 400-415/480V | 5 hp | - | - | €132.76 | |
 |
PESW-9V18AX-R29 | 9A | 120V | Start/Stop And Reset | Direct Three Phase | 110/120V | - | - | - | €146.22 |
