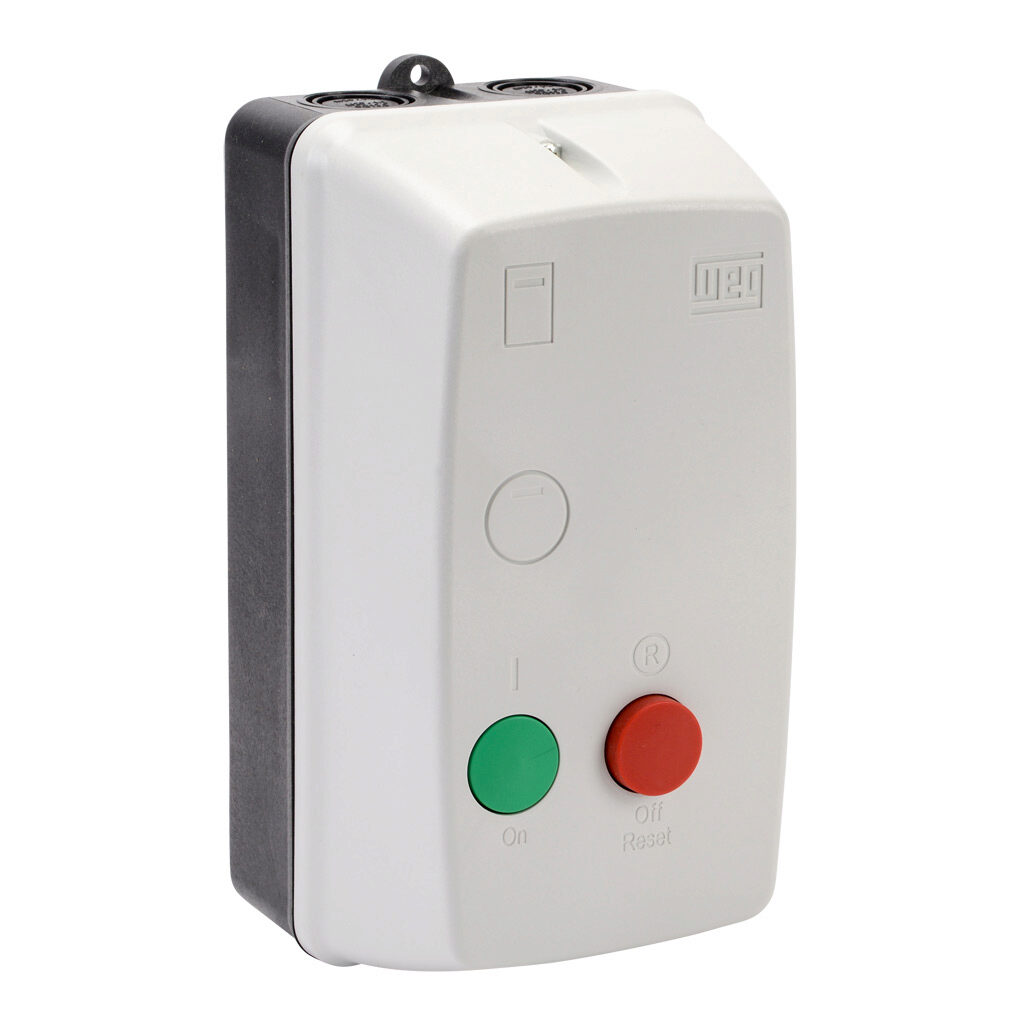

WEG PESW-B38D39AX-R69 Manual Motor Starter, Pushbutton, 38A, 3-Pole, 480 VAC Coil Voltage, Thermal Overload | CV6UCJ

WEG PESW-B38D39AX-R69 14146615 Enclosed Starter, 3 Phase, 38A Rated, 32-40 A Range, On/Off Control, Plastic Crate, 480V50/60HZ

Item: CV6UCJModel: PESW-B38D39AX-R69Cross Ref: 14146615
Check Availability
In Stock

Get it by Thursday, Aug 27

Request a Quote

Payment

Delivery

Product Specifications:

Item Motor Starter
Assembly Method Plastic Crate
Assembly Method (start Key) Plastic Crate
Auxiliary Contacts NO/NC
Button Color Not Specified
Button Type Unspecified
Coil Frequency 50/60 Hz
Coil Voltage 480V AC
Connection Type Screw Terminal
Control Devices A On Off Button
Control Voltage 480V
Degree Of Protection NEMA 4X
Enclosure Type NEMA 4/4X , NEMA 4X
Frequency 60/50 Hz
Full Load Amps 25-40A
Hp 10 hp, 25 hp , 25 hp
Included Start, Stop and Reset Pushbuttons
Maximum Power Rating Not Applicable
Measuring Tool And Accessories Not Applicable
Mounting Wall
No. Of Phase 3
No. Of Poles 3
Over Load 32-40A
Overload Relay 32-40A
Overload Type Bi-Metallic
Phase 3
Phase Loss Sensitive Yes
Power Poles NO
Product Datasheet weg-esw-b12d15a-r30.pdf
Rated Amps (ac-3) 38A (CWB38)
Rated Operational Voltage 600V
Reference PESW
Sccr Rating 5 kA
Series PESW Series
Start Type Direct Three Phase
Starter Type Non Combination
Starters Complements Does Not Contain
Trip Class Class 10
Voltage 200/230/460/575V AC , 600V AC

Shipping Info:

Ship weight (kg) 1.07
Ship height (cm)21.08
Ship length (cm)12.7
Ship width (cm)11.94
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelAmpsCoil VoltageTypeStart TypeControl VoltageHpNo. Of PhaseRated Amps (ac-3)Price
WEG PESW-9V47AX-R23 Magnetic Motor Starter, 400-415V at 50HZ/480V at 60HZ | BC7RBL PESW-9V47AX-R239A480VStart/Stop And ResetDirect Three Phase400-415/480V1/2 hp--€155.94
WEG PESW-9V47EX-R25 Magnetic Motor Starter, 400-415V at 50HZ/480V at 60HZ | BC7UCK PESW-9V47EX-R25-480VReset OnlyDirect Three Phase400-415/480V1 1/2 hp--€132.76
WEG PESW-9V18AX-R26 Magnetic Motor Starter, 110V at 50HZ/120V at 60HZ | BC7VQR PESW-9V18AX-R26-120VStart/Stop And ResetDirect Three Phase110/120V1 1/2 hp--€146.22
WEG PESW-65V18EX-R39 Magnetic Motor Starter, 110V at 50HZ/120V at 60HZ | BC8CBP PESW-65V18EX-R3965A120VReset OnlyDirect Three Phase110/120V30 hp--€563.49
WEG PESW-9V24AX-R26 Magnetic Motor Starter, 180-208V at 50HZ/208-240V at 60HZ | BC8CJU PESW-9V24AX-R269A208-240VStart/Stop And ResetDirect Three Phase180-208/208-240V---€146.22
WEG PESW-9V47EX-R28 Magnetic Motor Starter, 400-415V at 50HZ/480V at 60HZ | BC8MNJ PESW-9V47EX-R28-480VReset OnlyDirect Three Phase400-415/480V5 hp--€132.76
WEG PESW-9V18AX-R29 Magnetic Motor Starter, 110V at 50HZ/120V at 60HZ | BC8NEL PESW-9V18AX-R299A120VStart/Stop And ResetDirect Three Phase110/120V---€146.22
