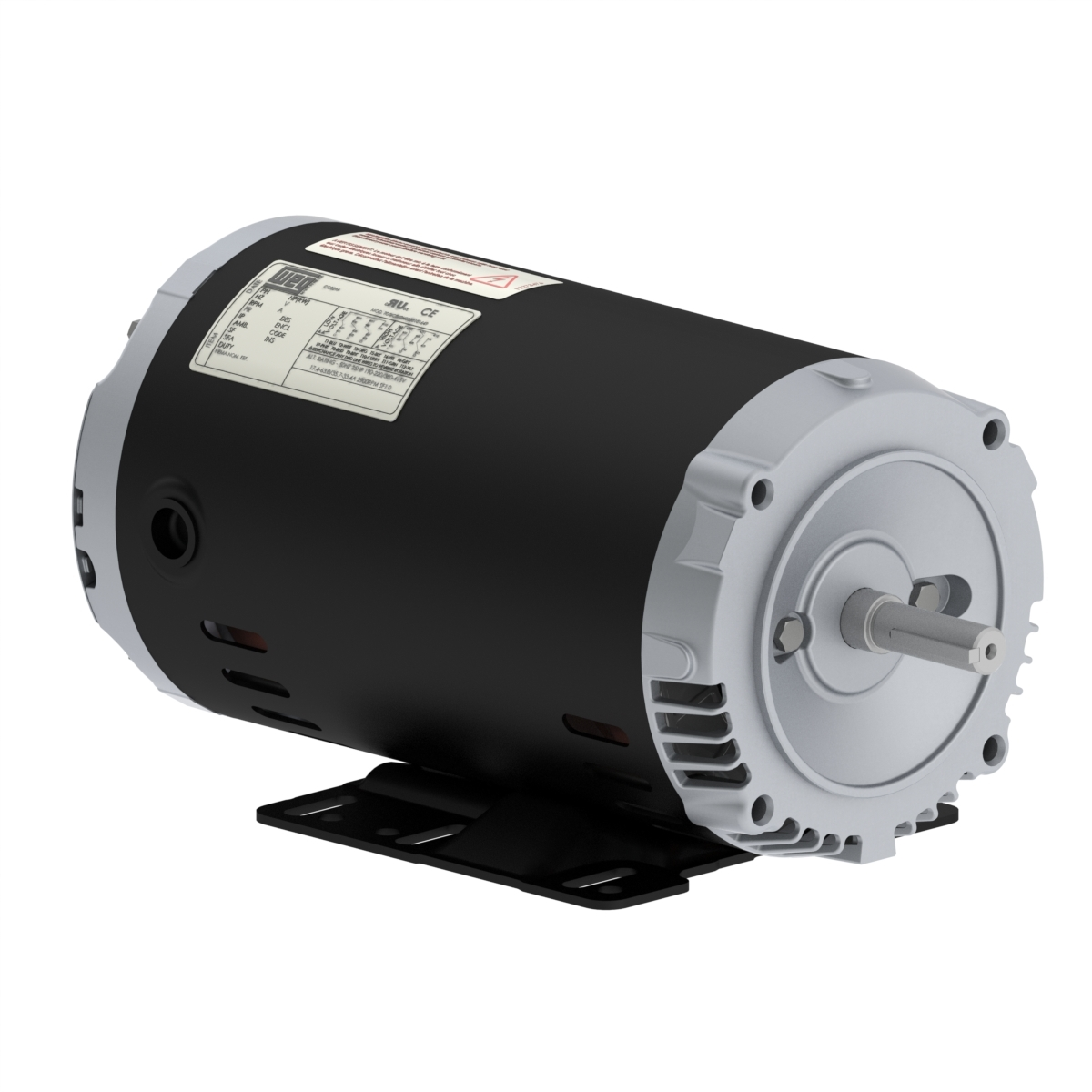

WEG .7512OT3E56C-S 12809251 General Purpose Motor, ODP RolLED Steel 56HC Frame, 0.75 HP, 955 RPM, 415 V
1200 rpm
0.75 hp
56C
Get it by Tuesday, Sep 1
€491.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 1.26/2.52-2.78A , 2.78-2.52/1.26A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 54 sec. , 59 sec. |
| Connection Cables Quantity | 9 |
| De Bearing Seal | No |
| Design | A |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 45% , 75.5% |
| Efficiency 75% | 80% |
| Efficiency @ 1 % | 67% |
| Efficiency @ 100% | 81.7% |
| Efficiency @ 75 % | 58% |
| Enclosure | IC01 |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame | 56HC |
| Frame Material | Rolled Steel |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 33 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 16.4-14.9/7.43A , 7.37A , 7.43/14.9-16.4A |
| Locked Rotor Time (cold) | 59 sec. |
| Locked Rotor Time(hot) | 30 sec. , 33 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 5.3x(Code H) , 5.9X(Code J) |
| Moment Of Inertia | 0.1685 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1685 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1160 RPM |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | No |
| No Load Amps | 0.896/1.55-1.79A , 1.55-1.79/0.896A |
| No. Of Poles | 6 |
| Noise Level | 50 dBA |
| Output | 3/4 hp |
| Output Rating | 3/4 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.67 |
| Power Factor 50% | 0.45 |
| Power Factor 75% | 0.58 |
| Power Factor @ 1 % | 81.7 |
| Power Factor @ 50 % | 75.5 |
| Power Factor @ 75 % | 80 |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.33% |
| Speed | 1100-1200 RPM , 1160 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Torque | 3.4 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 190-220/208-230/380-415/460V , 208-230/460/190-220/380-415V AC , 208-230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Product Variants
| Model | Phase | Frequency | Service Factor | Hp | Full Load Amps | Frame | Frame Material | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3H254TC | 3 | 60 Hz | 1.15 | 15 hp | 14.9A | 254TC | Cast Iron | - | €1,909.02 | |
| 02018OT3H256TC | 3 | 60 Hz | 1.15 | 20 hp | 19.8A | 256TC | Cast Iron | - | €2,237.16 | |
| 02518OT3H284TC | 3 | 60 Hz | 1.15 | 25 hp | 23.9A | 284TC | Cast Iron | - | €3,659.77 | |
| 03018OT3H286TC | 3 | 60 Hz | 1.15 | 30 hp | 28.3A | 286TC | Cast Iron | - | €3,744.49 | |
| 20018OT3G445T | 3 | 60 Hz | 1.15 | 200 hp | 229A | 445T | Cast Iron | - | €17,928.59 | |
| 15036OT3G405TS | 3 | 60 Hz | 1.15 | 150 hp | 162A | 405TS | Cast Iron | - | €15,787.11 | |
| 20036OT3G444TS | 3 | 60 Hz | 1.15 | 200 hp | 228A | 444TS | Cast Iron | - | €20,850.80 |
