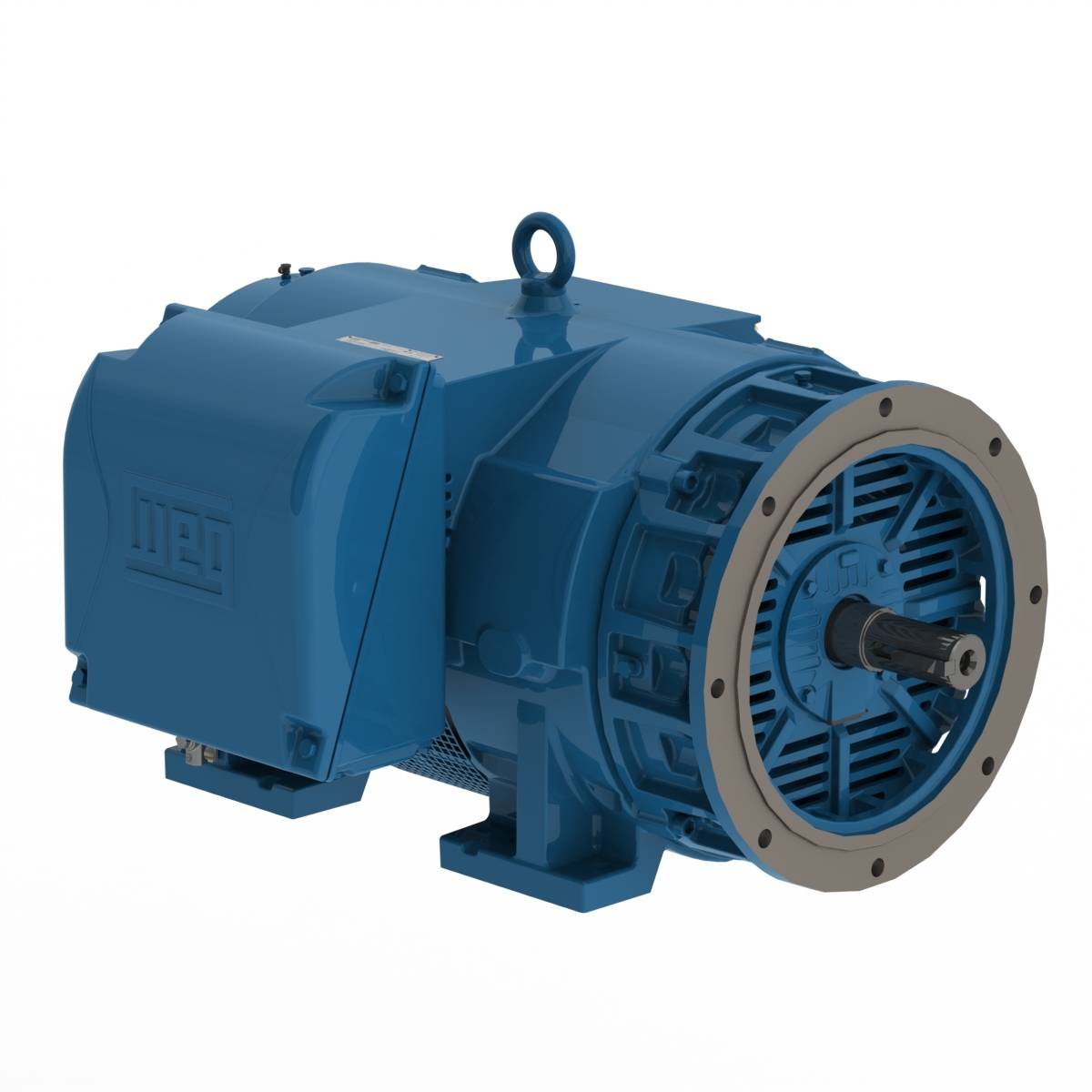

WEG 30018OT3H447/9TSD-W4 13570826 General Purpose Motor, ODP Cast Iron 447/9TSD Frame, 300 HP, 1780 RPM, 575 V
1800 rpm
300 hp
449TSD
Get it by Wednesday, Aug 26
€29,478.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 271A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 229% |
| Cold Locked Rotor Time | 28 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 76% , 95.8% |
| Efficiency 75% | 95.8% |
| Efficiency @ 1 % | 85% |
| Efficiency @ 100% | 95.8% |
| Efficiency @ 75 % | 83% |
| Enclosure | IC01 |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | D |
| Flange Type | D |
| Frame | 447/9TSD |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 16 sec. |
| Hp | 300 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 1926A |
| Locked Rotor Time (cold) | 28 sec. |
| Locked Rotor Time(hot) | 16 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 7.1X(Code H) |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 56.1 lbs.-sq. ft. |
| Moment Of Inertia (j) | 56.1 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1780 RPM |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | No |
| No Load Amps | 84A |
| No. Of Holes | 2 |
| No. Of Poles | 4 |
| Noise Level | 77 dBA |
| Output | 300 hp |
| Output Rating | 300 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.85 |
| Power Factor 50% | 0.76 |
| Power Factor 75% | 0.83 |
| Power Factor @ 1 % | 95.8 |
| Power Factor @ 50 % | 95.8 |
| Power Factor @ 75 % | 95.8 |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 1.11% |
| Speed | 1700-1800 RPM , 1780 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 885 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 575V , 575V AC |
| Winding Thermal Protection | Thermistor 2 Wires 1 Per Phase 155°C , Thermistor-2 Wires 1 Per Phase 155°C |
Shipping Info:
| Ship weight (kg) | 960.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Phase | Frequency | Service Factor | Hp | Full Load Amps | Frame | Frame Material | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3H254TC | 3 | 60 Hz | 1.15 | 15 hp | 14.9A | 254TC | Cast Iron | - | €1,909.02 | |
| 02018OT3H256TC | 3 | 60 Hz | 1.15 | 20 hp | 19.8A | 256TC | Cast Iron | - | €2,237.16 | |
| 02518OT3H284TC | 3 | 60 Hz | 1.15 | 25 hp | 23.9A | 284TC | Cast Iron | - | €3,659.77 | |
| 03018OT3H286TC | 3 | 60 Hz | 1.15 | 30 hp | 28.3A | 286TC | Cast Iron | - | €3,744.49 | |
| 20018OT3G445T | 3 | 60 Hz | 1.15 | 200 hp | 229A | 445T | Cast Iron | - | €17,928.59 | |
| 15036OT3G405TS | 3 | 60 Hz | 1.15 | 150 hp | 162A | 405TS | Cast Iron | - | €15,787.11 | |
| 20036OT3G444TS | 3 | 60 Hz | 1.15 | 200 hp | 228A | 444TS | Cast Iron | - | €20,850.80 |
