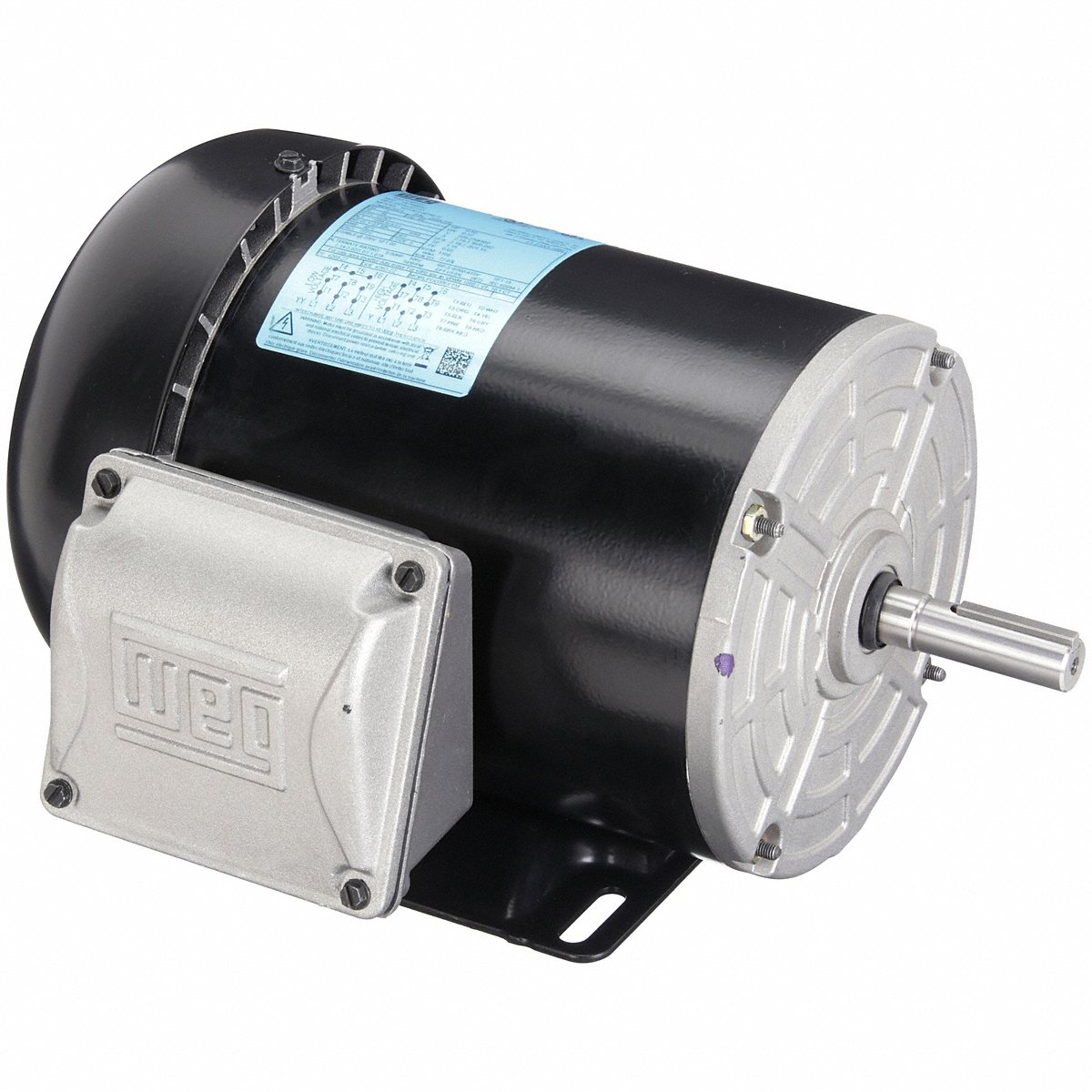

WEG .5012ES3E56-S 14796992 General Purpose Motor, 0.5 HP, 6 Poles, 56 Frame, 3 Phase, 208-230/460//190-220/380-415 V, 60 Hz, IC411-TEFC, Foot Mounted
Get it by Monday, Feb 16
10.00% off
€406.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bolt Material | Carbon Steel |
| Capacitor Required | No |
| Duty Cycle | S1 |
| Efficiency | 72% |
| Efficiency Group | Standard |
| Enclosure Type | Tefc |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.2-2/0.99A |
| Full Load Amps @ 50hz | 2.02/1.07/2.14/1.07A |
| Green Certification Or Other Recognition | rohs.png |
| Hp | 1/2 hp |
| Hp @ 50hz | 1/2 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 10 7/16" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1160 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 72% |
| Number Of Poles | 6 |
| Overall Length | 12 5/16" |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm | 1100-1200 RPM |
| Rpm Range | 1101-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Carbon Steel |
| Standards | Csa, Ul |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 12.77 |
| Ship height (cm) | 23.88 |
| Ship length (cm) | 31.27 |
| Ship width (cm) | 31.5 |
| HS code | 8501514040 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Service Factor | Frequency | Motor Enclosure Design | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00112ET3E145T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 1" | 3.5/1.7A | 1160 RPM | Three Phase | €758.54 | |
| 00152ET3E182T-W22 | 230/460/380V | 1.25 | 60 Hz | - | 1 1/2 hp | 5.08/2.54A | 1170 RPM | Three Phase | €914.23 | |
| 00212ET3E184T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 2 hp | 6.44/3.22A | 1170 RPM | Three Phase | €988.08 | |
| 00312ET3E213T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 3 hp | 8.8/4.4A | 1175 RPM | Three Phase | €1,525.74 | |
| 00512ET3E215T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 5 hp | 13.7/6.83A | 1170 RPM | Three Phase | €1,801.89 | |
| 00712ET3E254T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 7 1/2 hp | 19/9.48A | 1175 RPM | Three Phase | €2,634.64 | |
| 01012ET3E256T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 10 hp | 26.6/13.3A | 1175 RPM | Three Phase | €3,044.25 |
