WEG 35018OP3HFP447/9TSW4 Electric Motor, 350Hp, 60Hz, 1800 Rpm | BC3JJF

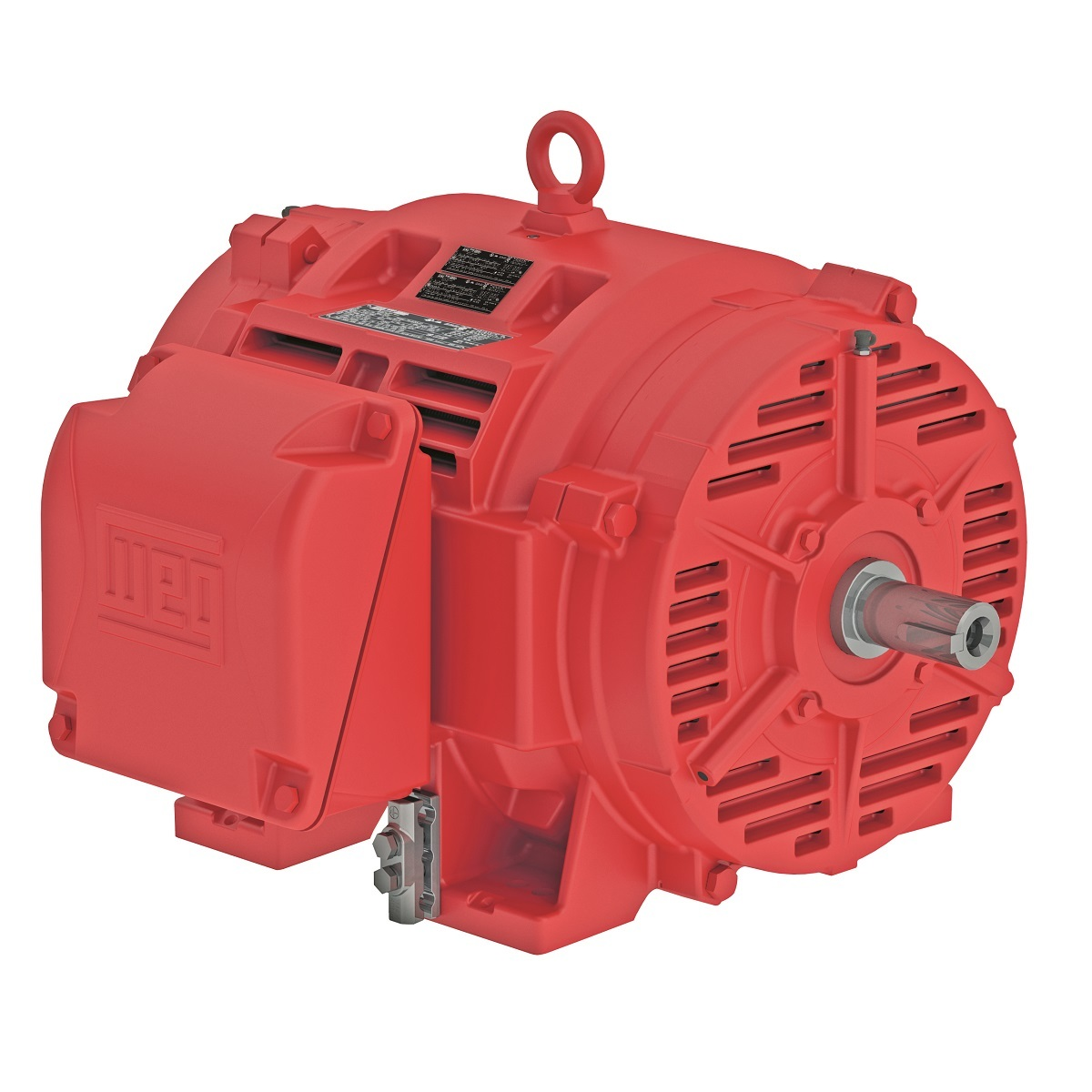

WEG 35018OP3HFP447/9TSW4 14428273 Fire Pump Motor, 350 HP, 1800 RPM, 575 V, 3 Phase, ODP, 447/9TS Frame

Item: BC3JJFModel: 35018OP3HFP447/9TSW4Cross Ref: 14428273
Check Availability
In Stock

Get it by Friday, Jul 10

€26,127.05 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 314A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 260%
Cable Press Material Sem
Cold Locked Rotor Time 18 sec.
Composition Cast Iron
Connection Cables Quantity 6
Design B
Drip Cover Without
Duty Cycle S1
Efficiency 50% 79% , 95.4%
Efficiency 75% 95.8%
Efficiency @ 1 % 87%
Efficiency @ 100% 95.5%
Efficiency @ 75 % 85%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange Without
Flange Type Without
Frame 447/9TS
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Double
Hot Locked Rotor Time 10 sec.
Hp 350 hp
Impregnation Method Constant Resin Flow
Insulation Class Class F
L. R. Amps 1886A
Locked Rotor Time (cold) 18 sec.
Locked Rotor Time(hot) 10 sec.
Locked Rotor Torque 240%
Lrc 6.0X(Code F)
Main Terminal Box Hole 2"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Moment Of Inertia 66.1 lbs.-sq. ft.
Moment Of Inertia (j) 66.1 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 1780 RPM
Mounting F-1 , Foot Mounted
No Load Amps 81.6A
No. Of Holes 2
No. Of Poles 4
Noise Level 77 dBA
Output 350 hp
Output Rating 350 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL3002 203A (ISO 12944-C2)
Phase 3
Power Factor 100% 0.87
Power Factor 50% 0.79
Power Factor 75% 0.85
Power Factor @ 1 % 95.5
Power Factor @ 50 % 95.4
Power Factor @ 75 % 95.8
Regreasing System At Drive End And Non Drive End , At Drive End And Non-Drive End
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 4140
Slip 1.11%
Speed 1700-1800 RPM , 1780 RPM
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 1030 lbs.-ft.
Tropicalized Painting Without
Voltage 575V , 575V AC
Winding Thermal Protection Thermistor-2 Wires 1 Per Phase 155°C

Shipping Info:

Ship weight (kg) 999
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
