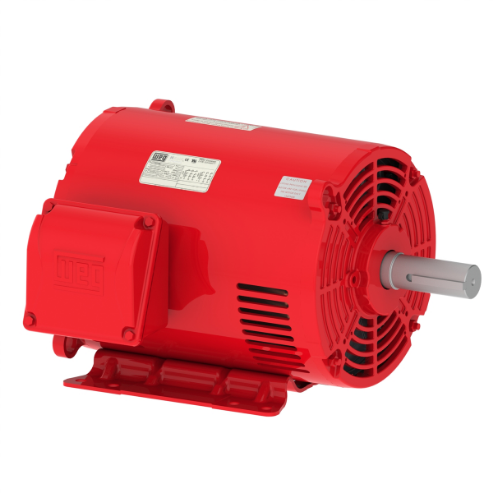

WEG 02036OP3EFP254T-S 12686501 Electric Motor, 20Hp, 60Hz, 3600 Rpm
Get it by Friday, Dec 19
€1,708.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break-down Torque | 240% |
| Cold Locked Rotor Time | 16 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 12 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 88% |
| Efficiency At 50 % | 75% |
| Efficiency At 75 % | 84% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 254/6T |
| Frame Material | Rolled Steel |
| Frame Size | 254T |
| Frequency | 50/60 Hz |
| Grounding Lugs | Superior |
| Hot Locked Rotor Time | 9 sec. |
| Hp | 20 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 284/142A |
| Locked Rotor Torque | 180% |
| Lrc | 6.0X(Code G) |
| Main Terminal Box Hole Size | 1.732" |
| Moment Of Inertia | 0.6974 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3520 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 18.2/9.12A |
| No. Of Poles | 2 |
| Noise Level | 70 dBA |
| Output | 20 hp |
| Output Rating | 20 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL3002 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 90.2 |
| Power Factor At 50 % | 88.5 |
| Power Factor At 75 % | 89.5 |
| Rated Current | 47.4/23.7A |
| Rated Torque | 29.8 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Regreasing System | At Drive End And Non Drive End |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 84.6 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Phase | Frequency | Service Factor | Hp | Frame | Ambient Temp. | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
01536OP3HFP215T-S | 575V AC | 3 | 60 Hz | 1.15 | 15 hp | 213/5T | -20°C to +40°C | S1 | €1,469.88 | |
 |
02036OT3ECD254TF2 | 230/460V AC | 3 | 60 Hz | 1.15 | - | 254T | -20°C to +40°C | S1 | €1,942.62 | |
 |
00118OT3E143T-SG | 230/460/190-220/380-415V AC | 3 | 50/60 Hz | 1.15 | - | 143/5T | -20°C to +40°C | S1 | €632.32 | |
 |
.5018OS1PRBOW56-S | 277V AC | 1 | 60 Hz | 1.25 | 1/2 hp | W56 | -20°C to +40°C | S1 | €377.02 | |
 |
02018OP3EFP256T-S | 230/460/190-220/380-415V AC | 3 | 60 Hz | - | 20 hp | 254/6T | -20°C to +40°C | S1 | €1,775.13 | |
 |
.7518OS1PRBO56-S | 200V | 1 | 60 Hz | 1.25 | 3/4 hp | 56 | -20°C to +40°C | Continuous | €452.17 | |
 |
00536OS1CCD182/4Y | 208-230V AC | 1 | 60 Hz | 1.15 | - | 182/4Y | -20°C to +40°C | Compressor Duty | €627.56 |
