WEG 02536OP3EFP256T-S Electric Motor, 25Hp, 60Hz, 3600 Rpm | BB9LCZ

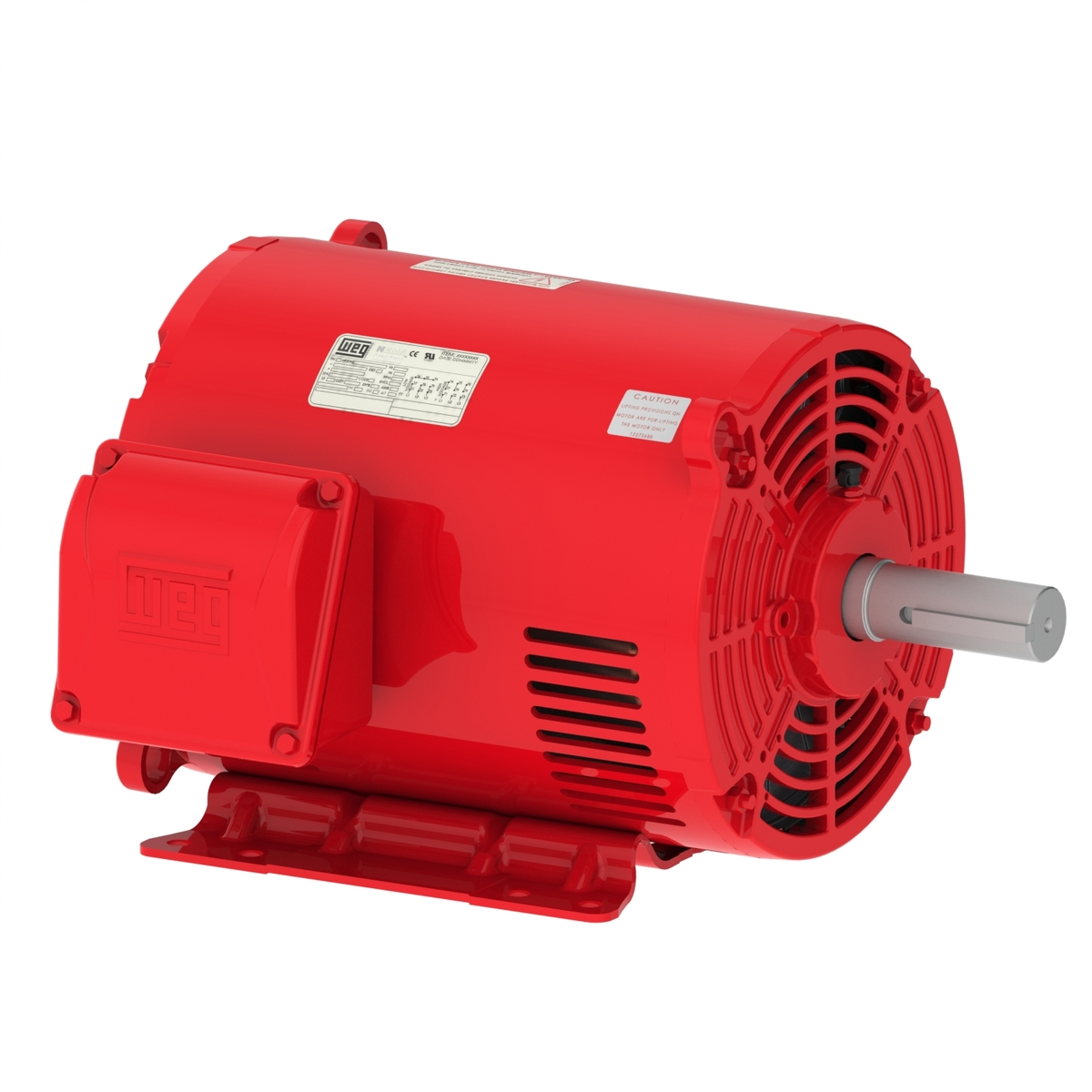

WEG 02536OP3EFP256T-S 12682877 Fire Pump Motor, 25 HP, 3600 RPM, 208/230/460 V, 3 Phase, ODP, 254/6T Frame, Footed, High Efficiency

Item: BB9LCZModel: 02536OP3EFP256T-SCross Ref: 12682877
Check Availability
In Stock

Get it by Tuesday, Jul 7

€2,061.18 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 29/58A , 58/29A
Balancing Method 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break Down Torque 280%
Cold Locked Rotor Time 16 sec.
Composition Cast Iron
Connection Cables Quantity 12
Design B
Drip Cover Without
Duty Cycle S1
Efficiency 50% 75% , 90.2%
Efficiency 75% 91%
Efficiency @ 1 % 88%
Efficiency @ 100% 91%
Efficiency @ 75 % 84%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange Without
Flange Type Without
Frame 254/6T
Frame Material Rolled Steel
Frequency 50/60 Hz , 60 Hz
Grounding Lugs Superior
Hot Locked Rotor Time 9 sec.
Hp 25 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 180/360A , 360/180A
Locked Rotor Time 9 sec.
Locked Rotor Time (cold) 16 sec.
Locked Rotor Torque 180%
Lrc 6.2X(Code G)
Main Terminal Box Hole 1.732"
Main Terminal Box Hole Size 1.732"
Moment Of Inertia 0.8718 lbs.-sq. ft.
Moment Of Inertia (j) 0.8718 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3530 RPM
Mounting F-1 , Foot Mounted
No Load Amps 11.2/22.4A , 22.4/11.2A
No. Of Poles 2
Noise Level 70 dBA
Output 25 hp
Output Rating 25 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL3002 207N (ISO 12944-C2)
Phase 3
Power Factor 100% 0.88
Power Factor 50% 0.75
Power Factor 75% 0.84
Power Factor @ 1 % 91
Power Factor @ 50 % 90.2
Power Factor @ 75 % 91
Product Datasheet weg-02536op3efp256t-s.pdf
Regreasing System At Drive End And Non Drive End , At Drive End And Non-Drive End
Resilient Base Without
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 1.94%
Speed 3400-3600 RPM , 3530 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 37.2 lbs.-ft.
Tropicalized Painting Without
Voltage 190-220/230/380-415/460V , 230/460/190-220/380-415V AC , 230/460V AC

Shipping Info:

Ship weight (kg) 98.55
Ship height (cm)25.4
Ship length (cm)50.8
Ship width (cm)25.4
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpFrequencyService FactorFull Load AmpsFrameNo. Of PolesNo Load AmpsPrice
WEG 01036OP3EFP213TC Electric Motor, 10Hp, 60Hz, 3515 Rpm | BB3UBE 01036OP3EFP213TC208-230/460V10 hp60 Hz112.2/24.4-27A213TC25/10A-
RFQ
WEG 01036OP3HFP213TC Electric Motor, 10Hp, 60Hz, 3515 Rpm | BB3YLW 01036OP3HFP213TC575V10 hp60 Hz19.76A213TC24A-
RFQ
WEG 01536OP3EFP215TC Electric Motor, 15Hp, 3600 Rpm | BB6DPA 01536OP3EFP215TC230/460V15 hp---215TC---
RFQ
WEG 01036OP3EFP213TC-S Electric Motor, 10Hp, 60Hz, 3600 Rpm | BB7LTP 01036OP3EFP213TC-S230/460V AC10 hp60 Hz1.15-213/5TC210.3/5.13A€1,074.97
WEG 01536OP3VFP215TC-S Electric Motor, 15Hp, 60Hz, 3600 Rpm | BB7VNR 01536OP3VFP215TC-S200/400V AC15 hp60 Hz1.15-213/5TC216.9/8.46A€1,530.71
WEG 01036OP3HFP213TC-S Electric Motor, 10Hp, 60Hz, 3600 Rpm | BB7ZAH 01036OP3HFP213TC-S575V AC10 hp60 Hz1.15-213/5TC24.1A€1,074.97
WEG 00736OP3HFP184TC-S Electric Motor, 7.5Hp, 60Hz, 3600 Rpm | BB8PTJ 00736OP3HFP184TC-S575V AC7 1/2 hp60 Hz1.15-182/4TC22.8A€819.82
