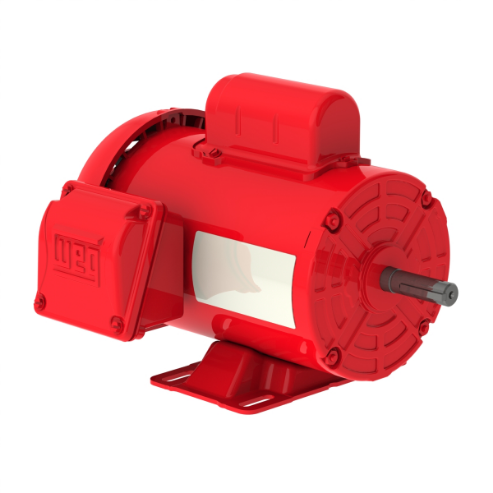

WEG .3318ES1RFDW56-S Electric Motor, 0.33Hp, 60Hz, 1800 Rpm | BC3JHV

WEG .3318ES1RFDW56-S 13590271 Farm Duty Motor, 0.33 HP, 4 Poles, W56 Frame, 1 Phase, 115/230V, 60 Hz, Foot-mounted

Item: BC3JHVModel: .3318ES1RFDW56-SCross Ref: 13590271
Check Availability
In Stock
HP
Frame

Get it by Tuesday, Aug 25

€338.84 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 m.a.s.l. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 6/3A
Balancing Method Not Balanced
Bearing Cap No
Bolt Material Carbon Steel
Break Down Torque 280%
Cold Locked Rotor Time 21 sec.
Composition Steel
De Bearing Seal V Ring
Degree Of Protection IP55
Design No
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Cont.(S1) , Continuous
Efficiency 50% 42%
Efficiency @ 1 % 59%
Efficiency @ 75 % 51%
Enclosure IC411
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Industrial Polymer , Polymer
Fan Material Plastic
Flange Without
Flange Type Without
Frame W56
Frame Material Rolled Steel
Frequency 60 Hz
Grade Grade 1010/20
Grounding Lugs Single
Grounding Lugs Type Single
Hot Locked Rotor Time 12 sec.
Hp 1/3 hp
Impregnation Method Dip And Bake Polyester
Insulation Class F
L. R. Amps 33.6/16.8A
Locked Rotor Time(hot) 12 sec.
Locked Rotor Torque 320%
Lrc 5.6X(Code N)
Main Terminal Box Hole Size 0.881"
Material Carbon Steel
Moment Of Inertia 0.0399 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1735 RPM
Mounting F-1 , Foot Mounted
Nde Bearing Seal No
No Load Amps 5.4/2.7A
No. Of Poles 4
Noise Level 52 dBA
Output 1/3 hp
Output Rating 0.33 hp , 1/3 hp
Overload Protector Manual
Overload Protector (phenolic) Manual
Painting Only Primer , RAL3003 207N (ISO 12944-C2)
Phase 1
Power Factor @ 1 % 61
Power Factor @ 50 % 46
Power Factor @ 75 % 55
Resilient Base Without
Rotation CW And CCW , CW, CCW
Service Factor 1.15
Shaft Material Carbon Steel , SAE 1040/45 Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.61%
Speed 1700-1800 RPM
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 0.999 lbs.-ft.
Tropicalized Painting Without
Voltage 115/230V , 115/230V AC

Shipping Info:

Ship weight (kg) 11.7
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelVoltageService FactorHpFrameInsulation ClassDuty CycleNo. Of PolesSynchronous SpeedPrice
WEG .5018ES1RFDW56-S Electric Motor, 1/2Hp, 60Hz, 1800 Rpm | BC2ZPE .5018ES1RFDW56-S115/230V1.151/2 hpW56Class FS141800 RPM€367.46
WEG 00136ES1B143T-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BC3DBC 00136ES1B143T-S115/208-230V AC1.15-143/5TClass FS123600 RPM€659.77
WEG 00118ES1E143T-S Electric Motor, 1Hp, 60Hz, 1800 Rpm | BC3GXK 00118ES1E143T-S208-230/460V AC1.151 hp143/5TClass FS141800 RPM€633.53
WEG 00118ES1ER143TC-S Electric Motor, 1Hp, 60Hz, 1800 Rpm | BC3GXL 00118ES1ER143TC-S208-230/460V AC1.151 hp143/5TCClass FS141800 RPM€666.92
WEG 00118ES1RFD143T-S Electric Motor, 1Hp, 60Hz, 1800 Rpm | BC3GXN 00118ES1RFD143T-S115/230V1.151 hp143/5TClass FS141800 RPM€477.24
WEG 00156ES1B143T-S Electric Motor, 1.5Hp, 60Hz, 3600 Rpm | BC3GZP 00156ES1B143T-S115/208-230V AC1.15-143/5TClass FS123600 RPM€718.25
WEG 00158ES1B145T-S Electric Motor, 1.5Hp, 60Hz, 1800 Rpm | BC3HBM 00158ES1B145T-S115/208-230V AC1.151 1/2 hp143/5TClass FS141800 RPM€730.16
