WEG 00236ES1E145T-S 13876514 Electric Motor, 2Hp, 60Hz, 3600 Rpm

Item: BC3HDKModel: 00236ES1E145T-SCross Ref: 13876514

Check Availability

In Stock

Get it by Thursday, Dec 18

€763.58 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	General Purpose Motor
Altitude	1000 MASL
Ambient Temp.	-20°C to +40°C
Balancing Method	1/2" Key
Bearing Cap	No
Bolt Material	Carbon Steel
Break-down Torque	250%
Cold Locked Rotor Time	10 sec.
Composition	Steel
Design	L
Drain	Rubber, Automatic
Drip Cover	Without
Duty Cycle	S1
Efficiency At 1 %	95%
Efficiency At 50 %	89%
Efficiency At 75 %	93%
Enclosure Type	Tefc
Fan Cover Material	Polymer
Fan Material	Plastic
Flange Type	Without
Frame	143/5T
Frame Material	Rolled Steel
Frequency	60 Hz
Grounding Lugs	Single
Hot Locked Rotor Time	6 sec.
Hp	2 hp
Impregnation Method	Dip And Bake Polyester
Insulation Class	Class F
L. R. Amps	76.4-69.6/34.8A
Locked Rotor Torque	220%
Lrc	7.8X(Code K)
Main Terminal Box Hole Size	1.118"
Moment Of Inertia	0.0707 lbs.-sq. ft.
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Speed	3495 RPM
Mounting	Foot Mounted
No Load Amps	2.59-3/1.5A
No. Of Poles	2
Noise Level	68 dBA
Output	2 hp
Output Rating	2 hp
Overload Protector	Without Overload Protector
Painting	Munsell N 1-Matte 207N (ISO 12944-C2)
Phase	1
Power Factor At 1 %	77
Power Factor At 50 %	70
Power Factor At 75 %	75
Rated Current	9.8-8.92/4.46A
Rated Torque	3.01 lbs.-ft.
Rated Voltage	208-230/460V AC
Resilient Base	Without
Rotation	CW/CCW
Rpm	3400-3600 RPM
Service Factor	1.15
Shaft Material	Carbon Steel
Shaft Material Grade	Grade 1040/45
Ships Factory Direct	No
Slip	2.92%
Starting Method	Direct On Line
Synchronous Speed	3600 RPM
Temp. Rise	80 K
Terminal Block	Without
Terminal Box	Left Position
Tropicalized Painting	Without
Voltage	208-230/460V AC

Shipping Info:

Ship weight (kg)	19.35
Ship height (cm)	24.38
Ship length (cm)	39.88
Ship width (cm)	30.99
Country of Origin	US

Product Variants

Model	Voltage	Phase	Hp	Frame	Duty Cycle	Frame Material	Synchronous Speed	No Load Amps	Price
00218ES1RFD56H-S	115/230V AC	1	2 hp	56H	S1	Rolled Steel	1800 RPM	12.2/6.1A	€631.13
00156ES1B56-S	115/208-230V AC	1	1 1/2 hp	56	S1	Rolled Steel	3600 RPM	4.6/1.98-2.3A	€515.42
00136ES1B56-S	115/208-230V	1	-	56	Continuous	Rolled Steel	3600 RPM	5.5/2.37-2.75A	€448.60
01018ES1E215T-W22	208-230/460V	1	10 hp	213/5T	Continuous	Cast Iron	1800 RPM	9.66-11.2/5.6A	€1,836.76

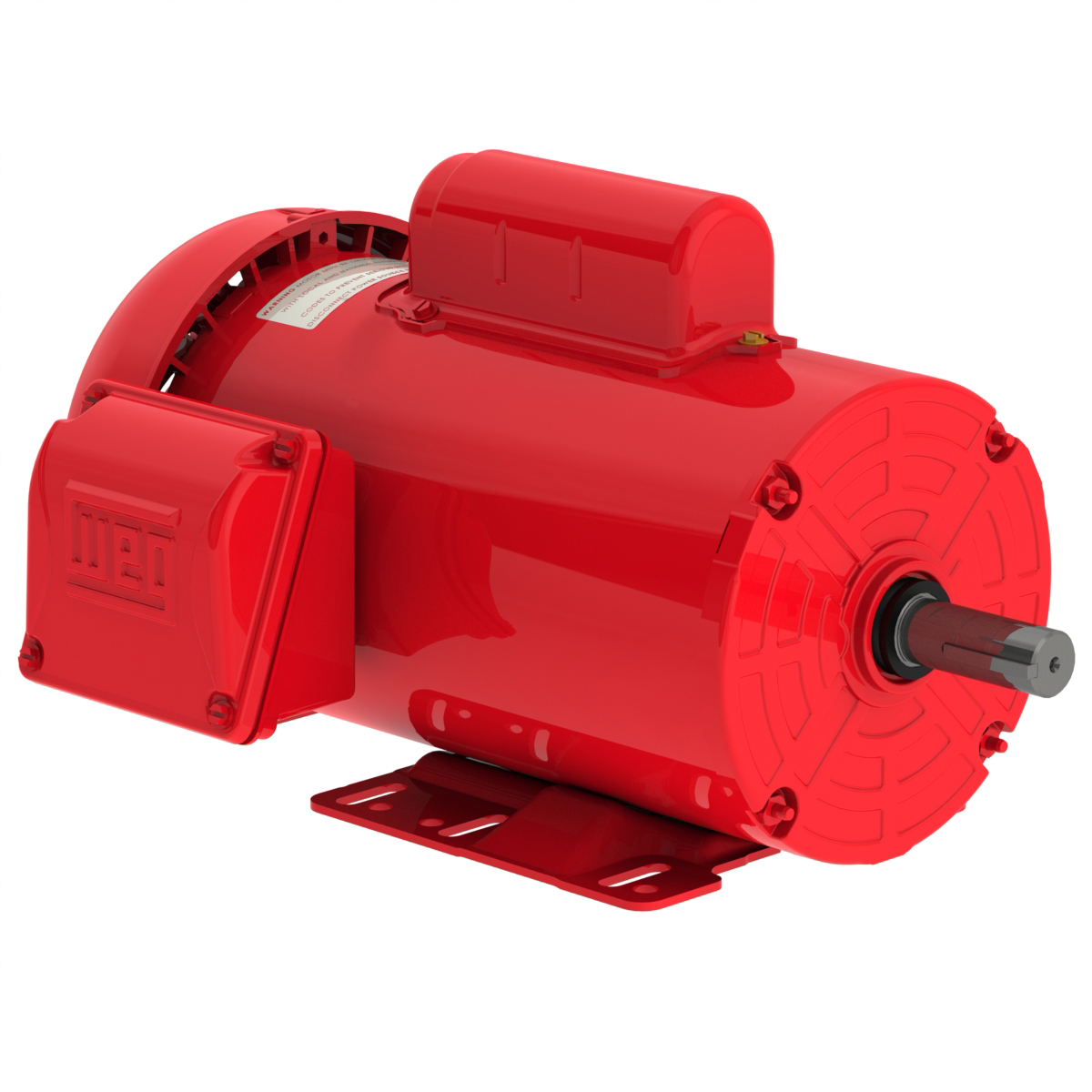

00118ES1RFD56-S	115/230V AC	1	1 hp	56	S1	Rolled Steel	1800 RPM	9.6/4.8A	€470.06
00118ES1B56-S	115/208-230V AC	1	1 hp	56	S1	Rolled Steel	1800 RPM	9.6/4.14-4.8A	€533.13
00156ES1BOL56-S	115/208-230V AC	1	1 1/2 hp	56	S1	Rolled Steel	3600 RPM	4.6/1.98-2.3A	€552.39
