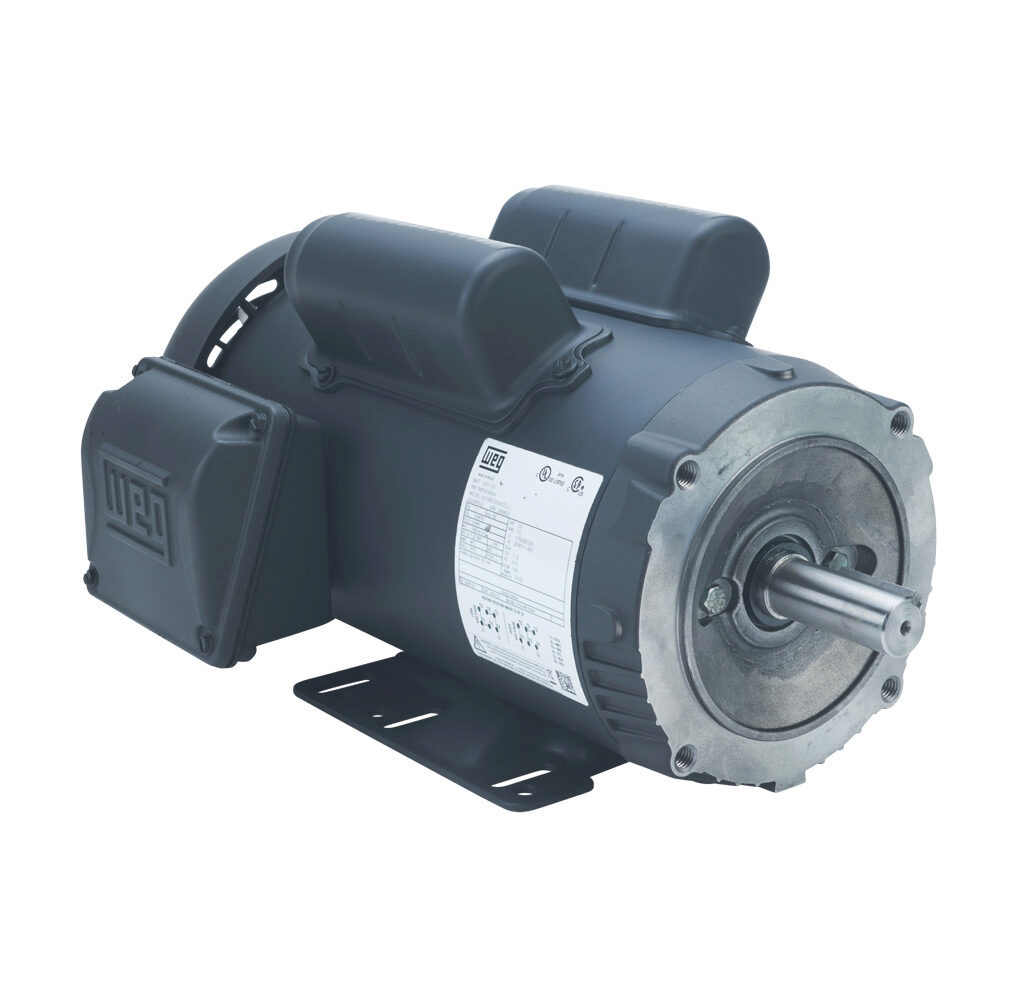

WEG 00218ES1B145TC-S 13817197 General Purpose Motor, TEAO/TEFC RolLED Steel 143/5TC Frame, 2 HP, 1745 RPM, 115/208-230 V
Get it by Wednesday, Apr 8
€1,049.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 260% |
| Breakdown Torque | 260% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 10 sec. |
| Composition | Steel |
| Design | L |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 78.5% |
| Efficiency @ 100% | 78.5% |
| Efficiency @ 50% | 70% |
| Efficiency @ 75% | 76% |
| Efficiency At 1 % | 82% |
| Efficiency At 50 % | 66% |
| Efficiency At 75 % | 76% |
| Efficiency Group | Standard Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Industrial Polymer , Polymer |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 143/5TC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 6 sec. |
| Hp | 2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Integrated Brake | No |
| Ip Rating | IP55 |
| L. R. Amps | 160/88.8-80A |
| L.r. Amperes | 80-88.8/160A |
| Locked Rotor Time | 6 sec. |
| Locked Rotor Time (cold) | 10 sec. |
| Locked Rotor Torque | 260% |
| Lrc | 8.0X(Code L) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.1614 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1614 lbs.-sq. ft. |
| Motor Application | General Purpose |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 143/5TC |
| Motor Speed | 1745 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 1745 RPM |
| Nema Design | Design L |
| No Load Amps | 12.2/5.26-6.1A , 5.26-6.1/12.2A |
| No. Of Poles | 4 |
| Noise Level | 54 dBA |
| Number Of Phases | 1 |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 1 |
| Power Factor 50% | 0.66 |
| Power Factor 75% | 0.76 |
| Power Factor At 1 % | 78.5 |
| Power Factor At 50 % | 70 |
| Power Factor At 75 % | 76 |
| Power Factor_100% | 0.82 |
| Rated Current | 10-11.1/20A , 20/11.1-10A |
| Rated Speed | 1745 RPM |
| Rated Torque | 6.02 lbs.-ft. |
| Rated Voltage | 115/208-230V , 115/208-230V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Diameter | 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 3.06% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V AC |
| Voltage Rating | 115/208-230V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 23.75 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Hp | Frame | Duty Cycle | Synchronous Speed | No Load Amps | Mounting | Output Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
.5018ES1RFDW56-S | 115/230V AC | 1/2 hp | W56 | S1 | 1800 RPM | 6.6/3.3A | Foot Mounted | 1/2 hp | €367.46 | |
 |
00136ES1B143T-S | 115/208-230V AC | - | 143/5T | S1 | 3600 RPM | 5.5/2.37-2.75A | Foot Mounted | 1 hp | €659.77 | |
 |
00118ES1E143T-S | 208-230/460V AC | 1 hp | 143/5T | S1 | 1800 RPM | 2.4/4.14-4.8A | Foot Mounted | 1 hp | €633.53 | |
 |
00118ES1ER143TC-S | 208-230/460V AC | 1 hp | 143/5TC | S1 | 1800 RPM | 4.14-4.8/2.4A | Footless | 1 hp | €666.92 | |
 |
00118ES1RFD143T-S | 115/230V AC | 1 hp | 143/5T | S1 | 1800 RPM | 9.6/4.8A | Foot Mounted | 1 hp | €477.24 | |
|
00156ES1B143T-S | 115/208-230V AC | - | 143/5T | S1 | 3600 RPM | 4.6/1.98-2.3A | Foot Mounted | 1 1/2 hp | €718.25 | |
|
00158ES1B145T-S | 115/208-230V AC | 1 1/2 hp | 143/5T | S1 | 1800 RPM | 8.6/3.71-4.3A | Foot Mounted | 1 1/2 hp | €730.16 |
