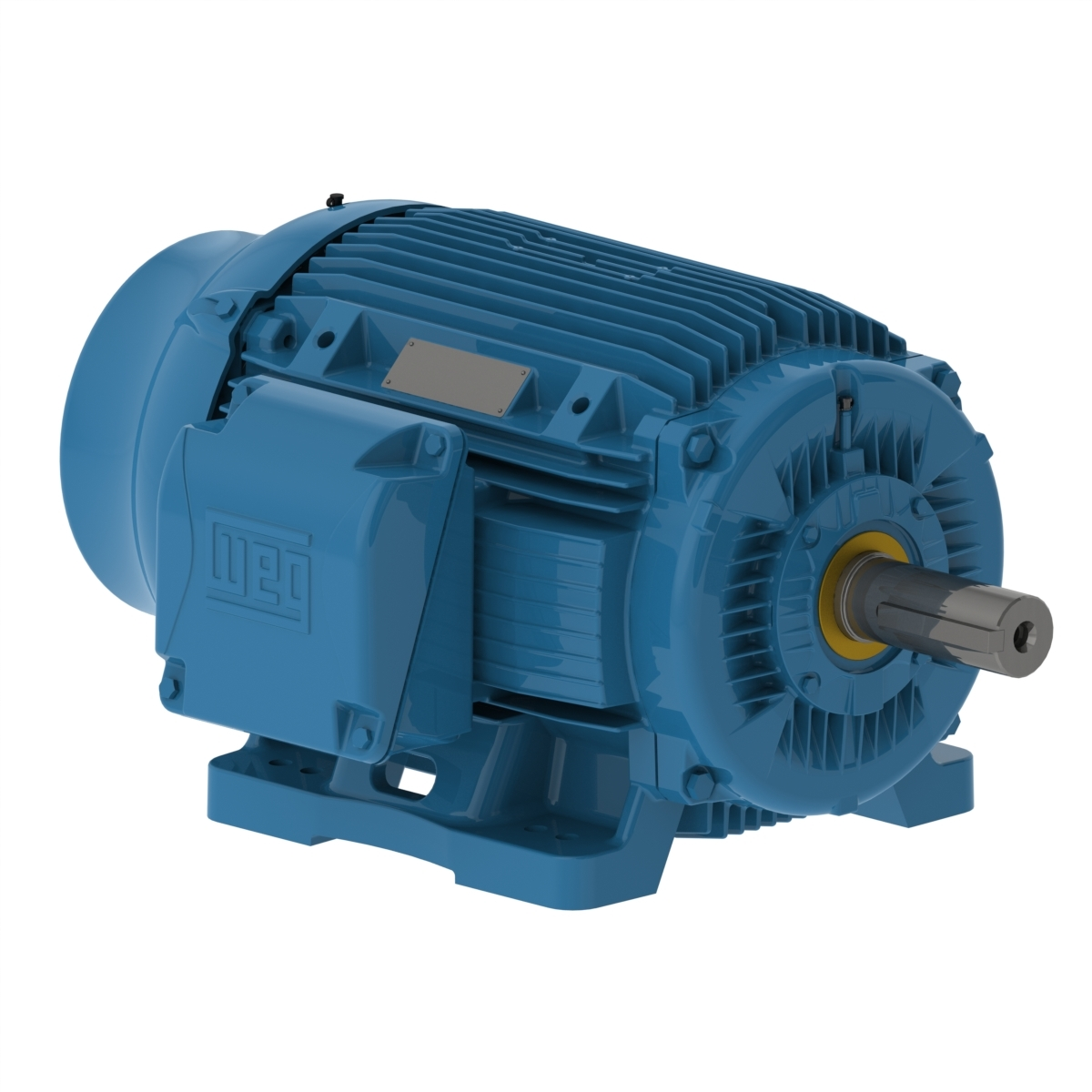

WEG 10018ST3HIERB405T-W2 13416636 Severe Duty Motor, 100 HP, 4 Poles, 404/5T Frame, 3 Phase, 575 V, 60 Hz, IC411-TEFC, Foot Mounted With Shaft Locking Device
1800 rpm
100 hp
405T
Get it by Monday, Apr 13
€14,286.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 220% |
| Breakdown Torque | 220% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 23 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 3 |
| Design | B |
| Drain | Type T, Threaded |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 95.4% |
| Efficiency @ 50% | 95% |
| Efficiency @ 75% | 95% |
| Efficiency At 1 % | 85% |
| Efficiency At 50 % | 77% |
| Efficiency At 75 % | 84% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Conductive Plastic , Plastic |
| Flange | Without |
| Flange Type | Without |
| Foot Flatness | (0.005 Pol) 0.127 mm , 0.127 mm |
| Frame | 404/5T |
| Frame Material | Cast Iron |
| Frame Size | 404/5T |
| Frequency | 60 Hz |
| Grounding Lugs | Double |
| Hot Locked Rotor Time | 13 sec. |
| Hp | 100 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| Joints Seal | Molykote |
| L. R. Amps | 575A |
| L.r. Amperes | 575A |
| Locked Rotor Time (cold) | 23 sec. |
| Locked Rotor Time (hot) | 13 sec. |
| Locked Rotor Torque | 240% |
| Lrc | 6.2X(Code G) |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Hole Size | 3" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 29.9 lbs.-sq. ft. |
| Moment Of Inertia (j) | 29.9 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1775 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 25.6A |
| No. Of Poles | 4 |
| Noise Level | 68 dBA |
| Output | 100 hp |
| Output Rating | 100 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 202E (ISO 12944-C4) |
| Phase | 3 |
| Power Factor 50% | 0.77 |
| Power Factor 75% | 0.84 |
| Power Factor At 1 % | 95.4 |
| Power Factor At 50 % | 95 |
| Power Factor At 75 % | 95 |
| Power Factor_100% | 0.85 |
| Rated Current | 92.8A |
| Rated Speed | 1775 RPM |
| Rated Torque | 296 lbs.-ft. |
| Rated Voltage | 575V , 575V AC |
| Regreasing System | Extended In Stainless Steel, At Drive End And Non-Drive End , Stainless Steel, At Drive End And Non Drive End |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | With |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 1.39% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | According To Ieee-841 (96H) |
| Voltage | 575V AC |
Shipping Info:
| Ship weight (kg) | 606.6 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 115.06 |
| Ship width (cm) | 85.09 |
| Country of Origin | US |
Product Variants
| Model | Service Factor | Frequency | Motor Enclosure Design | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 1 | 50 Hz | Totally Enclosed Fan Cooled | 2 hp | 2.8A | 1755 RPM | - | Rigid Base | €914.46 | |
| 00218ET3W100L-W22 | 1 | 60 Hz | Totally Enclosed Fan Cooled | 3 hp | 4.1A | 1750 RPM | - | Rigid Base | €1,095.12 | |
| 00418ET3Y112M-W22 | 1 | 50 Hz | Totally Enclosed Fan Cooled | 5 1/2 hp | 7.3A | 1755 RPM | - | Rigid Base | €1,177.86 | |
| 00518ET3Y132S-W22 | 1 | 60 Hz | Totally Enclosed Fan Cooled | 7 1/2 hp | 9.1A | 1775 RPM | - | Rigid Base | €1,613.01 | |
| 00718ET3Y132M-W22 | 1 | 50 Hz | Totally Enclosed Fan Cooled | 10 hp | 12.2A | 1770 RPM | - | Rigid Base | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 1.25 | 50/60 Hz | Totally Enclosed Fan Cooled | 25 hp | 30.6A | 1775 RPM | - | Face/Base | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 1.25 | 50/60 Hz | Totally Enclosed Fan Cooled | 30 hp | 36A | 1775 RPM | - | Face/Base | €5,926.53 |
