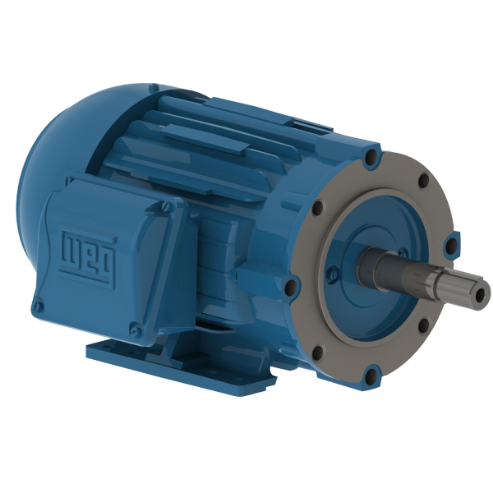

WEG 00118ET3V143JM-W22 Electric Motor, 1Hp, 60Hz, 1800 Rpm | BB8TTX

WEG 00118ET3V143JM-W22 12474402 Pump Motor, 1 HP, 1800 RPM, 200/400V, 2.16/1.08 A No Load Current, TEFC, 143JM, Footed, Close CoupLED Pump

Item: BB8TTXModel: 00118ET3V143JM-W22Cross Ref: 12474402
Check Availability
In Stock

Get it by Thursday, Aug 27

€731.35 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Amps 1.69/3.38A
Bearing Cap Yes
Break Down Torque 350%
Cold Locked Rotor Time 32 sec.
Connection Cables Quantity 12
De Bearing Seal V Ring
Degree Of Protection IP55
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 80%
Efficiency 75% 84%
Efficiency @ 100% 85.5%
Enclosure IC411
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange C
Frame 143JM
Frame Material Cast Iron
Frame Size 143/5JM
Grade Grade 1010/20
Grounding Lugs Single
Grounding Lugs Type Single
Impregnation Method Dip and Bake Polyester
Insulation Class Class F
L. R. Amps 14.5/29.1A
Locked Rotor Time (cold) 32 sec.
Locked Rotor Torque 290%
Lrc 8.6x(Code M)
Main Terminal Box Hole 3/4"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Material Carbon Steel
Moment Of Inertia (j) 0.1172 lbs.-sq. ft.
Mounting F-1
Nde Bearing Seal V Ring
No Load Amps 1.08/2.16A
No. Of Poles 4
Noise Level 51 dBA
Output Rating 1 hp
Overload Protection No
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Phase 3
Power Factor 100% 0.75
Power Factor 50% 0.55
Power Factor 75% 0.68
Product Datasheet weg-00118et3v143jm-w22.pdf
Pump Seal Mechanical Seal
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.25
Shaft Material Carbon Steel
Slip 2.22%
Speed 1700-1800 RPM , 1760 RPM
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 2.98 lbs.-ft.
Tropicalized Painting Without
Voltage 200/400V , 200/400V AC

Shipping Info:

Ship weight (kg) 23.85
Ship height (cm)32.26
Ship length (cm)52.83
Ship width (cm)37.08
Country of OriginUS
