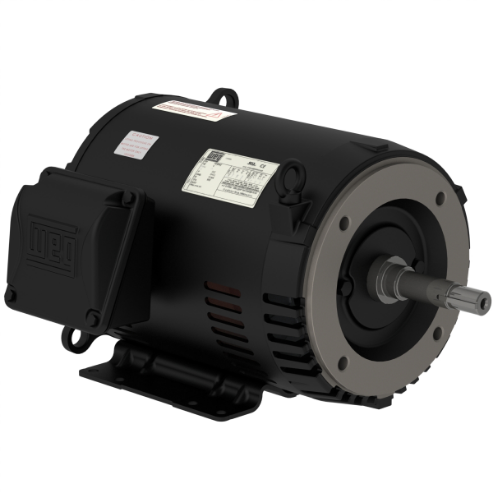

WEG 02536OT3E256JM-SG 14243693 Pump Motor, 25 HP, 3600 RPM, 208/230/460V, ODP, 254/6JM, Footed, Close CoupLED Pump With Bearing Protection
Get it by Monday, Aug 24
€3,328.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 33A , 58.2/29.1A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 260% , 290% |
| Cold Locked Rotor Time | 0 sec. , 16 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | No |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 73% |
| Efficiency @ 1 % | 87% |
| Efficiency @ 75 % | 83% |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame Material | Rolled Steel |
| Frame Size | 256JM |
| Frame Type | 254/6JM |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Superior |
| Grounding Lugs Type | Superior |
| Hot Locked Rotor Time | 9 sec. |
| Hp | 25 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 208A , 367/183A |
| Locked Rotor Time(hot) | 0 sec. |
| Locked Rotor Torque | 180% |
| Lrc | 6.3X(Code G) |
| Main Terminal Box Hole Size | 1.732" |
| Material | Carbon Steel |
| Max. Ambient Temp. | -20°C to +40°C |
| Moment Of Inertia | 0.9155 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Mounting | Foot Mounted , Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 14.1A , 22.8/11.4A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA , 70 dBA |
| Output Hp | 25 hp |
| Output Power | 18.5 kW |
| Output Rating | 18.5 kW , 25 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer |
| Phase | 3 |
| Power Factor @ 1 % | 91.7 |
| Power Factor @ 50 % | 91 |
| Power Factor @ 75 % | 91.7 |
| Product Datasheet | weg-02536ot3e256jm-sg.pdf |
| Rated Speed | 2920 RPM |
| Rated Torque | 45 lbs.-ft. |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.15 |
| Shaft Grade | Grade SAE 1040/45 |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Slip | 1.94% , 2.67% |
| Speed | 3400-3600 RPM , 3530 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 37.2 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460V , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 97.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 55.8 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Duty Cycle | No. Of Poles | Synchronous Speed | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
02018OT3E256T-SG | 230/460V AC | 60 Hz | 1.15 | - | S1 | 4 | 1800 RPM | 22.9/11.4A | €3,401.96 | |
|
00718OT3E213T-SG | 230/460V AC | 60 Hz | 1.15 | 7 1/2 hp | S1 | 4 | 1800 RPM | 8.79/4.39A | €2,028.52 | |
|
01518OT3E254T-SG | 230/460V AC | 60 Hz | 1.15 | - | S1 | 4 | 1800 RPM | 19/9.5A | €2,830.11 | |
 |
00336OT3E145T-SG | 230/460V AC | 60 Hz | 1.15 | - | S1 | 2 | 3600 RPM | 2.6/1.3A | €817.25 | |
 |
02036OT3E254JM-SG | 230/460V AC | 60 Hz | 1.15 | 20 hp | S1 | 2 | 3600 RPM | 17/8.5A | €2,759.44 | |
|
00518OT3E184T-SG | 230/460V AC | 60 Hz | 1.15 | 5 hp | Continuous | 4 | 1800 RPM | 6.29/3.15A | €1,288.60 | |
|
01018OT3E215T-SG | 230/460V AC | 60 Hz | 1.15 | 10 hp | S1 | 4 | 1800 RPM | 12/5.99A | €2,097.23 |
