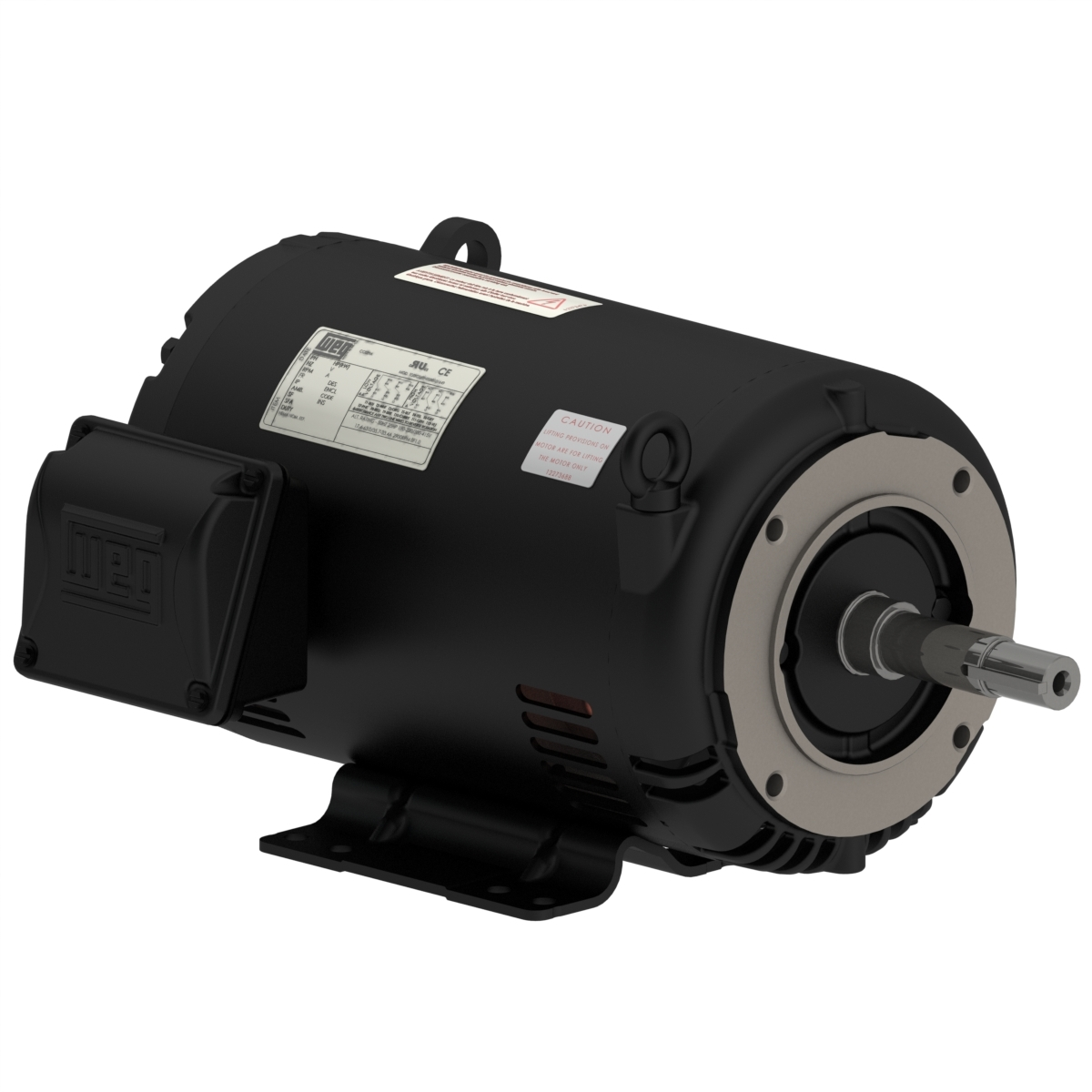

WEG 00536OT3E182JM-SG 13171654 Electric Motor, 5Hp, 60Hz, 3600 Rpm
Get it by Friday, Dec 19
€1,147.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 MASL |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 21 sec. |
| Connection Cables Quantity | 9 |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 88% |
| Efficiency At 50 % | 73% |
| Efficiency At 75 % | 83% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | C |
| Frame Material | Rolled Steel |
| Frame Size | 182JM |
| Frame Type | 182/4JM |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 12 sec. |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 92.7/46.4A |
| Locked Rotor Torque | 190% |
| Lrc | 7.6X(Code J) |
| Main Terminal Box Hole Size | 1.118" |
| Max. Ambient Temp. | -20°C to +40°C |
| Moment Of Inertia | 0.1386 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Mounting | Foot Mounted |
| No Load Amps | 5.15/2.58A |
| No. Of Poles | 2 |
| Noise Level | 65 dBA |
| Output Hp | 5 hp |
| Output Power | 3.7 kW |
| Output Rating | 5 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 86.5 |
| Power Factor At 50 % | 85.5 |
| Power Factor At 75 % | 86.5 |
| Rated Current | 12.2/6.1A |
| Rated Speed | 3510 RPM |
| Rated Torque | 7.48 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Grade | Grade SAE 1040/45 |
| Shaft Material | Carbon Steel |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 30.77 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 41.3 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Hp | Rpm Range | Nameplate Rpm | Motor Application | Motor Design | Shaft Dia. | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118OT3E143JM-S | 208-230/460V AC | 1 hp | 1701-1800 RPM | 1760 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €652.46 | |
| 00156OT3E143JM-S | 208-230/460V AC | 1 1/2 hp | 3001-3600 RPM | 3510 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €866.98 | |
| 00158OT3E145JM-S | 208-230/460V AC | 1 1/2 hp | 1701-1800 RPM | 1760 RPM | Close Coupled Pump | - | 7/8" | Rolled Steel | €742.21 | |
| 00218OT3E145JM-S | 208-230/460V AC | 2 hp | 1701-1800 RPM | 1760 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €783.93 | |
| 00318OT3E182JM-S | 208-230/460V AC | 3 hp | 1701-1800 RPM | 1760 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €891.49 | |
| 00336OT3E145JM-S | 208-230/460V AC | 3 hp | 3001-3600 RPM | 3480 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €877.33 | |
| 00518OT3E184JM-S | 208-230/460V AC | 5 hp | 1701-1800 RPM | 1760 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €1,149.07 |
