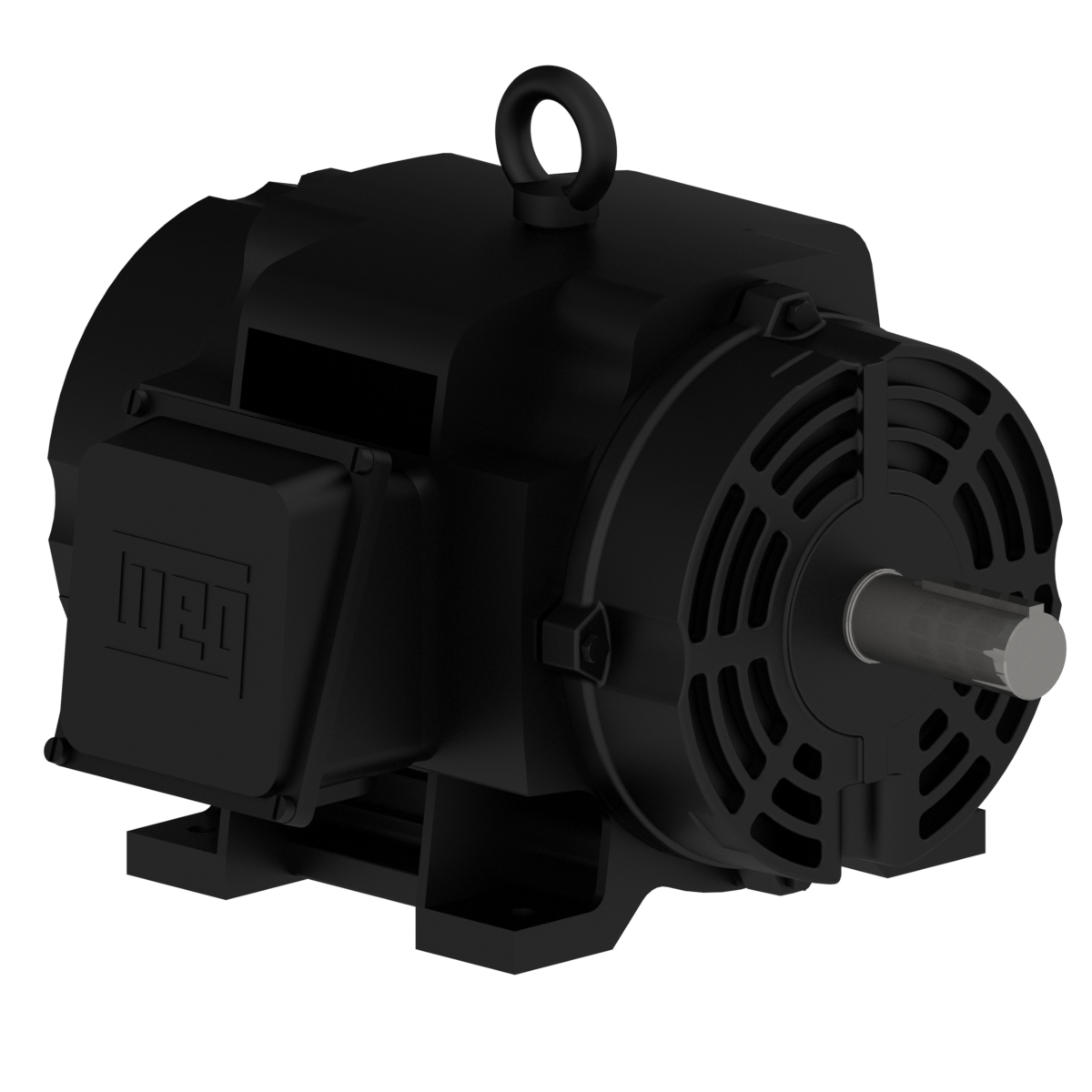

WEG 00118OT3E143T-SG 12674953 Air Handling Motor, 1 HP, 1800 RPM, 208/230/460 V, 3 Phase, ODP, 143/5T Frame, Footed, HVAC with Internal Shaft Grounding Rings
Get it by Monday, Aug 31
€632.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 1.51/3.02A |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 360% |
| Cable Press Material | Sem |
| Connection Cables Quantity | 9 |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 81.5% |
| Efficiency 75% | 84% |
| Efficiency @ 100% | 85.5% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Flange Type | Without |
| Frame | 143/5T |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 12.1/24.2A |
| Locked Rotor Time (cold) | 39 sec. |
| Locked Rotor Time(hot) | 22 sec. |
| Locked Rotor Torque | 290% |
| Main Terminal Box Hole | 1.118" |
| Moment Of Inertia (j) | 0.1101 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 0.958/1.92A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output Rating | 1 hp |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 100% | 0.73 |
| Power Factor 50% | 0.51 |
| Power Factor 75% | 0.65 |
| Product Datasheet | weg-00118ot3e143t-sg.pdf |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Slip | 2.22% |
| Speed | 1700-1800 RPM , 1760 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 2.98 lbs.-ft. |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Duty Cycle | No. Of Poles | Synchronous Speed | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
02018OT3E256T-SG | 230/460V AC | 60 Hz | 1.15 | - | S1 | 4 | 1800 RPM | 22.9/11.4A | €3,401.96 | |
|
00718OT3E213T-SG | 230/460V AC | 60 Hz | 1.15 | 7 1/2 hp | S1 | 4 | 1800 RPM | 8.79/4.39A | €2,028.52 | |
|
01518OT3E254T-SG | 230/460V AC | 60 Hz | 1.15 | - | S1 | 4 | 1800 RPM | 19/9.5A | €2,830.11 | |
 |
00336OT3E145T-SG | 230/460V AC | 60 Hz | 1.15 | - | S1 | 2 | 3600 RPM | 2.6/1.3A | €817.25 | |
 |
02036OT3E254JM-SG | 230/460V AC | 60 Hz | 1.15 | 20 hp | S1 | 2 | 3600 RPM | 17/8.5A | €2,759.44 | |
|
00518OT3E184T-SG | 230/460V AC | 60 Hz | 1.15 | 5 hp | Continuous | 4 | 1800 RPM | 6.29/3.15A | €1,288.60 | |
|
01018OT3E215T-SG | 230/460V AC | 60 Hz | 1.15 | 10 hp | S1 | 4 | 1800 RPM | 12/5.99A | €2,097.23 |
