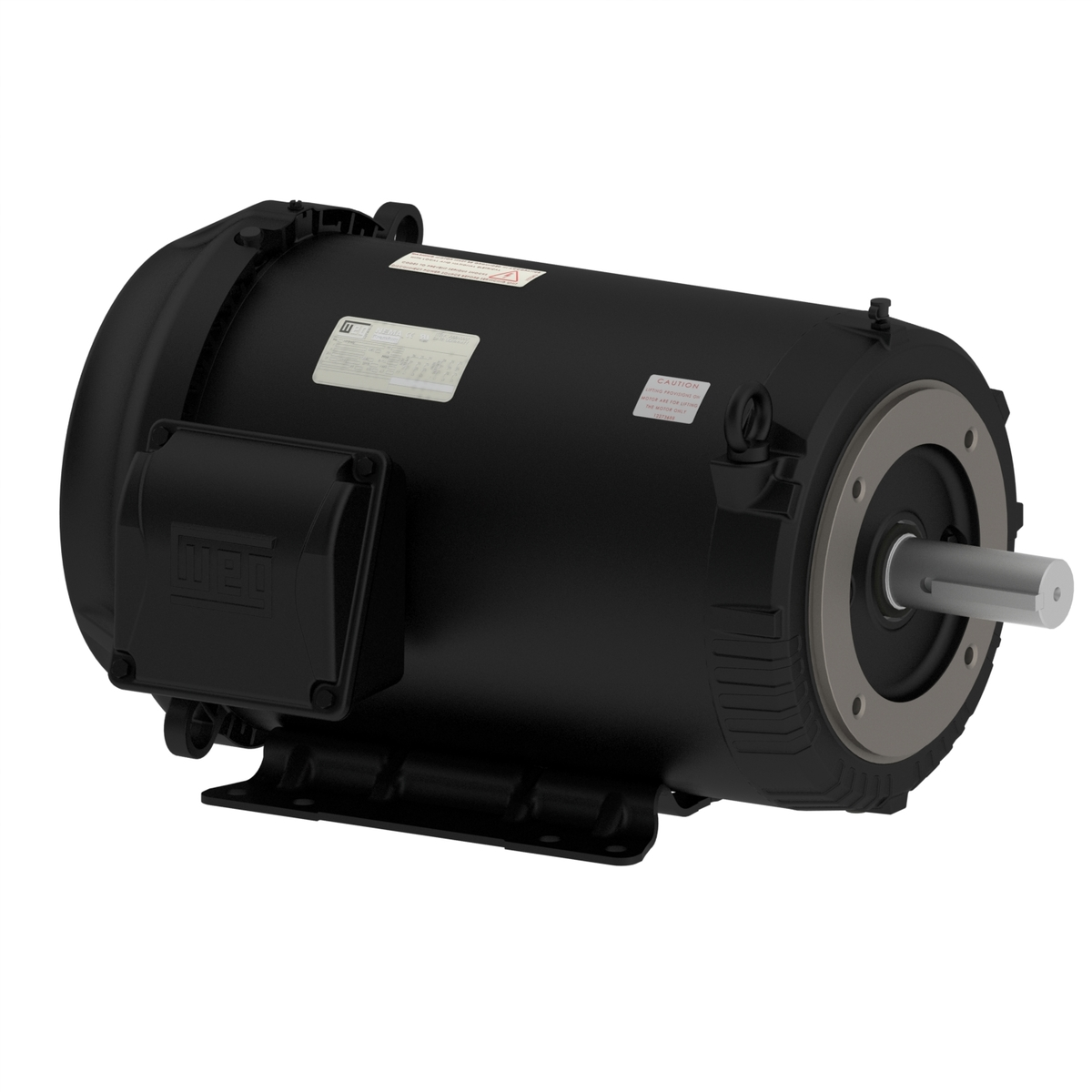

WEG 02036ET3E256TC-S Electric Motor, 20Hp, 60Hz, 3600 Rpm | BB8TWG

WEG 02036ET3E256TC-S 14122241 General Purpose Motor, TEAO/TEFC RolLED Steel 254/6TC Frame, 15 HP, 2940 RPM, 415 V

Item: BB8TWGModel: 02036ET3E256TC-SCross Ref: 14122241
Check Availability
In Stock

Get it by Monday, Feb 23

€2,469.27 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 290%
Cold Locked Rotor Time 21 sec.
Connection Cables Quantity 12
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 91%
Efficiency At 50 % 81%
Efficiency At 75 % 88%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type C
Frame 254/6TC
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Superior
Hot Locked Rotor Time 12 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 300/150A
Locked Rotor Torque 200%
Lrc 6.6X(Code G)
Main Terminal Box Hole Size 1.732"
Moment Of Inertia 1.22 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3515 RPM
Mounting Foot Mounted
No Load Amps 13.8/6.88A
No. Of Poles 2
Noise Level 75 dBA
Output 20 hp
Output Rating 20 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 91
Power Factor At 50 % 90
Power Factor At 75 % 91
Product Datasheet weg-02036et3e256tc-s.pdf
Rated Current 45.4/22.7A
Rated Torque 29.9 lbs.-ft.
Rated Voltage 230/460V AC
Regreasing System At Drive End And Non Drive End
Resilient Base Without
Rotation CW/CCW
Rpm 3400-3600 RPM
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.36%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 114.54
Ship height (cm)2.54
Ship length (cm)59.31
Ship width (cm)2.54

Documentation:

Datasheet

Product Variants

ProductModelVoltageService FactorHpFrequencyMotor Enclosure DesignFull Load AmpsNameplate RpmMotor TypePrice
WEG 01836ET3Y160LFF-W22 Metric Motor, 25Hp, 230/460v Cw / Ccw | AA2GEN 10G894 01836ET3Y160LFF-W22380-415/460V1.2525 hp50 HzTotally Enclosed Fan Cooled29.9A3550 RPM-€5,367.05
WEG 03736ET3Y200LFF-W22 Metric Motor, 50Hp, 230/460v Cw / Ccw | AA2GEY 10G904 03736ET3Y200LFF-W22380-415/460V1.2550 hp60 HzTotally Enclosed Fan Cooled59.8A3570 RPM-€9,770.55
WEG 05536ET3Y250S/MFF-W2 Metric Motor, 75Hp, 230/460V, Cw / Ccw | AA2GFD 10G909 05536ET3Y250S/MFF-W2460V AC1.2575 hp50/60 HzTotally Enclosed Fan Cooled80.3A3600 RPM-€16,526.29
WEG 00156ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 3495 Rpm 143tc | AA4JCX 12N885 00156ET3H143TC-W22575V AC1.251 1/2 hp60 HzTotally Enclosed Fan Cooled1.57A3480 RPMThree Phase€840.81
WEG 00236ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 2 Hp, 3490 Rpm 145tc | AA4JCZ 12N887 00236ET3H145TC-W22575V AC1.252 hp60 HzTotally Enclosed Fan Cooled2.05A3475 RPMThree Phase€853.67
WEG 00336ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 3510 Rpm 182tc | AA4JDB 12N889 00336ET3H182TC-W22575V13 hp60 HzTotally Enclosed Fan Cooled2.9A3515 RPMThree Phase€1,055.20
WEG 00536ET3H184TC-W22 General Purpose Motor, 3-phase Tefc 5 Hp, 3510 Rpm 184t | AA4JDD 12N891 00536ET3H184TC-W22575V AC1.255 hp60 HzTotally Enclosed Fan Cooled4.72A3485 RPMThree Phase€1,251.50
