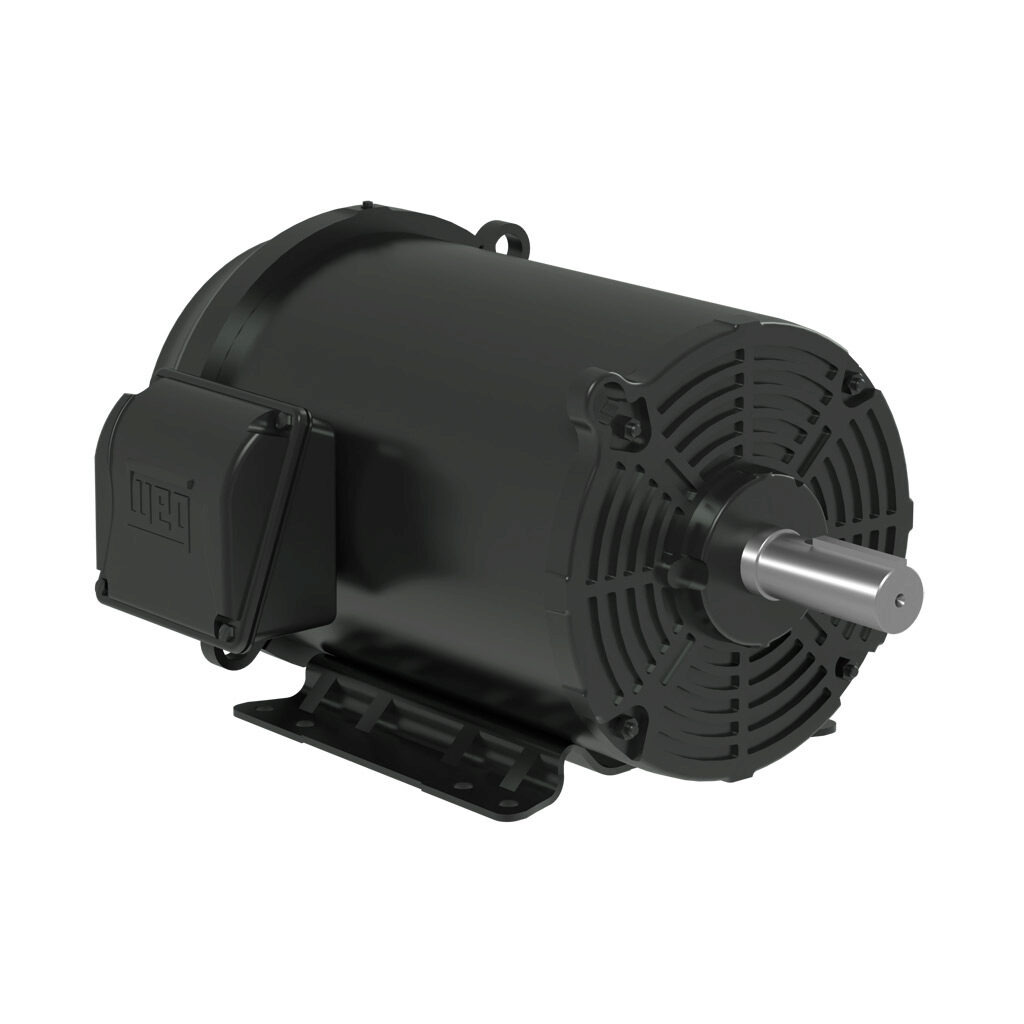

WEG 02036ET3E256T-S Electric Motor, 20Hp, 60Hz, 3600 Rpm | BB7FMF

WEG 02036ET3E256T-S 12636593 General Purpose Motor, TEAO/TEFC RolLED Steel 254/6T Frame, 15 HP, 2940 RPM, 415 V

Item: BB7FMFModel: 02036ET3E256T-SCross Ref: 12636593
Check Availability
In Stock

Get it by Tuesday, Aug 25

€3,385.80 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 22.7/45.4A , 45.4/22.7A
Balancing Method 1/2 Key , 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break Down Torque 290%
Cable Press Material Sem
Cold Locked Rotor Time 0 sec. , 21 sec.
Connection Cables Quantity 12
Constant Torque Rating 10:1
De Bearing Seal V Ring
Degree Of Protection IP55
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 91%
Efficiency 50% 81% , 90%
Efficiency 75% 91%
Efficiency @ 1 % 91%
Efficiency @ 100% 91%
Efficiency @ 75 % 88%
Efficiency Group Premium Efficiency
Electrically Reversible Yes
Enclosure IC411
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Without
Flange Type Without
Frame 254/6T
Frame Material Rolled Steel
Frequency 60 Hz
Grade Grade 1010/20
Grounding Lugs Superior
Grounding Lugs Type Superior
Hot Locked Rotor Time 12 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Integrated Brake No
Ip Rating IP55
L. R. Amps 150/300A , 165A , 300/150A
Locked Rotor Time (cold) 21 sec.
Locked Rotor Time(hot) 0 sec. , 12 sec.
Locked Rotor Torque 200%
Lrc 6.6X(Code G) , 8.7x(Code J)
Main Terminal Box Hole 1.732"
Main Terminal Box Hole Size 1.732"
Material Carbon Steel
Moment Of Inertia 1.22 lbs.-sq. ft.
Moment Of Inertia (j) 1.22 lbs.-sq. ft.
Motor Application General Purpose And Inverter Rated
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame 256T
Motor Speed 3515 RPM
Motor Type Induction
Mounting F-1 , Foot Mounted
Mounting Orientation Horizontal
Nameplate Speed 3515 RPM
Nde Bearing Seal No
Nema Design Design B
No Load Amps 13.8/6.88A , 6.88/13.8A
No. Of Phase 3
No. Of Poles 2
Noise Level 75 dBA
Output 20 hp
Output Rating 20 hp
Overload Protection No
Overload Protector Without Overload Protector
Overload Protector (phenolic) Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer
Phase 3
Power Factor 100% 0.91
Power Factor 50% 0.81
Power Factor 75% 0.88
Power Factor @ 1 % 91
Power Factor @ 50 % 90
Power Factor @ 75 % 91
Product Datasheet weg-02036et3e256t-s.pdf
Regreasing System At Drive End And Non Drive End , At Drive End And Non-Drive End
Resilient Base Without
Rotation CW, CCW
Screw Cap Carbon Steel
Series S Series
Service Factor 1.15
Shaft Dia. 1 5/8"
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Shaft Type Round With Square Key
Slip 2.36%
Speed 3400-3600 RPM , 3515 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 29.9 lbs.-ft.
Tropicalized Painting Without
Variable Torque Rating 1000:1
Voltage 190-220/230/380-415/460V , 208-230/460V AC , 230/460/190-220/380-415V AC , 230/460V AC , 415V
Voltage Type AC

Shipping Info:

Ship weight (kg) 102.15
Ship height (cm)77.98
Ship length (cm)115.06
Ship width (cm)85.09
Country of OriginBR
