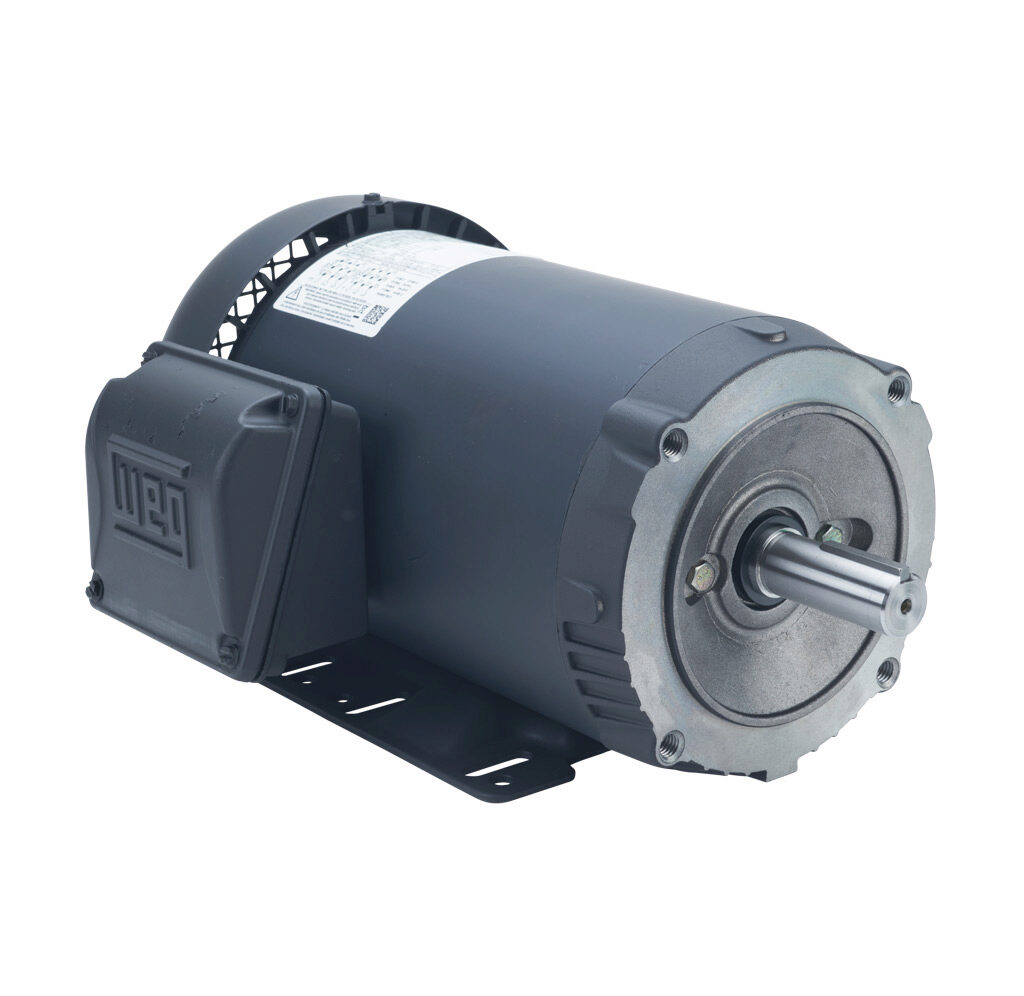

WEG 00218ET3E145TC-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BB4DLA

WEG 00218ET3E145TC-S 14802523 General Purpose Motor, 2 HP, 1800 RPM, 208/230/460 V, 3 Phase, TEFC, 143/5TC Frame, Footed

Item: BB4DLAModel: 00218ET3E145TC-SCross Ref: 14802523
Check Availability
In Stock

Get it by Thursday, Feb 19

€910.80 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 300%
Cold Locked Rotor Time 27 sec.
Composition Steel
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency 86.5%
Efficiency At 1 % 80%
Efficiency At 50 % 60%
Efficiency At 75 % 73%
Enclosure Type Tefc
Fan Cover Material Polymer
Fan Material Plastic
Frame 143/5TC
Frame Material Rolled Steel
Frame Size 145TC
Frequency 50/60 Hz
Grade Grade 1045
Grounding Lugs Single
Hot Locked Rotor Time 15 sec.
Hp 2 hp
Hz 60 Hz
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Ip Rating IP55
L. R. Amps 44.6/22.3A
Locked Rotor Torque 270%
Lrc 8.2X(Code K)
Main Terminal Box Hole Size 1.118"
Moment Of Inertia 0.1296 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1745 RPM
Motor Type Induction
Mounting Foot Mounted
Mounting Orientation Horizontal, Vertical
Nameplate Rpm 1745 RPM
No Load Amps 2.8/1.4A
No. Of Poles 4
Noise Level 52 dBA
Number Of Phases 3
Output 2 hp
Output Rating 2 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 86.5
Power Factor At 50 % 85.5
Power Factor At 75 % 87.5
Product Datasheet weg-00218et3e145tc-s.pdf
Rated Current 5.44/2.72A
Rated Torque 6.02 lbs.-ft.
Rated Voltage 230/460V AC
Resilient Base Without
Rotation Clockwise/Counter Clockwise
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Diameter 7/8"
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.06%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 21.15
Ship height (cm)48.26
Ship length (cm)48.26
Ship width (cm)45.72
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelService FactorFrequencyHpFull Load AmpsNameplate RpmMotor TypeMounting TypeRpmPrice
WEG 00158ET3W90L-W22 Metric Motor, Shielded 460v 60 Hz Cw / Ccw | AA2GCZ 10G858 00158ET3W90L-W22150 Hz2 hp2.8A1755 RPM-Rigid Base1700-1800 RPM€914.46
WEG 00218ET3W100L-W22 Metric Motor, 460v 60 Hz Shielded Cw / Ccw | AA2GDF 10G864 00218ET3W100L-W22160 Hz3 hp4.1A1750 RPM-Rigid Base1700-1800 RPM€1,095.12
WEG 00418ET3Y112M-W22 Metric Motor, 5-1/2Hp, 230/460v Cw / Ccw | AA2GDP 10G872 00418ET3Y112M-W22150 Hz5 1/2 hp7.3A1755 RPM-Rigid Base1700-1800 RPM€1,177.86
WEG 00518ET3Y132S-W22 Metric Motor, 7-1/2Hp, 230/460v Cw / Ccw | AA2GDU 10G876 00518ET3Y132S-W22160 Hz7 1/2 hp9.1A1775 RPM-Rigid Base1700-1800 RPM€1,613.01
WEG 00718ET3Y132M-W22 Metric Motor, 10Hp, 230/460v Cw / Ccw | AA2GEA 10G882 00718ET3Y132M-W22150 Hz10 hp12.2A1770 RPM-Rigid Base1700-1800 RPM€1,918.09
WEG 01818ET3Y180MFF-W22 Metric Motor, 25Hp, 230/460V, Cw / Ccw | AA2GEM 10G893 01818ET3Y180MFF-W221.2550/60 Hz25 hp30.6A1775 RPM-Face/Base1700-1800 RPM€4,486.20
WEG 02218ET3Y180LFF-W22 Metric Motor, 30Hp, 230/460v Cw / Ccw | AA2GET 10G898 02218ET3Y180LFF-W221.2550/60 Hz30 hp36A1775 RPM-Face/Base1700-1800 RPM€5,926.53
