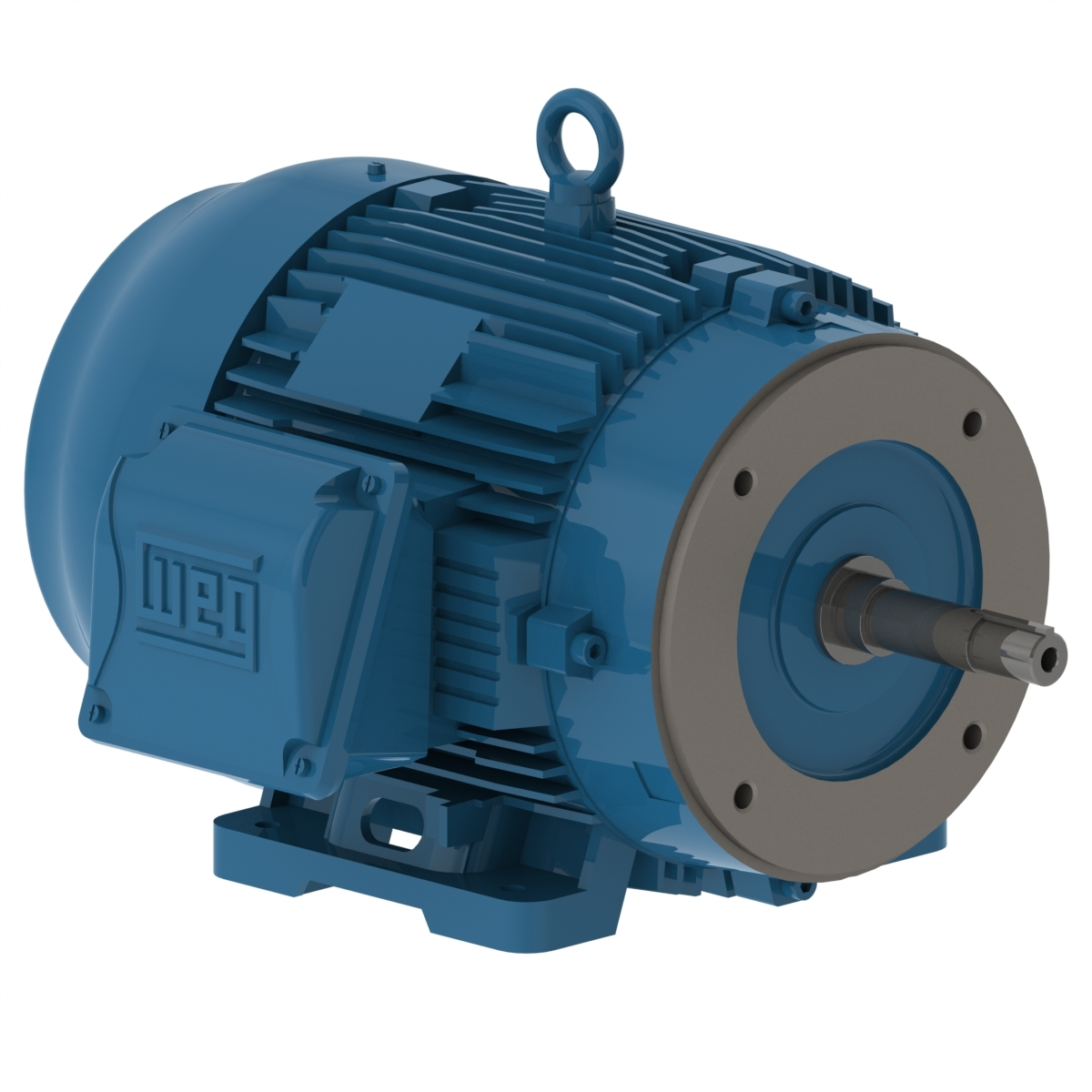

WEG 01018ET3H215JM-W22 12102741 Pump Motor, 10 HP, 1800 RPM, 575V, 4.64 A No Load Current, TEFC, 215JM, Footed, Close Coupled Pump
1800 rpm
10 hp
215JM
Get it by Wednesday, Aug 19
€2,071.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Cold Locked Rotor Time | 30 sec. |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Duty Cycle | S1 |
| Efficiency @ 100% | 91.7% |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Frame Material | Cast Iron |
| Frame Size | 213/5JM |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Insulation Class | Class F |
| Item | 478227 |
| L. R. Amps | 64.9A |
| Locked Rotor Time(hot) | 17 sec. |
| Lrc | 6.4x(Code H) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Nde Bearing Seal | V Ring |
| No. Of Poles | 4 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Product Datasheet | weg-01018et3h215jm-w22.pdf |
| Rotation | CW, CCW |
| Service Factor | 1.25 |
| Shaft Material | Carbon Steel |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Tropicalized Painting | Without |
| Voltage | 575V |
Shipping Info:
| Ship weight (kg) | 79.65 |
Documentation:
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
