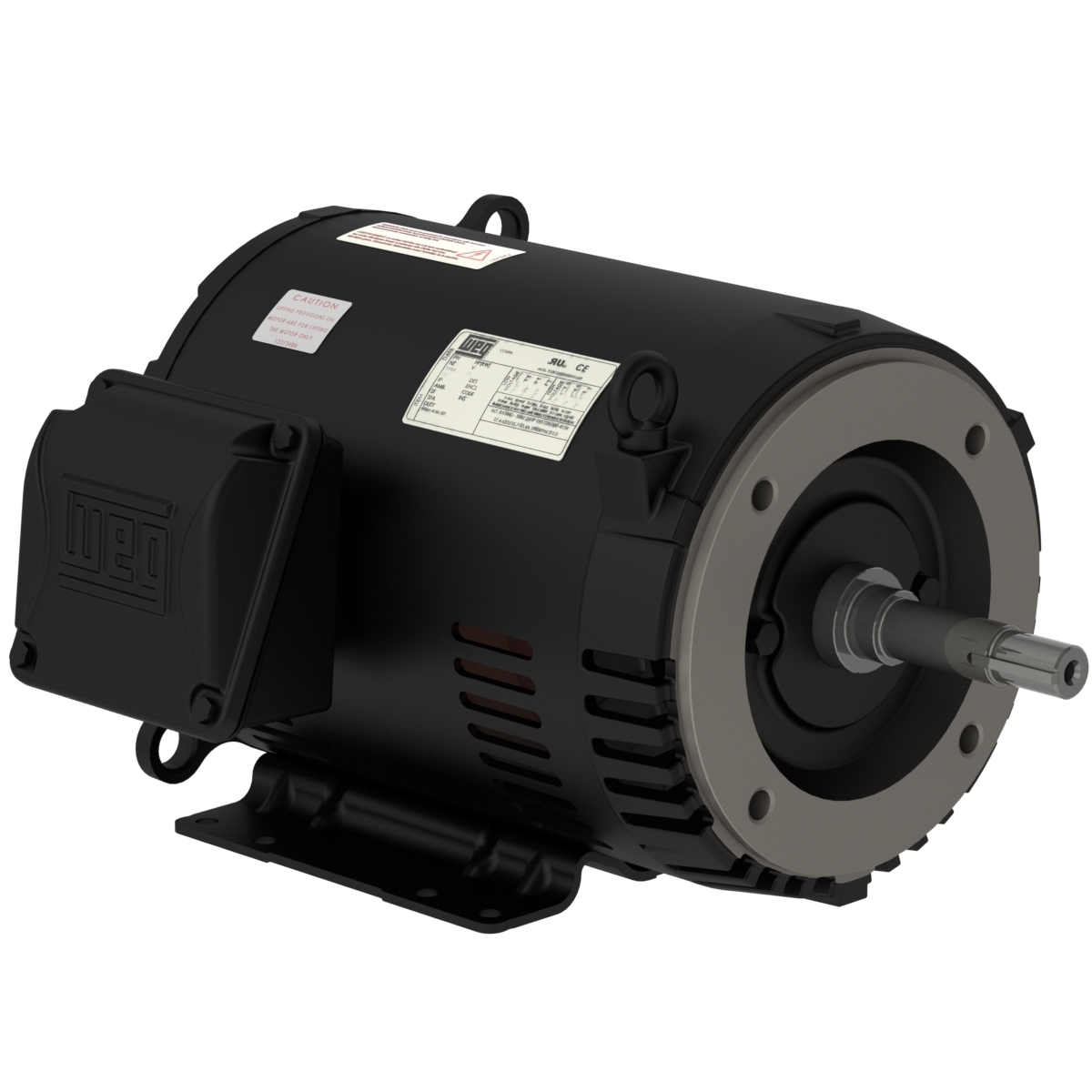

WEG 01518OT3E254JM-SG 12687687 Pump Motor, 15 HP, 4 Poles, 254/6JM Frame, 3 Phase, 230/460//190-220/380-415 V, 60 Hz, IC01-ODP, Foot Mounted
Get it by Wednesday, Aug 19
€2,629.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Application | Closed Coupled |
| Body Design Material | Rolled Steel |
| Ct Speed Range | 5:1 |
| Efficiency | 93% |
| Enclosure Iec | IP21 |
| Enclosure Nema | Odp |
| Frame | 256JM |
| Frame Size Nema | NEMA 254/6jm |
| Frequency | 50/60 Hz |
| Hp | 15 hp |
| Inverter Rating | Inverter Ready |
| Mount Arrangement | F1 |
| Output Speed | 1775/1465 RPM |
| Product Datasheet | weg-01518ot3e254jm-sg.pdf |
| Service Factor | 1.15 |
| Shaft Grounded Sgr | Yes |
| Voltage | 460V |
| Vt Speed Range | 1000:1 |
Shipping Info:
| Ship weight (kg) | 91.35 |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Duty Cycle | No. Of Poles | Synchronous Speed | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
02018OT3E256T-SG | 230/460V AC | 60 Hz | 1.15 | - | S1 | 4 | 1800 RPM | 22.9/11.4A | €3,401.96 | |
|
00718OT3E213T-SG | 230/460V AC | 60 Hz | 1.15 | 7 1/2 hp | S1 | 4 | 1800 RPM | 8.79/4.39A | €2,028.52 | |
|
01518OT3E254T-SG | 230/460V AC | 60 Hz | 1.15 | - | S1 | 4 | 1800 RPM | 19/9.5A | €2,830.11 | |
 |
00336OT3E145T-SG | 230/460V AC | 60 Hz | 1.15 | - | S1 | 2 | 3600 RPM | 2.6/1.3A | €817.25 | |
 |
02036OT3E254JM-SG | 230/460V AC | 60 Hz | 1.15 | 20 hp | S1 | 2 | 3600 RPM | 17/8.5A | €2,759.44 | |
|
00518OT3E184T-SG | 230/460V AC | 60 Hz | 1.15 | 5 hp | Continuous | 4 | 1800 RPM | 6.29/3.15A | €1,288.60 | |
|
01018OT3E215T-SG | 230/460V AC | 60 Hz | 1.15 | 10 hp | S1 | 4 | 1800 RPM | 12/5.99A | €2,097.23 |
