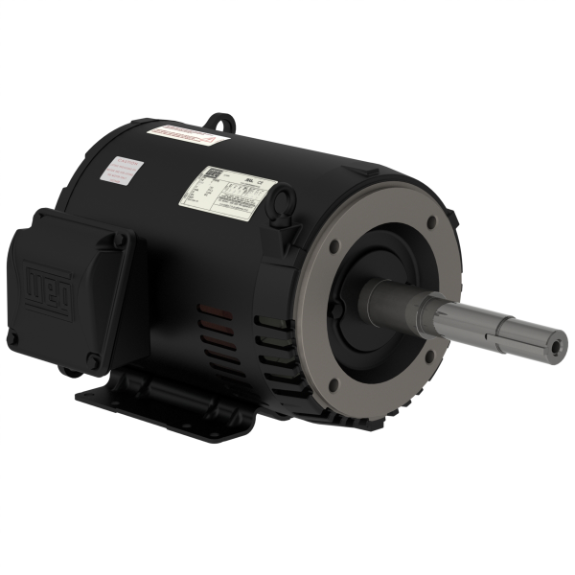

WEG 01036OT3E213JP-SG 14243692 Pump Motor, 10 HP, 3600 RPM, 208/230/460 V, 3 Phase, ODP, 213/5JP Frame, Footed, Close Coupled Pump with Internal Aegis Shaft Grounding Rings
10 hp
215JP
3600 rpm
Get it by Tuesday, Aug 25
€1,776.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 24/12A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 280% |
| Cold Locked Rotor Time | 19 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency 50% | 74% |
| Efficiency @ 1 % | 88% |
| Efficiency @ 75 % | 84% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | C |
| Frame | 213/5JP |
| Frame Material | Rolled Steel |
| Frame Size | 213JP |
| Frequency | 50/60 Hz , 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 11 sec. |
| Hp | 10 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 163/81.6A |
| Locked Rotor Torque | 200% |
| Lrc | 6.8X(Code H) |
| Main Terminal Box Hole Size | 1.377" |
| Moment Of Inertia | 0.4651 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3535 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 9.32/4.66A |
| No. Of Poles | 2 |
| Noise Level | 66 dBA |
| Output | 10 hp |
| Output Rating | 10 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 88.5 |
| Power Factor @ 75 % | 89.5 |
| Product Datasheet | weg-01036ot3e213jp-sg.pdf |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.81% |
| Speed | 3400-3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 14.9 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460V , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 57.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 55.8 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Hp | Duty Cycle | No. Of Poles | Synchronous Speed | No Load Amps | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
01018OT3E215JP-SG | 230/460V AC | 60 Hz | - | S1 | 4 | 1800 RPM | 12/5.99A | Foot Mounted | €1,821.66 | |
 |
00318OT3E182JP-SG | 230/460V AC | 60 Hz | - | S1 | 4 | 1800 RPM | 4.14/2.07A | Foot Mounted | €996.23 | |
|
00718OT3E213JP-SG | 230/460V AC | 60 Hz | - | S1 | 4 | 1800 RPM | 8.79/4.39A | Foot Mounted | €1,574.86 | |
 |
00236OT3E145JP-SG | 230/460V AC | 60 Hz | - | S1 | 2 | 3600 RPM | 1.83/0.917A | Foot Mounted | €859.01 | |
 |
01536OT3E215JP-SG | 230/460V AC | 50/60 Hz | - | S1 | 2 | 3600 RPM | 12.3/6.17A | Foot Mounted | €2,218.32 | |
|
00536OT3E182JP-SG | 230/460V AC | 60 Hz | - | S1 | 2 | 3600 RPM | 5.15/2.58A | Foot Mounted | €1,074.48 | |
|
01018OT3V215JP-SG | 200/400V AC | 60 Hz | - | S1 | 4 | 1800 RPM | 13.8/6.89A | Foot Mounted | €1,821.66 |
