WEG 02018OT3E256JP-SG Electric Motor, 20Hp, 60Hz, 1800 Rpm | BB9QUN

WEG 02018OT3E256JP-SG 14327825 Electric Motor, 20Hp, 60Hz, 1800 Rpm

Item: BB9QUNModel: 02018OT3E256JP-SGCross Ref: 14327825
Check Availability
In Stock

Get it by Friday, Dec 19

€3,113.16 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 290%
Cold Locked Rotor Time 27 sec.
Connection Cables Quantity 12
Design B
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 81%
Efficiency At 50 % 63%
Efficiency At 75 % 74%
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange Type C
Frame 254/6JP
Frame Material Rolled Steel
Frame Size 254/6JP
Frequency 60 Hz
Grounding Lugs Superior
Hot Locked Rotor Time 15 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 315/158A
Locked Rotor Torque 240%
Lrc 6.3X(Code G)
Main Terminal Box Hole Size 1.732"
Moment Of Inertia 2.23 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 1770 RPM
Mounting Foot Mounted
No Load Amps 22.9/11.4A
No. Of Poles 4
Noise Level 64 dBA
Output 20 hp
Output Rating 20 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 93
Power Factor At 50 % 92.4
Power Factor At 75 % 92.4
Rated Current 50/25A
Rated Torque 59.3 lbs.-ft.
Rated Voltage 230/460V AC
Regreasing System At Drive End And Non Drive End
Resilient Base Without
Rotation CW/CCW
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 1.67%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 96.25
Ship height (cm)2.54
Ship length (cm)63.09
Ship width (cm)2.54

Product Variants

ProductModelVoltageFrequencyHpDuty CycleNo. Of PolesSynchronous SpeedNo Load AmpsMountingPrice

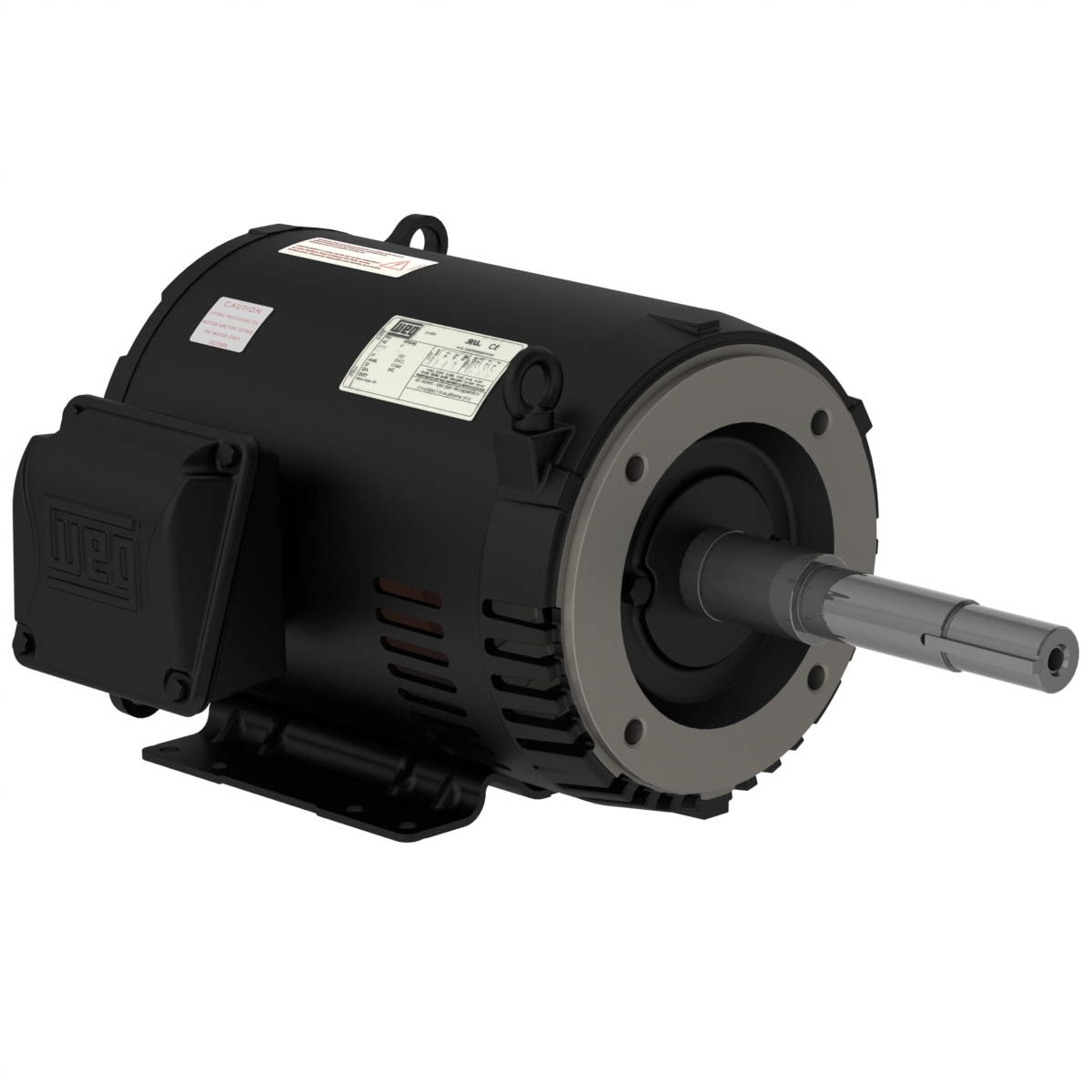

WEG 01018OT3E215JP-SG Electric Motor, 10Hp, 60Hz, 1800 Rpm | BB8DBR 01018OT3E215JP-SG230/460/190-220/380-415V AC50/60 Hz-S141800 RPM12/5.99AFoot Mounted€1,821.66
WEG 00318OT3E182JP-SG Electric Motor, 3Hp, 60Hz, 1800 Rpm | BB8MDL 00318OT3E182JP-SG230/460/190-220/380-415V AC60 Hz-S141800 RPM4.14/2.07AFoot Mounted€996.23
WEG 00718OT3E213JP-SG Electric Motor, 7 1/2Hp, 60Hz, 1800 Rpm | BB8QLP 00718OT3E213JP-SG230/460/190-220/380-415V AC60 Hz-S141800 RPM8.79/4.39AFoot Mounted€1,574.86
WEG 00236OT3E145JP-SG Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB8TUE 00236OT3E145JP-SG230/460/190-220/380-415V AC50/60 Hz-S123600 RPM1.83/0.917AFoot Mounted€859.01
WEG 01536OT3E215JP-SG Electric Motor, 15Hp, 60Hz, 3600 Rpm | BB8TWC 01536OT3E215JP-SG230/460/190-220/380-415V AC50/60 Hz-S123600 RPM12.3/6.17AFoot Mounted€2,218.32
WEG 00536OT3E182JP-SG Electric Motor, 5Hp, 60Hz, 3600 Rpm | BB8VCW 00536OT3E182JP-SG230/460/190-220/380-415V AC60 Hz-S123600 RPM5.15/2.58AFoot Mounted€1,074.48
WEG 01018OT3V215JP-SG Electric Motor, 10Hp, 60Hz, 1800 Rpm | BB8VEN 01018OT3V215JP-SG200/400V AC60 Hz-S141800 RPM13.8/6.89AFoot Mounted€1,821.66
