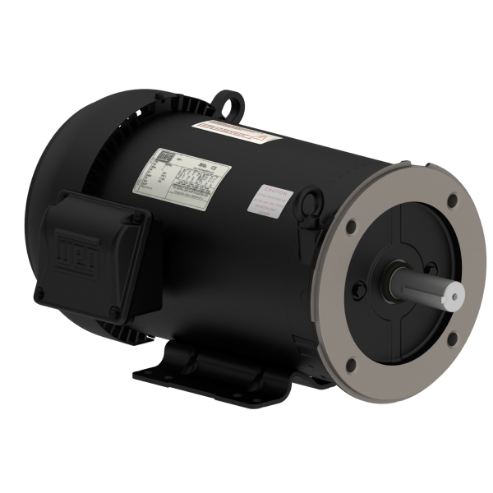

WEG 00536ET3E184TC-S Electric Motor, 5Hp, 60Hz, 3600 Rpm | BB6VFY

WEG 00536ET3E184TC-S 12675353 Electric Motor, 5Hp, 60Hz, 3600 Rpm

Item: BB6VFYModel: 00536ET3E184TC-SCross Ref: 12675353
Check Availability
In Stock

Get it by Monday, Dec 22

€946.10 /unit
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 300%
Cold Locked Rotor Time 30 sec.
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency At 1 % 89%
Efficiency At 50 % 76%
Efficiency At 75 % 85%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type C
Frame 182/4TC
Frame Material Rolled Steel
Frame Size 184TC
Frequency 50/60 Hz
Grounding Lugs Single
Horsepower 5 hp
Hot Locked Rotor Time 17 sec.
Hz 60 Hz
Impregnation Method Dip And Bake Polyester
L. R. Amps 92/46A
Locked Rotor Torque 220%
Lrc 7.8X(Code J)
Main Terminal Box Hole Size 1.118"
Moment Of Inertia 0.2079 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3500 RPM
Mounting Foot Mounted
No Load Amps 4.4/2.2A
No. Of Poles 2
Noise Level 68 dBA
Output 5 hp
Output Rating 5 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 88.5
Power Factor At 50 % 87.5
Power Factor At 75 % 88.5
Rated Current 11.8/5.9A
Rated Torque 7.5 lbs.-ft.
Rated Voltage 230/460V AC
Resilient Base Without
Rotation Clockwise/Counter Clockwise
Rpm 3400-3600 RPM
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460V

Shipping Info:

Ship weight (kg) 44.1
Ship height (cm)48.26
Ship length (cm)48.26
Ship width (cm)45.72
Country of OriginUS

Product Variants

ProductModelVoltageFrequencyService FactorFull Load AmpsHpNameplate RpmMotor TypeMounting TypePrice
WEG 00118ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1 Hp, 1765 Rpm 143tc | AA4JCW 12N884 00118ET3H143TC-W22575V AC60 Hz1.251.18A1 hp1760 RPMThree PhaseRigid Base€772.12
WEG 00156ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 3495 Rpm 143tc | AA4JCX 12N885 00156ET3H143TC-W22575V AC60 Hz1.251.57A1 1/2 hp3480 RPMThree PhaseRigid Base€840.81
WEG 00158ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 1760 Rpm 145tc | AA4JCY 12N886 00158ET3H145TC-W22575V AC60 Hz1.251.62A1 1/2 hp1755 RPMThree PhaseRigid Base€768.36
WEG 00236ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 2 Hp, 3490 Rpm 145tc | AA4JCZ 12N887 00236ET3H145TC-W22575V AC60 Hz1.252.05A2 hp3475 RPMThree PhaseRigid Base€853.67
WEG 00218ET3H145TC-W22 General Purpose Motor, 3-Phase, TEFC, 2 hp, 1755 rpm | AA4JDA 12N888 00218ET3H145TC-W22575V AC60 Hz1.252.21A2 hp1755 RPMThree PhaseRigid Base€841.96
WEG 00336ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 3510 Rpm 182tc | AA4JDB 12N889 00336ET3H182TC-W22575V60 Hz12.9A3 hp3515 RPMThree PhaseRigid Base€1,055.20
WEG 00318ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 1760 Rpm 182tc | AA4JDC 12N890 00318ET3H182TC-W22575V AC60 Hz1.253.1A3 hp1760 RPMThree PhaseRigid Base€954.68
